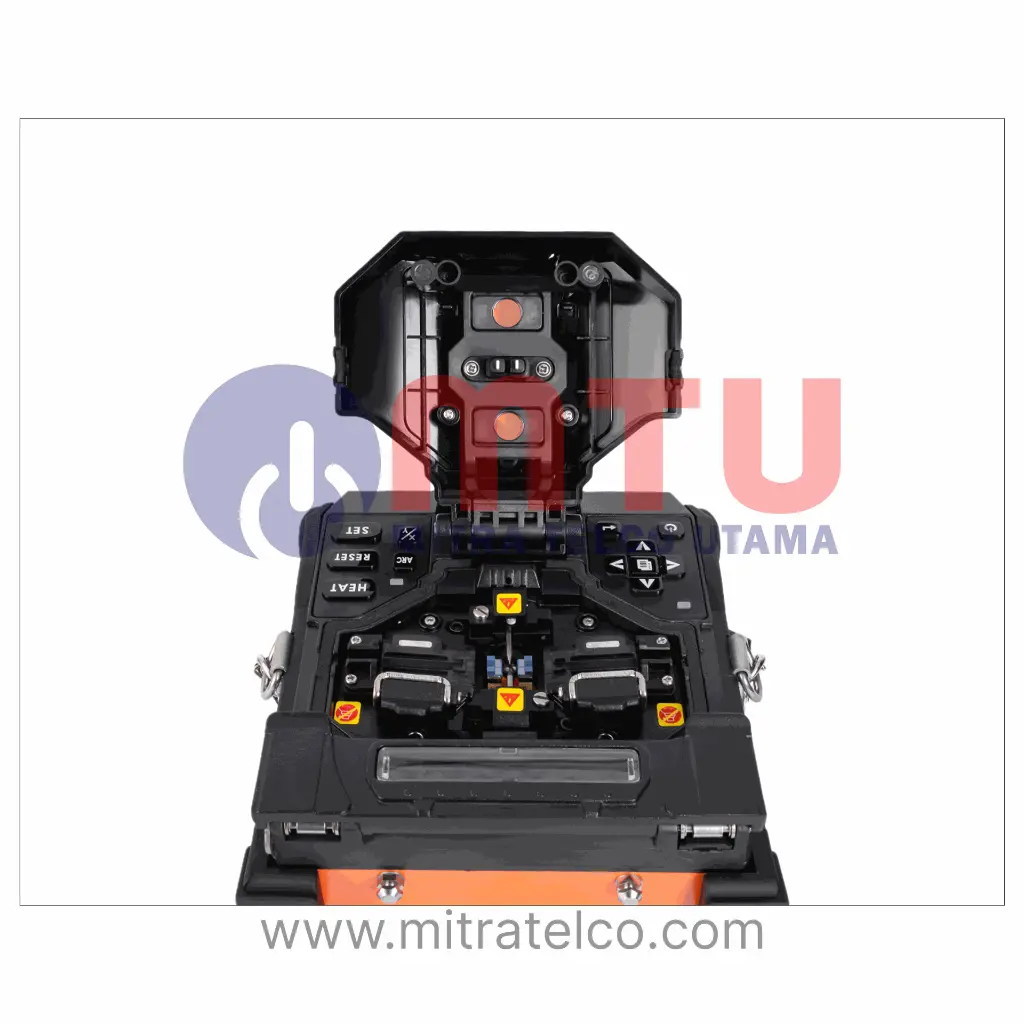

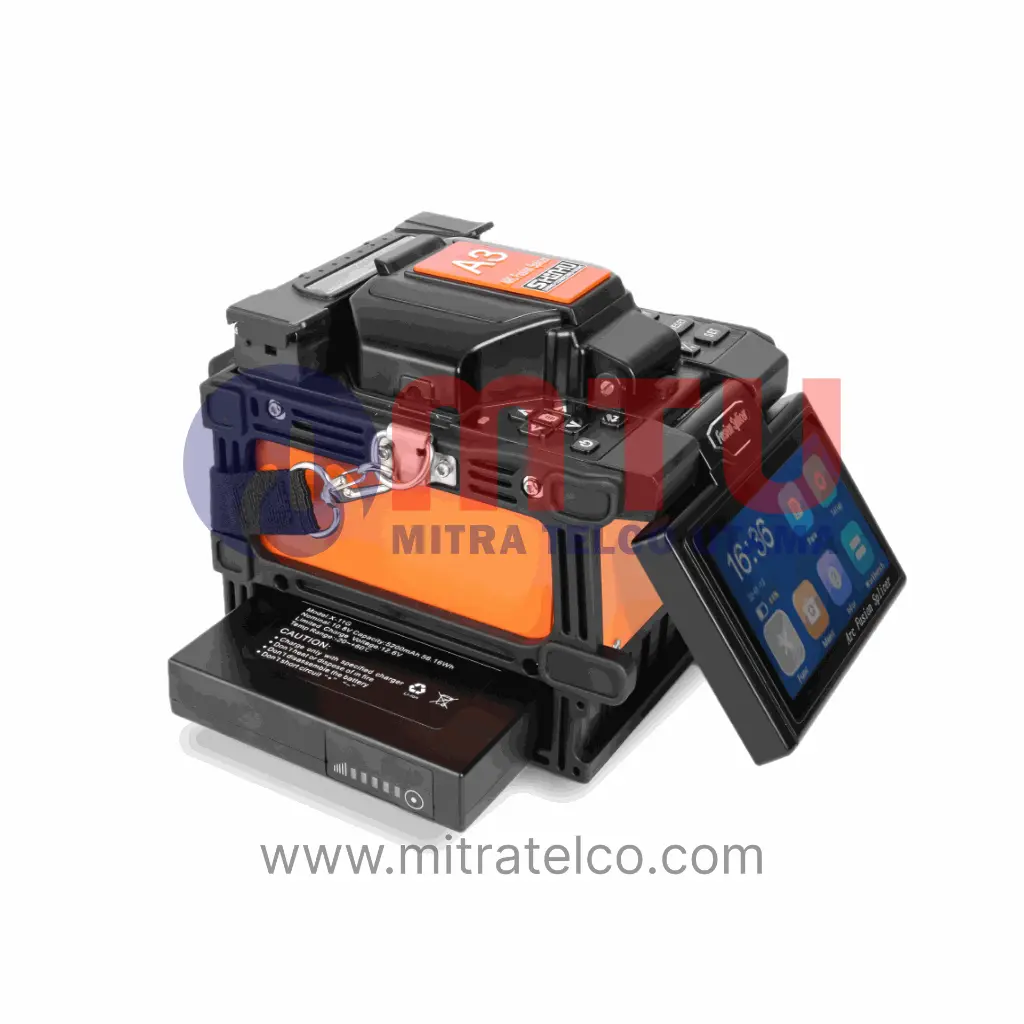

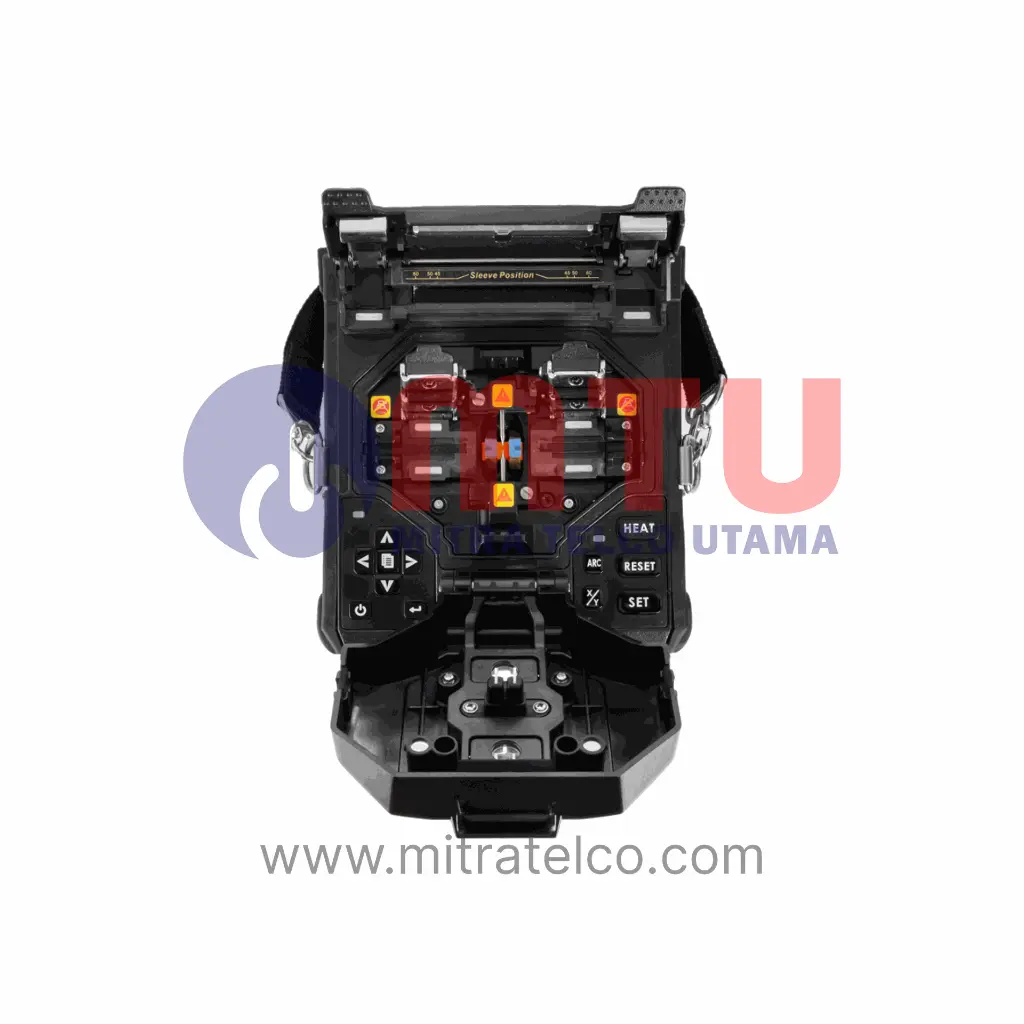

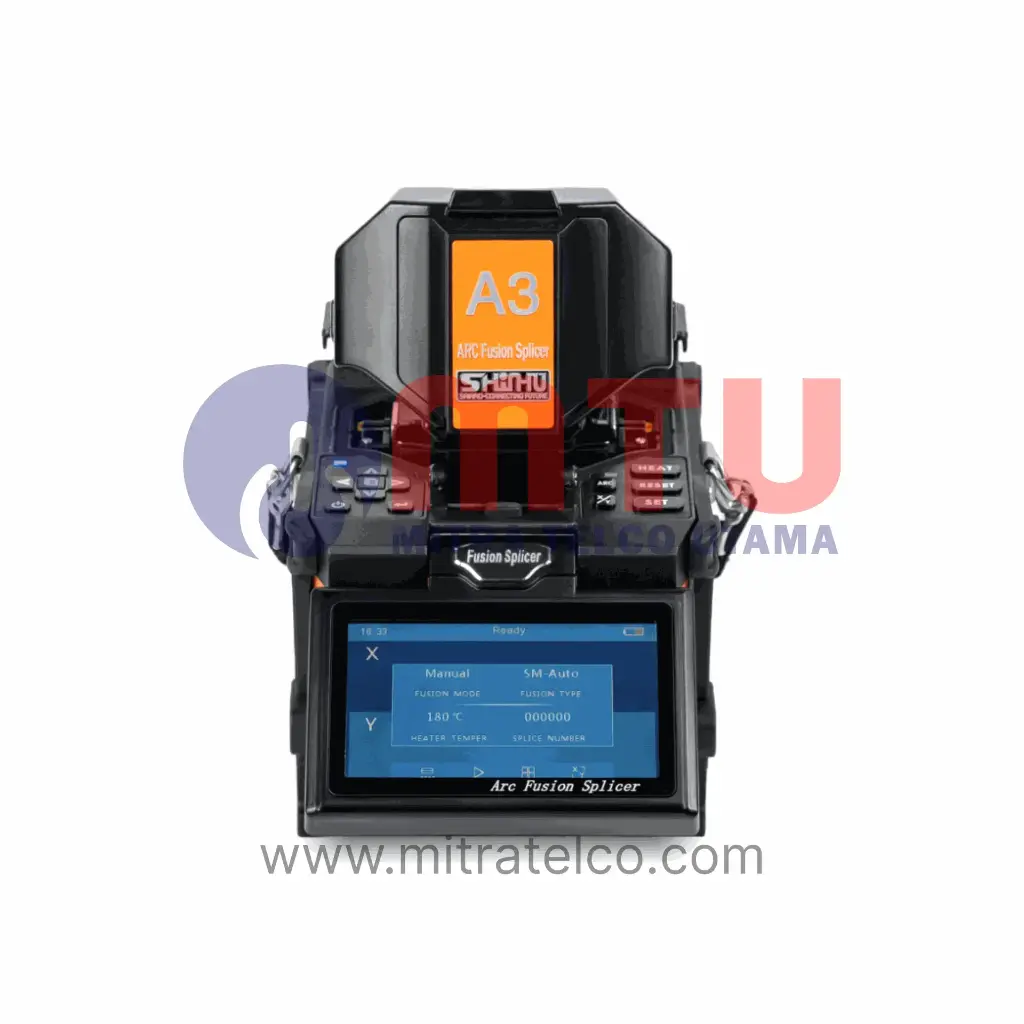

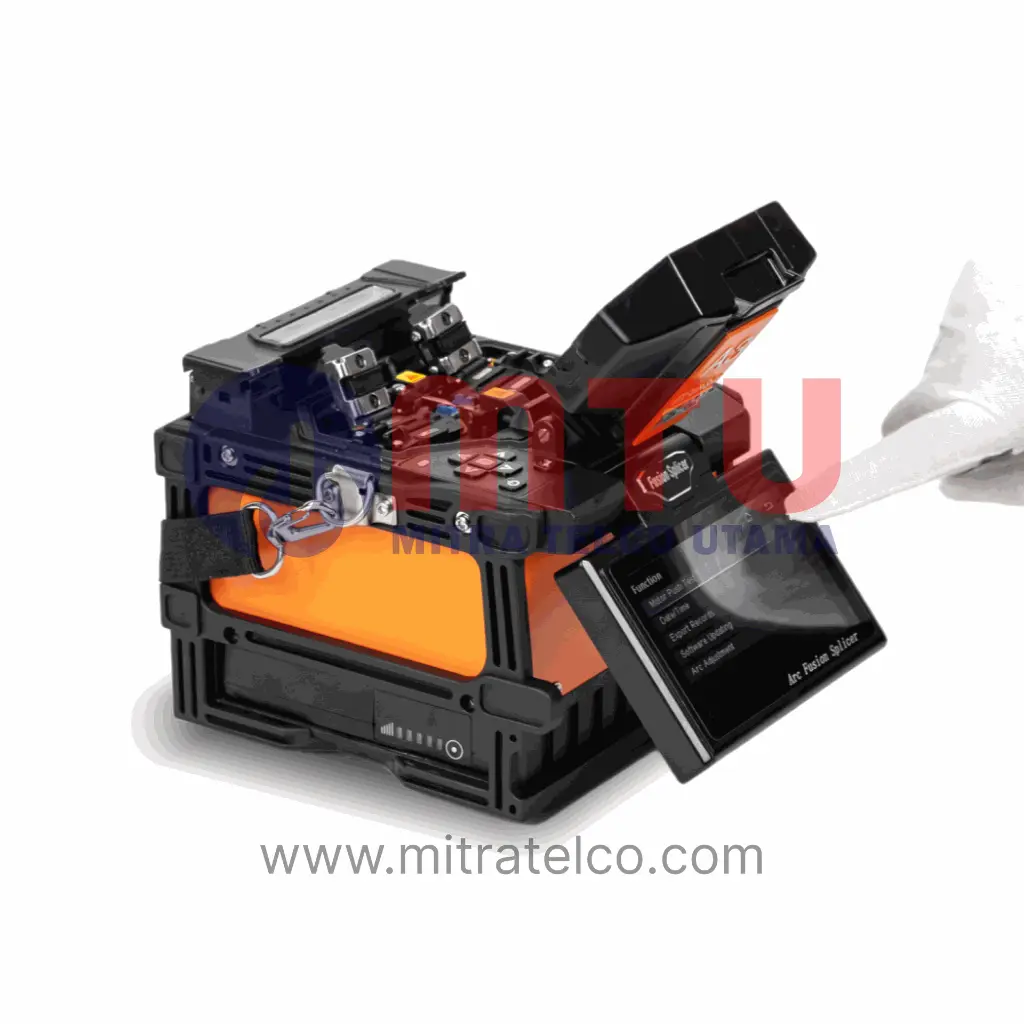

Shinho Fiber Fusion Splicer A3

Specifications

• Applicable Fibers: SM (G.652), MM (G.651), DS (G.653), NZDS (G.655)
• Cladding Diameter: 80–150 μm
• Coating Diameter: 160–3000 μm
• Cleaved Length: 5–16 mm (<250 μm coating), 16 mm (250–1000 μm coating)
• Typical Splice Loss: SM: 0.02 dB; MM: 0.01 dB; DS: 0.04 dB; NZDS: 0.04 dB
• Return Loss: >60 dB
• Splicing Programs: 40 groups
• Operation Modes: Manual / Automatic
• Auto Heating: Yes
• Typical Splice Time: 7 seconds
• Typical Heating Time: 26 seconds (40 mm & 60 mm sleeves)
• Fiber Magnification: 320× (X or Y view), 160× (X and Y view)

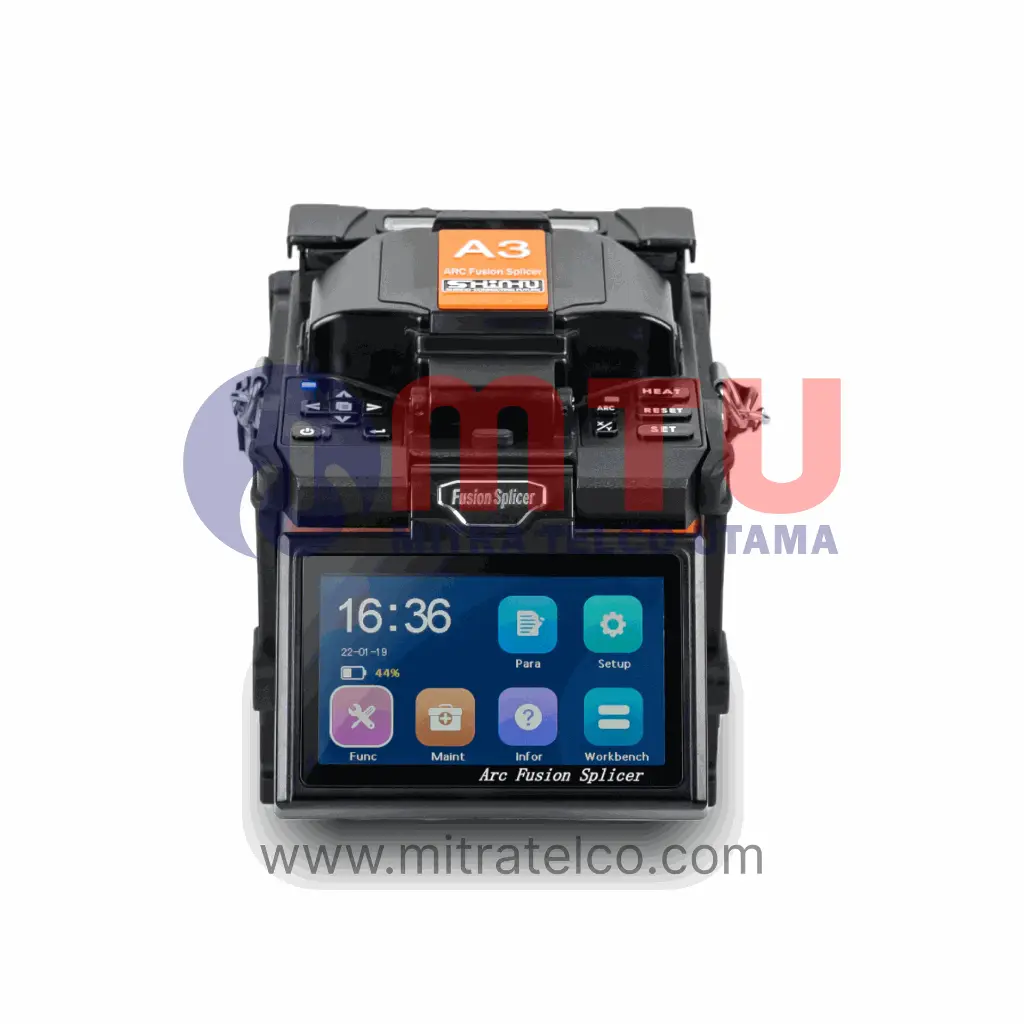

• Display: Dual high-sensitivity camera, 4.3" LCD touch screen
• Data Storage: 8000 splice records
• Tension Test: 1.8–2.25 N
• Battery: 5200 mAh, up to 250 splice/heat cycles per charge
• Electrode Life: >4000 ARC discharges
• Interface: USB 2.0 for software upgrades and data export
• Operating Conditions: –10°C to +50°C, up to 5000 m altitude, ≤15 m/s wind
• Dimensions/Weight: 149×120×127 mm / 1.9 kg (with battery)

Applications:

• FTTx / FTTH deployment
• CATV network installation
• Field fiber optic maintenance

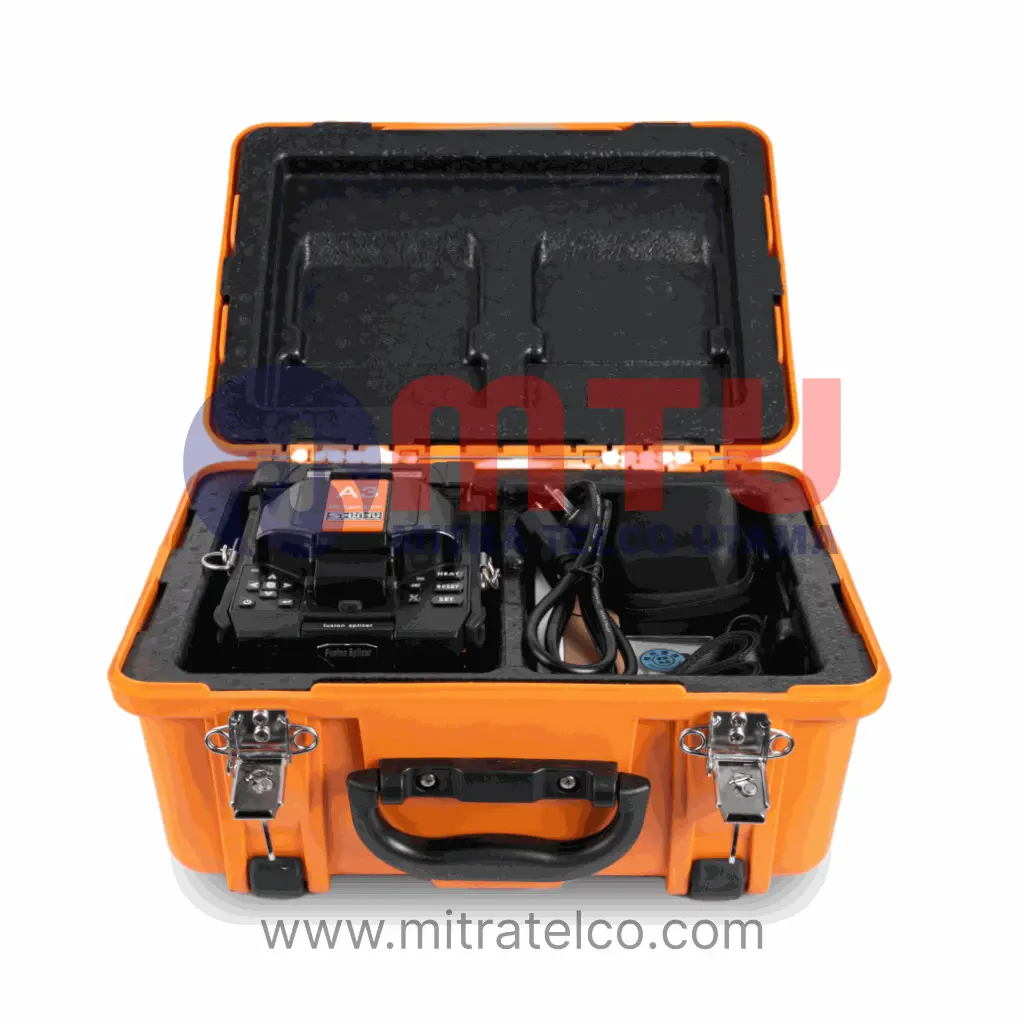

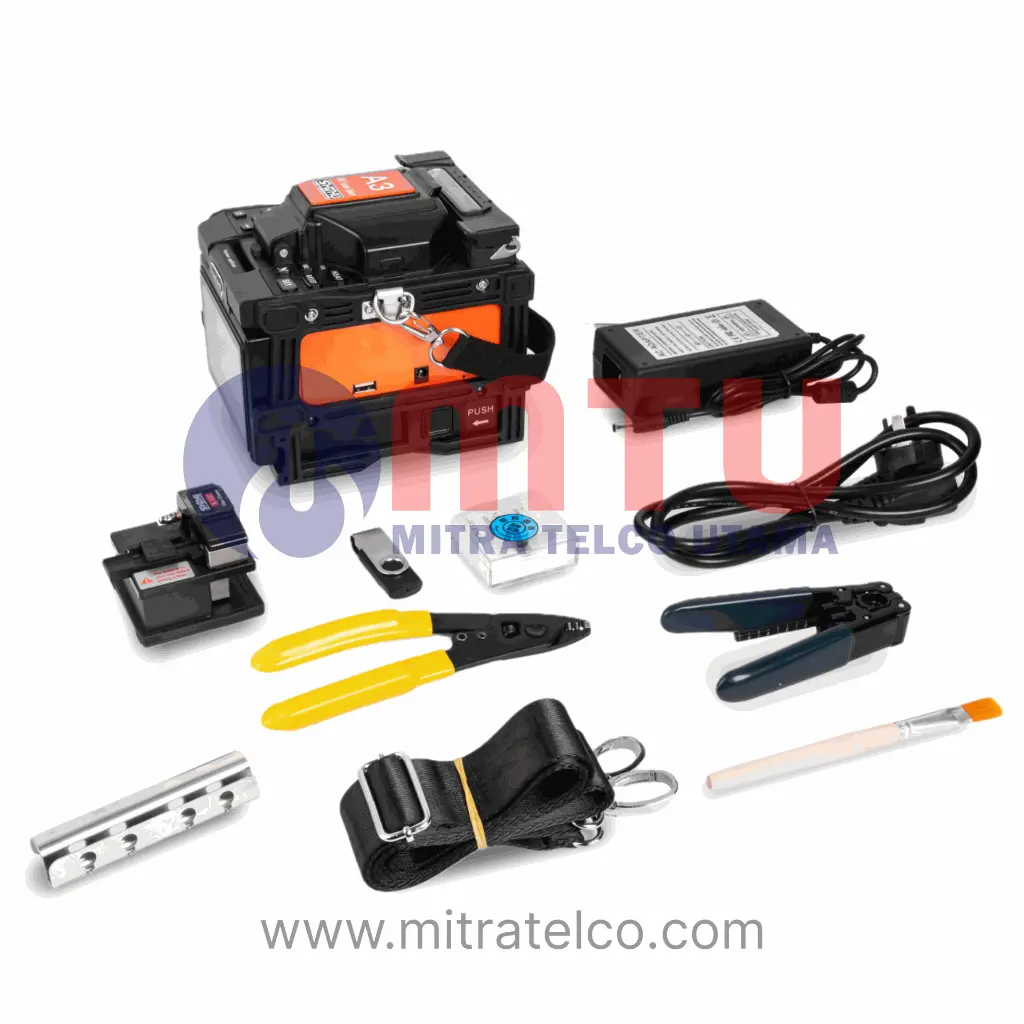

Packing List

1. Fusion Splicer A3
2. Fiber Cleaver
3. Fiber Stripper
4. Cooling Tray
5. Spare Electrodes
6. Stripper
7. Carrying Box
8. Power Adapter
9. Power Plug
10. User Manual
11. Strap
12. Cleaning Brush

Resources

 Shinho Fiber Fusion Splicer A3 Datasheet
