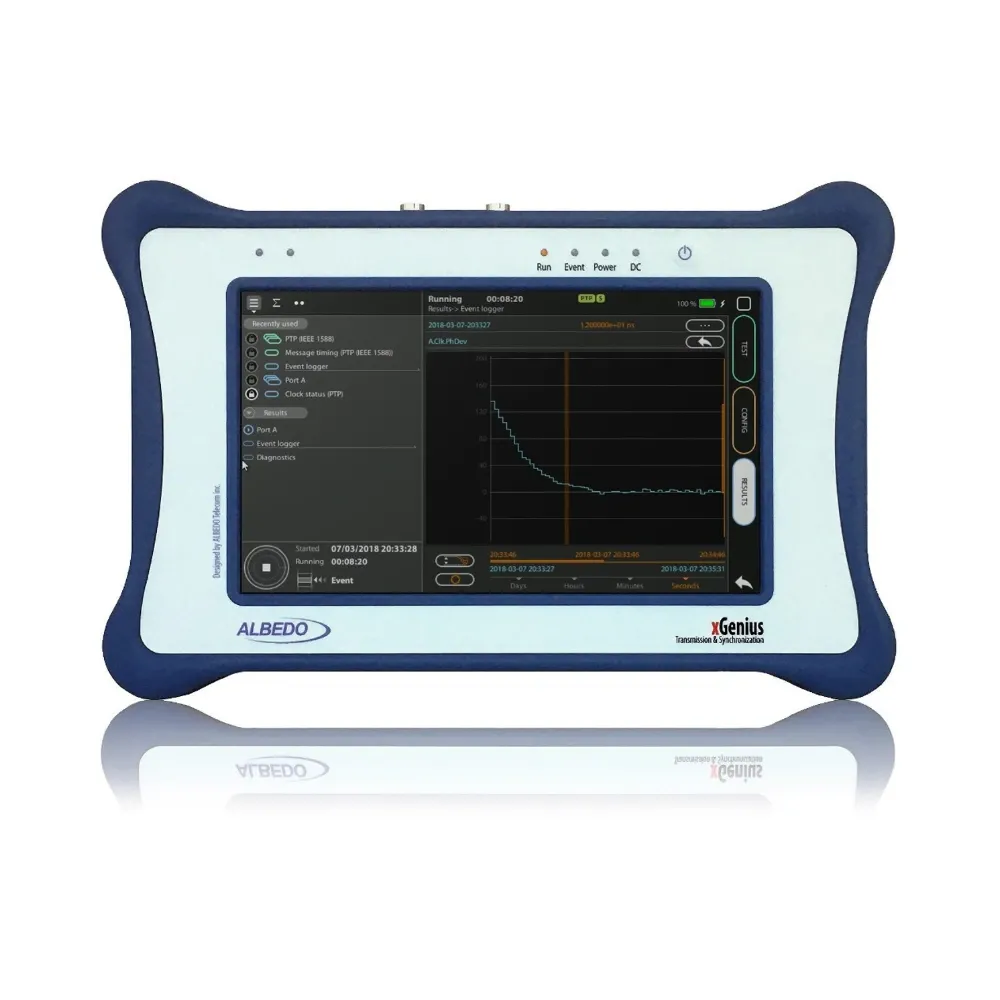

Albedo Telecom Multi-Technology Transmission and Synchronization Tester XGENIUS

The ALBEDO Telecom xGenius is a multi-technology transmission and synchronization tester designed for testing and analysis across Ethernet, IP, E1/T1, IEEE C37.94, G.703 E0, Data Communications, Voice Frequency, and clock synchronization interfaces. It supports traffic generation and analysis up to 10 Gb/s, Layer 1–4 BER testing, Ethernet service testing, protocol analysis, latency measurement, and synchronization testing for applications including 4G/5G telecom, power substations, broadcast, financial networks, and air traffic control infrastructures.

The xGenius provides dual SFP/SFP+ and RJ-45 Ethernet interfaces, extensive clock reference connectivity, and optional GNSS synchronization. It supports RFC 2544, ITU-T Y.1564, RFC 6349, IEEE 1588/PTP, NTP, SyncE, and IEC 61850 GOOSE/SV testing, together with E1/T1 analysis, jitter and wander measurement, protocol capture, and service disruption testing. The platform can be configured with optional modules and synchronization references, including OCXO and Rubidium oscillators.

Rp 0.00 Rp 0.00

Add to cart Buy now
Get a Quote ⟩
SpecificationsResources

Specifications

  • Product Type: Multi-Technology Transmission and Synchronization Tester.
  • Ethernet Test Rate: Up to 10 Gb/s.
  • Ethernet Interfaces: Dual SFP/SFP+ and dual 10/100/1000BASE-T RJ-45 interfaces.
  • Supported Optical Ethernet: 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-T, 1000BASE-SX/LX/ZX/BX, and 100BASE-FX.
  • Supported Electrical Ethernet: 10BASE-T, 100BASE-TX, and 1000BASE-T.
  • Ethernet Testing: Traffic generation, throughput, frame loss, latency, QoS, BER, RFC 2544, ITU-T Y.1564, and RFC 6349.
  • Traffic Generation: Up to 8 independent streams with continuous, periodic burst, ramp, and random bandwidth profiles.
  • BER Testing: Layer 1–4 BER testing with PRBS patterns including PRBS11, PRBS15, PRBS20, PRBS23, and PRBS31.
  • Protocol Analysis: Ethernet/IP traffic capture with hardware timestamping and PCAP/PCAPNG export.
  • Capture Buffer: 256 MB with wrap-around support.
  • Timestamp Resolution: 1 ns hardware timestamping.
  • PTP / IEEE 1588: Master/slave emulation, Sync Analyzer, Boundary Clock, Transparent Clock, Slave Clock, and Dual Slave testing.
  • NTP: NTPv3/NTPv4 client and server emulation with delay, asymmetry, jitter, and Time Error analysis.
  • Synchronous Ethernet: SyncE generation and analysis with frequency offset, drift, TIE, MTIE, TDEV, and ESMC/SSM analysis.
  • E1 Testing: ITU-T G.703/G.704 E1 generation and analysis at 2048 kb/s, including G.821, G.826, and M.2100 performance analysis.
  • T1 Testing: ANSI T1.102/T1.403 T1 generation and analysis at 1544 kb/s, including G.821, G.826, and M.2100 performance analysis.
  • IEEE C37.94: Dual-port generation and analysis with configurable rates from 64 kb/s to 768 kb/s.
  • G.703 E0: Co-directional, contra-directional, and centralized interfaces from 48 to 256 kb/s.
  • Jitter Analysis: 0.1 Hz to 100 kHz modulation frequency range with measurement accuracy better than ITU-T O.172.
  • Wander Analysis: 1 µHz to 10 Hz modulation frequency range; TIE, MTIE, and TDEV analysis with 100 ps MTIE/TDEV resolution.
  • Voice Frequency Testing: 2 Hz to 4000 Hz, with signal level measurement from −60 dBm to +3 dBm.
  • GNSS Input: SMA connector; optional single-band or multi-band GNSS receiver.
  • Oscillator Options: TCXO <±2 ppm, OCXO <±50 ppb, optional Rubidium <±5.0 × 10⁻¹¹.
  • Display: 8-inch TFT color screen, 800 × 480 pixels.
  • Remote Management: Web interface, SNMP, and VNC.
  • Battery Operation: 5–8 hours with LiPo battery.
  • Dimensions: 260 × 160 × 63 mm.
  • Weight: 1.9 kg with dual battery packs.
  • Operating Temperature: −10°C to +45°C.
  • Storage Temperature: −20°C to +70°C.
  • Environmental Protection: IP54 according to IEC 60529:2001.
