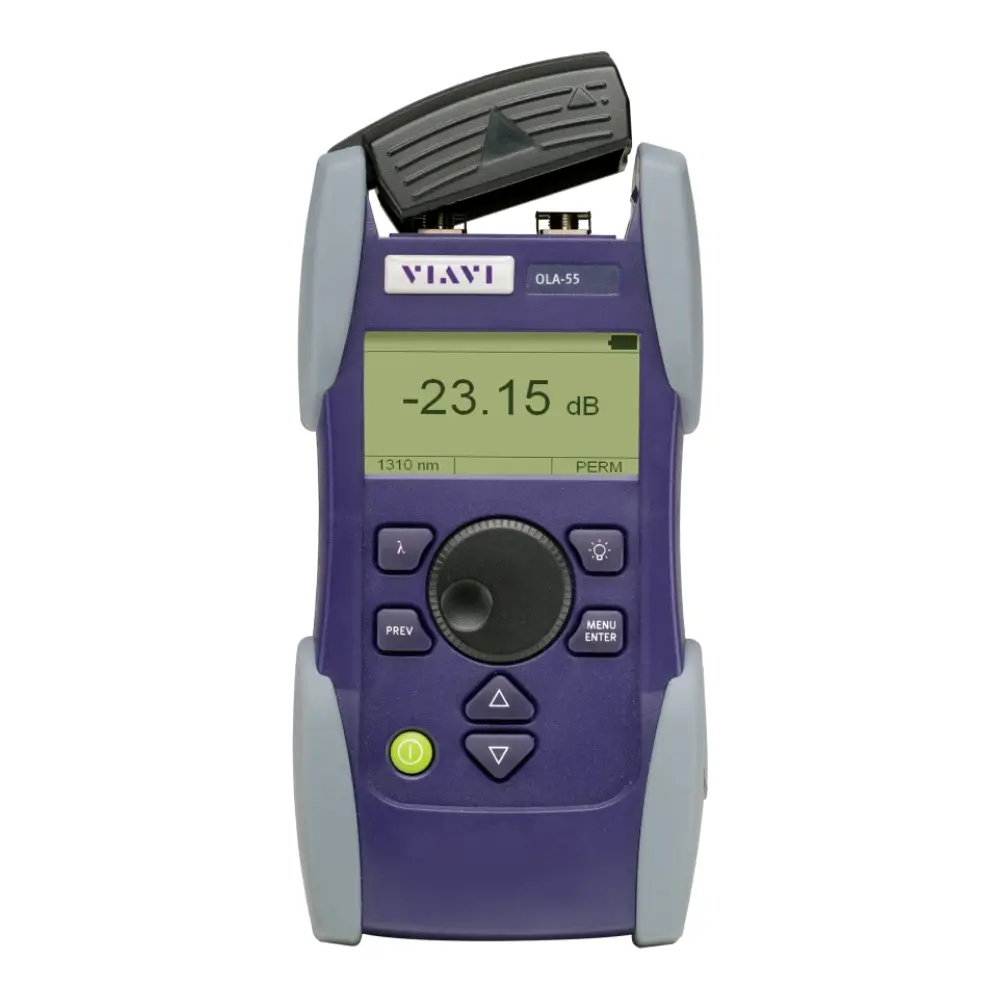

JDSU/VIAVI OLA BN2280/01

The OLA-55 BN2280/01 is a high-precision optical level attenuator designed for testing receiver sensitivity and system margins in singlemode fiber networks. Offering programmable attenuation with excellent repeatability and stability, it's ideal for lab and field applications in telecom, CATV, and component testing.

Specifications

Wavelength Range: 1260 to 1650 nm
Attenuation Range: 2 to 60 dB
Connector Type: Fixed FC/PC (BN2280/01 version)
Step Size: 0.05 dB
Accuracy: ±0.25 dB (typical)
Return Loss: > 40 dB
Battery Life: Up to 100 hours (2 × AA batteries)
Display: Backlit LCD
Features: Programmable attenuation, insertion loss compensation, stable output across full range

Packing List

Body JDSU/VIAVI OLA BN2280/01
Cable Data
Cable Patch Cord SC
Soft Case
Battery AA Rechargerable 4 Pcs
Charger 12V 1.25A

Resources

JDSU/VIAVI OLA BN2280/01 Datasheet
