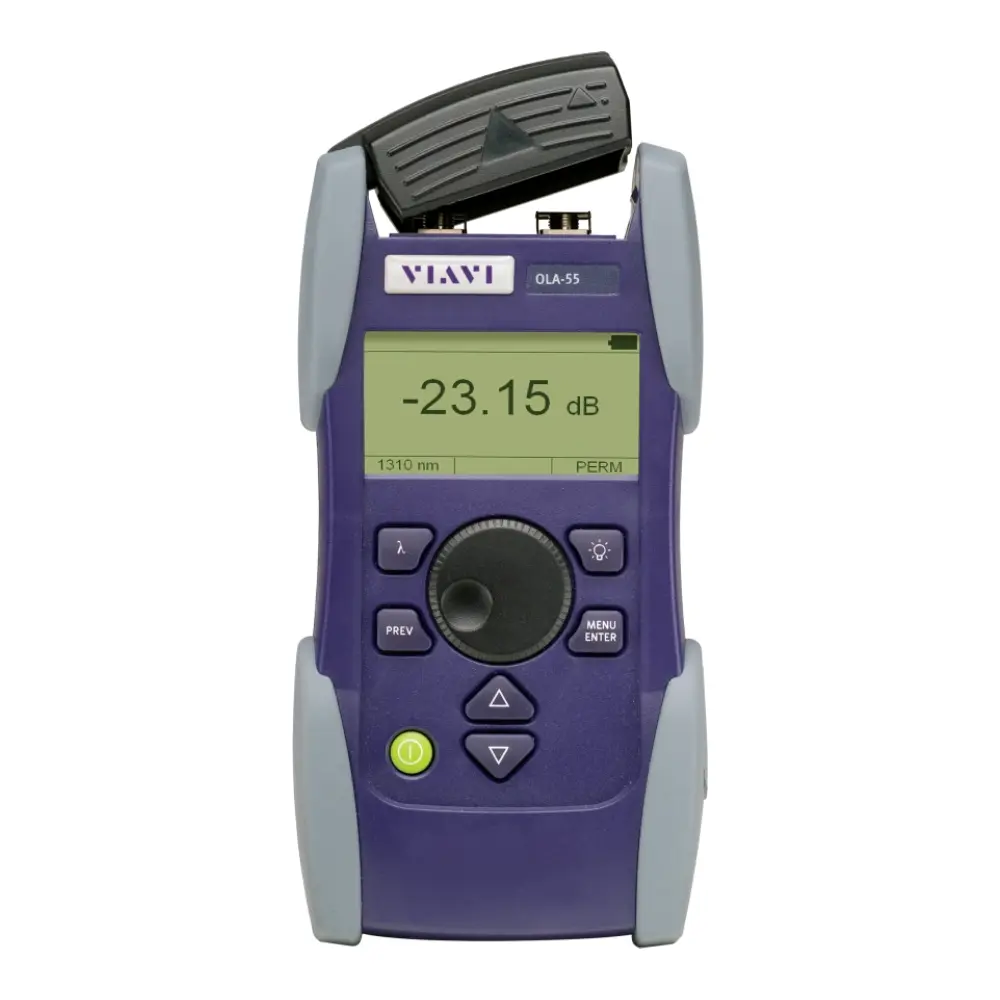

JDSU/VIAVI OLA BN2280/01

The OLA-55 BN2280/01 is a high-precision optical level attenuator designed for testing receiver sensitivity and system margins in singlemode fiber networks. Offering programmable attenuation with excellent repeatability and stability, it's ideal for lab and field applications in telecom, CATV, and component testing.

Rp 0.00 per Day

This combination does not exist.



SpecificationsPacking ListResources

Specifications

  • Wavelength Range: 1200–1700 nm
  • Attenuation Range: 2.5 to 60 dB
  • Connector Type: Fixed FC/PC (BN2280/01 version)
  • Step Size: 0.05 dB
  • Accuracy: ±0.25 dB (typical)
  • Return Loss: > 40 dB
  • Battery Life: Up to 100 hours (2 × AA batteries)
  • Display: Backlit LCD
  • Features: Programmable attenuation, insertion loss compensation, stable output across full range

Packing List

  1. Body JDSU/VIAVI OLA BN2280/01
  2. Cable Data
  3. Cable Patch Cord SC
  4. Soft Case
  5. Battery AA Rechargerable 4 Pcs
  6. CD Software
  7. Charger 12V 1.25A​

Resources

JDSU/VIAVI OLA BN2280/01 Datasheet
