Specifications
- Interfaces: Optical Ethernet (fiber) and Electrical Ethernet (copper/RJ-45)
- Service Activation & Performance: ITU-T Y.1564 (SAMComplete™) and RFC 2544 for throughput, latency, frame loss, back-to-back, and frame delay variation
- Ethernet & IP Testing: Layer 2–4 traffic generation and analysis, multi-stream testing, IPv4/IPv6, VLAN, and service flow validation
- OAM & SLA Verification: IEEE 802.1ag and ITU-T Y.1731 Ethernet OAM, KPI and SLA measurement (delay, jitter, frame loss)
- Troubleshooting Tools: Real-time traffic monitoring, service disruption testing, and advanced Ethernet statistics
- Application & Service Testing: Support for service-level testing including TCP/UDP performance, VoIP readiness, and IP service validation

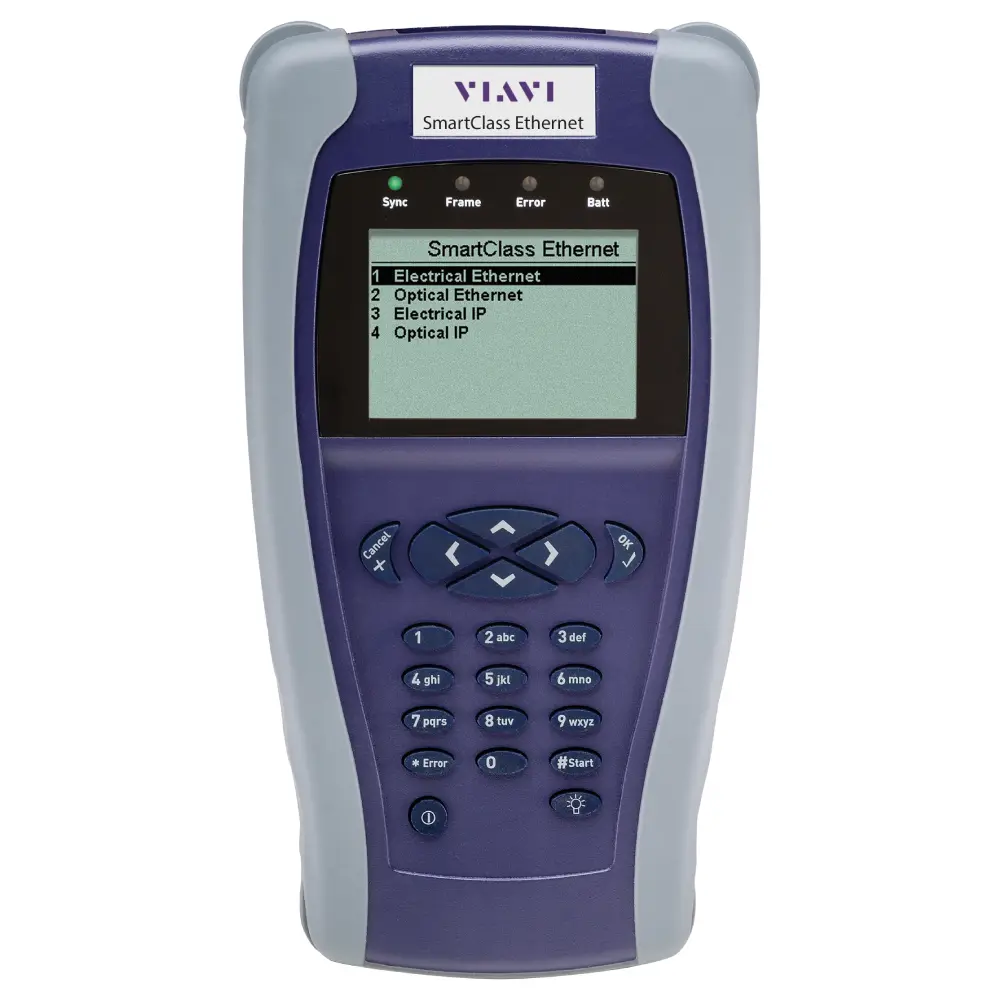

- Platform: Portable JDSU CSC handheld test set for field installation and maintenance
Packing List
- Body JDSU/VIAVI Smartclass CSC-ETH
- AC Adapter 12V 1,25A
- Cable Patch Cord SM LC Duplex
- Cable UTP RJ45 CAT6
- Softcase
- SFP 1310nm SM
- SFP 850nm MM
- Cable Data
- USB User Manual
- Battery 4 Pcs
- Cable Patch Cord MM LC Duplex
