Specifications
- Splice Modes: Pre-programmed single- and dual-fiber modes for SM, MM, DS, NZDS fibers
- Splice Time: Approx. 7 seconds (single-fiber, SM)
- Tension Test: ≥2 N to confirm splice strength
- Display & Interface: 3.5" color LCD with joystick and touchscreen control
- Electrode Life: ~5,000 splices per set (replaceable electrodes)
- Battery: Built-in Li-ion pack delivering up to 300 splice & heat cycles
- Heating Time: Approx. 35 seconds (heat shrink sleeve)
- Environmental Robustness: IP54-rated, operating in –10 °C to +50 °C conditions
- Storage & Transfer: USB, SD card, and PC connectivity
Packing List

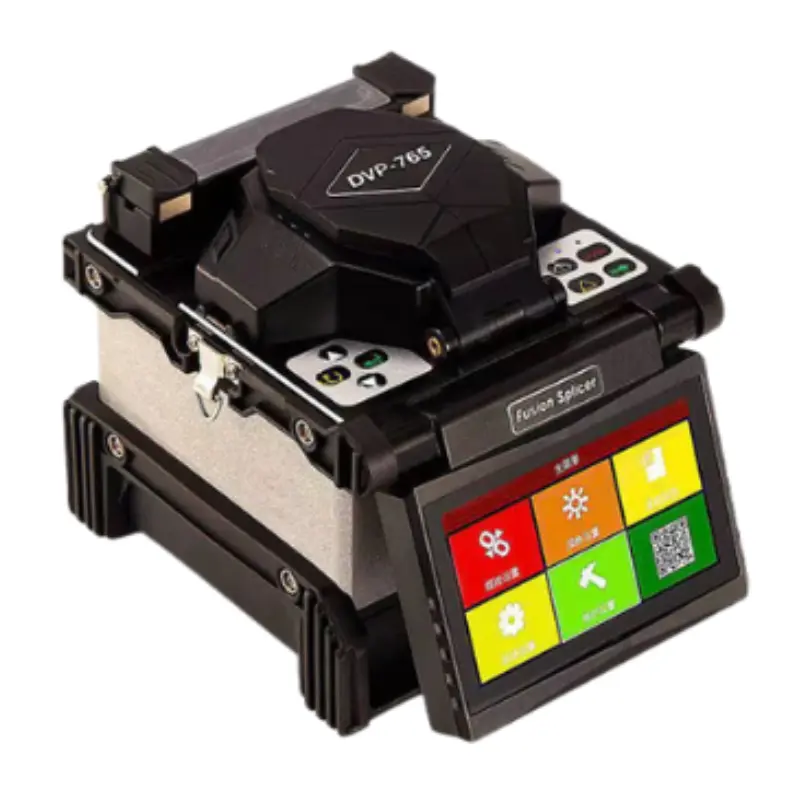

- Body DVP Fusion Splicer DVP765
- Battery Pack
- Charger 15V 5A
- Optical Cutting Plier
- Optical Fiber Cleaver
- Hard Case
- Cable Data
