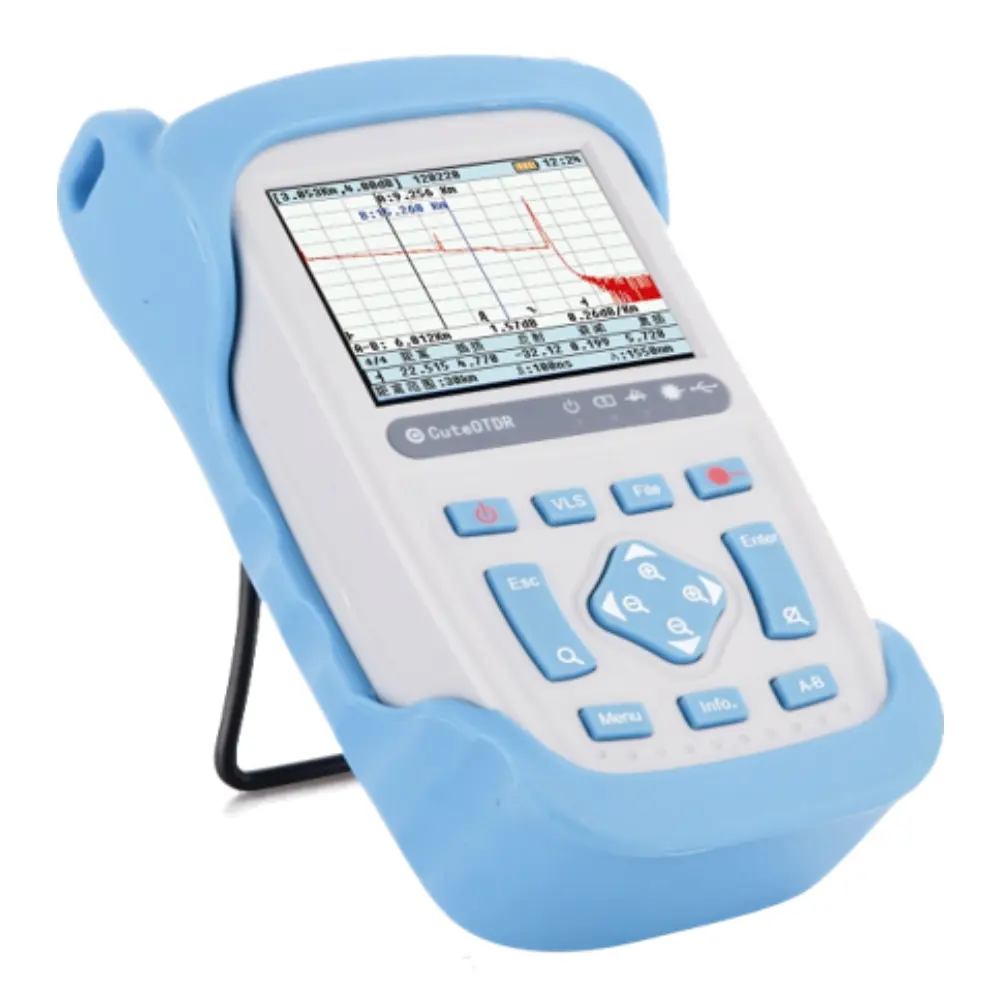

First Fiber OTDR FF80D32

The FirstFiber FF80D32 is a rugged, portable optical time-domain reflectometer (OTDR) designed for installation, commissioning, and maintenance of access, metro, and FTTx fiber networks. Built for tough outdoor environments, this handheld unit combines high dynamic range, short dead zones, and intuitive operation to enable accurate fault localization, splice and connector loss analysis, and end-to-end fiber link characterization.

With its simplified user interface, automatic and manual test modes, and long battery operating time, the FF80D32 is well suited for field technicians who require fast, reliable, and repeatable measurements in real-world conditions.

Rp 0.00 per Day

Specifications


  • OTDR Wavelengths: 1310 / 1550 nm
  • Dynamic Range: 32 dB @1310 nm / 30 dB @1550 nm
  • Dead Zone (Event / Attenuation): 1.5 m / 8 m
  • Applications: FTTx, access networks, LAN, CATV, metro networks, FTTA
  • Test Modes: Automatic and manual operation
  • Measurement Functions: Splice loss, connector loss, fiber attenuation, reflectance, ORL, distance to event
  • VFL: Built-in 650 nm visual fault locator
  • Display: TFT-LCD with LED backlight, sunlight-readable
  • Storage: Internal memory (up to 4 GB)
  • Interfaces: USB, OTDR port, VFL port
  • Battery Life: Up to 8 hours continuous operation
  • Design: Shockproof, outdoor-enhanced handheld form factor
  • File Format: Telcordia SOR (SR-4731 compatible)

Packing List


  1. Body FirstFiber OTDR FF80D32
  2. Quick guide
  3. USB cord
  4. Charger 12V
  5. Battery (Included)
  6. Cable Patch Cord SM SC
  7. Soft Case
  8. Adapter SC, ST and FC
