Specifications
- Interfaces Supported: 10M to 400G Ethernet, OTU1 to OTUCn (up to 400G), Fibre Channel up to 128G
- Ethernet Testing: 10M, 100M, 1G, 2.5G, 5G, 10G, 25G, 40G, 50G, 100G, 200G, and 400G
- OTN Support: OTU1, OTU2, OTU2e, OTU3, OTU4, OTUCn/OTUC4 including FlexO and advanced OTN mapping
- BER Testing: Full line-rate bit error rate analysis up to 400G with error injection and monitoring
- Protocols: Ethernet, OTN, Fibre Channel (up to 128G), CPRI/OBSAI (optional depending on module)
- Advanced Tools: Packet capture, traffic generation, latency testing, throughput measurement, frame analysis, PCS/FEC monitoring (Clause 91/119), and advanced jitter/wander tools
- Form Factor: Modular FTB-1 PRO platform with field-upgradeable test module
- Display: High-resolution touchscreen interface for fast and intuitive operation
- Connectivity: USB, Ethernet, Wi-Fi, Bluetooth, and remote test management capability
- Power & Battery: Extended battery life designed for full shift field testing
- Applications: 5G transport, metro/core networks, data centers, hyperscale interconnect, and high-capacity backbone validation
Packing List

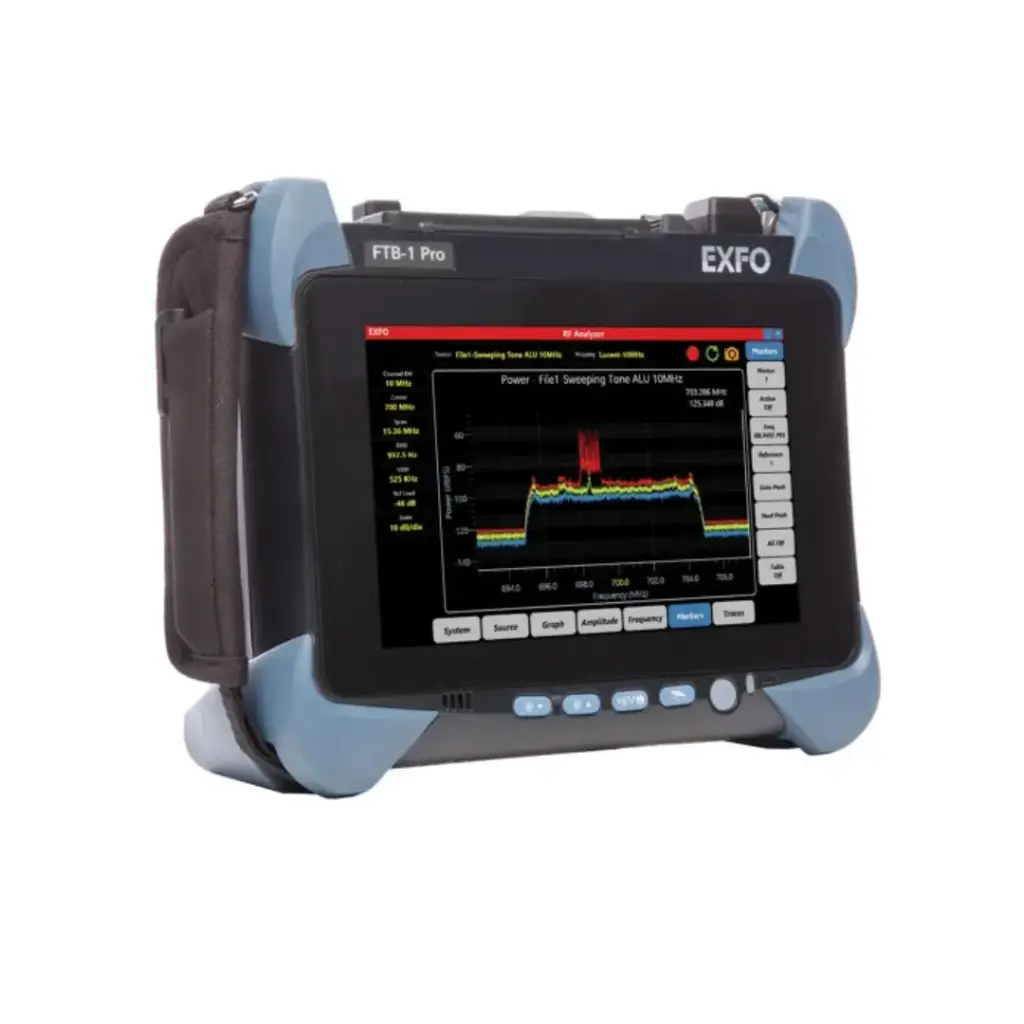

- Body EXFO Ber Test 400G FTB1PRO-FTB88480 + Battery Pack
- Charger 24V
- Stylus
- QSFP-DD 400G FR4 1310nm
- Cable Patch Cord SM LC Duplex
- Carryng Case
