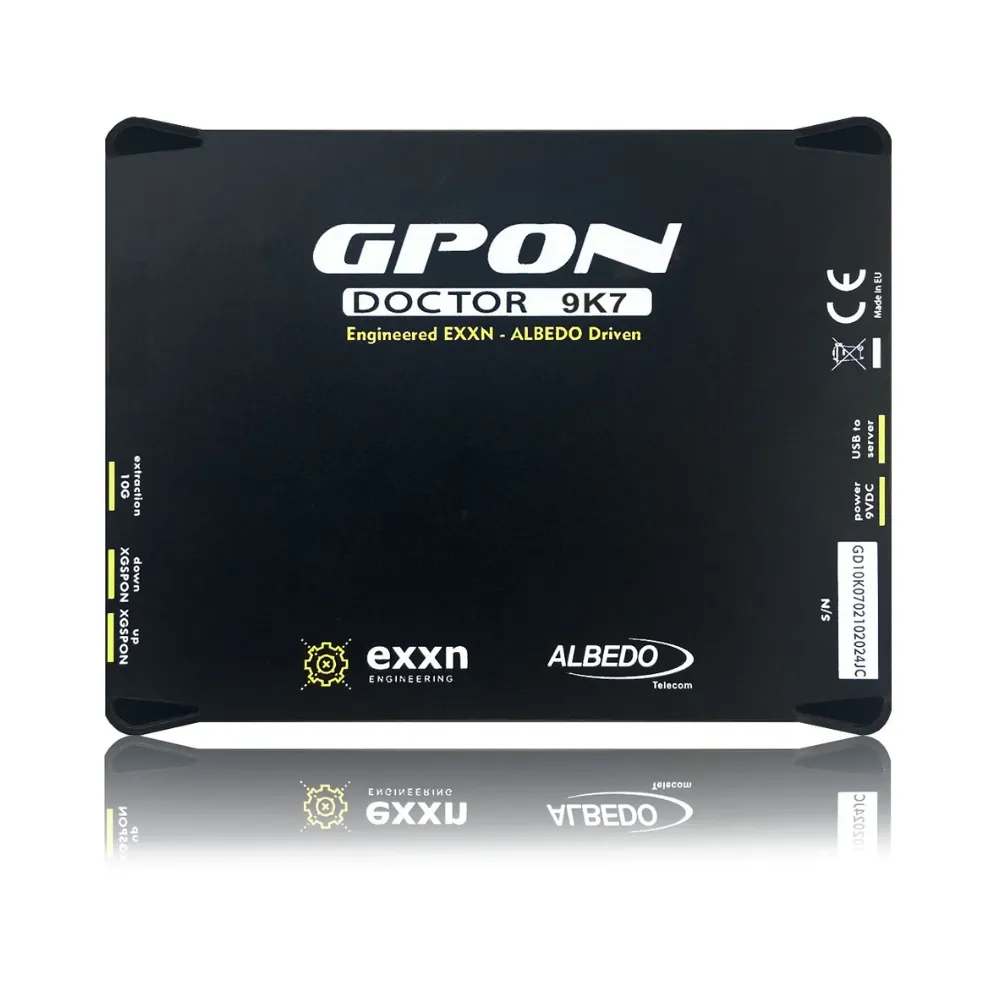

Albedo Telecom XGSPON Analyzer GPON Doctor 9k7

The ALBEDO Telecom GPON Doctor 9k7 is an XGS-PON analyzer designed for troubleshooting, monitoring, debugging, and deployment of FTTH XGSPON-based networks. Its analysis software interprets captured XGS-PON data to trace control frames, estimate PON topology, analyze ONT and OLT state machines, identify established data channels and exchanged configuration, generate E/R OMCI diagrams, and provide bandwidth analysis for each ONT per T-CONT. It supports PLOAM, OMCI, and Bandwidth Map capture and interpretation, along with ITU-T G.984 and ITU-T G.9807 conformity evaluation.

The GPON Doctor 9k7 provides real-time, background, and scheduled capture modes with filtering, visualization, and export to CBIN6 and XML formats. User traffic can be extracted through a virtual Ethernet interface over USB 3.0, including XGSPON user traffic, while the bandwidth monitor provides per-port, Alloc-ID, and ONU utilization data and the link integrity monitor detects downstream and upstream HEC errors and BIP errors. The analyzer supports remote automation through an integrated CLI using Telnet, and uses USB 3.0 with SFP+ XGSPON ONT and OLT interfaces. The ONT interface operates at TX 1270 nm / RX 1577 nm at 9.953 Gbps, while the OLT interface operates at TX 1577 nm / RX 1270 nm at 9.953 Gbps.

Rp 0.00 Rp 0.00

Add to cart Buy now
Get a Quote ⟩
SpecificationsResources

Specifications

  • Product Type: XGSPON Analyzer
  • Model / Part Number: GPON Doctor 9k7
  • Primary Application: FTTH XGSPON network troubleshooting, monitoring, debugging, deployment, interoperability, and protocol analysis
  • Main Functions: XGSPON traffic capture and analysis, PON topology characterization, ONT/OLT analysis, PLOAM and OMCI analysis, Bandwidth Map analysis, user traffic extraction, bandwidth monitoring, link integrity monitoring, and standards conformity evaluation
  • PON Capture Modes: Real-time, background, scheduled
  • PON Analysis: PON topology, PON parameters, ONU ID, timing parameters, negotiated keys, operation status, Alloc-IDs, GEM ports
  • Supported Standards: ITU-T G.984, ITU-T G.9807
  • OMCI Analysis: Discovered OMCI entities, attribute/value interpretation, E/R diagram generation, entity definition reference
  • Analysis Export: HTML
  • Capture Export: CBIN6, XML
  • User Traffic Extraction: Six simultaneous GPON; XGSPON user traffic
  • Virtual Ethernet Interface: USB 3.0
  • Bandwidth Monitoring: Per port, per Alloc-ID, per ONU
  • Link Integrity Monitoring: Downstream HEC errors, upstream HEC errors, BIP errors
  • Downstream HEC Monitoring: SFC, OC, HLend, BWMap, and XGEM header
  • Upstream HEC Monitoring: Fixed FS Header and XGEM header
  • Automation: Integrated CLI; automated certification and verification workflows
  • Automation Protocol: Telnet
  • Interfaces: USB 3.0; SFP+ XGSPON ONT; SFP+ XGSPON OLT
  • XGSPON ONT Interface: SC/UPC, TX 1270 nm / RX 1577 nm, 9.953 Gbps
  • XGSPON OLT Interface: SC/UPC, TX 1577 nm / RX 1270 nm, 9.953 Gbps
  • Platform Requirements: USB 3.0 interface, Windows operating system
  • Accessories Included: Extraction splitter, optical modules, 4 dB / 8 dB / 15 dB attenuators, SC/UPC-SC/APC patch cords
  • Dimensions: 210 × 160 × 30 mm without SFPs; 230 × 160 × 30 mm with SFPs
  • Appliance Weight: <1 kg
  • Carrying Case with Accessories: 1.5 kg
