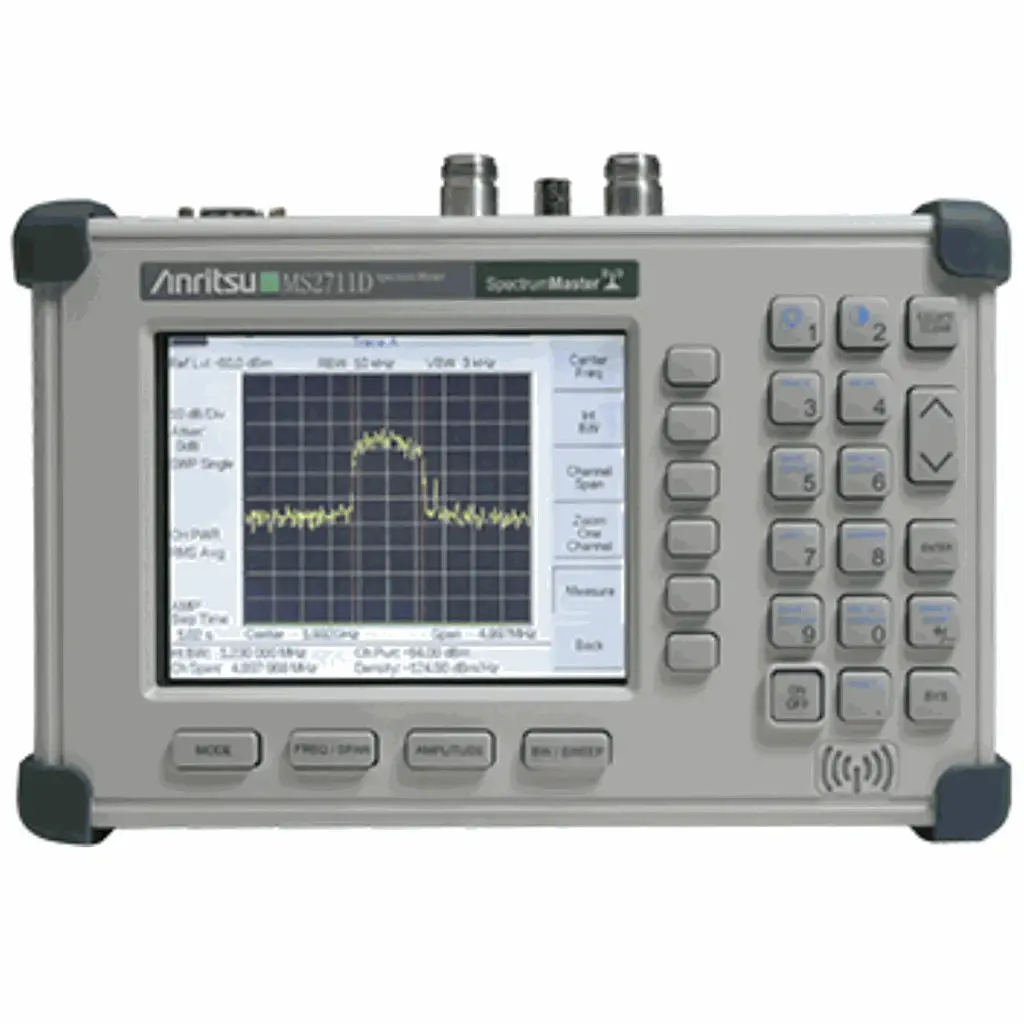

Anritsu Spectrum Master MS2711D

The Anritsu Spectrum Master MS2711D is a rugged, lightweight handheld spectrum analyzer designed for installation, maintenance, and troubleshooting of wireless communication systems. Built specifically for field environments, this portable analyzer combines high sensitivity, fast sweep speed, and intuitive operation, allowing technicians to quickly locate, identify, and resolve RF interference and signal integrity issues on-site.

With its wide frequency coverage, built-in demodulation, and advanced interference analysis options, the MS2711D is well suited for cellular, Wi-Fi, broadcast, and general RF monitoring applications.


Rp 0.00 per Day

Specifications


  • Primary Application: Portable RF spectrum analysis
  • Frequency Range: 100 kHz to 3.0 GHz (tunable down to 9 kHz)
  • Measurement Functions: Field strength, channel power, occupied bandwidth, ACPR, C/I
  • Interference Analysis: Spectrogram, RSSI, signal identification (optional)
  • Sweep Speed: Fast full-span sweep for capturing intermittent signals
  • Sensitivity: High sensitivity with built-in preamplifier
  • Maximum Safe Input: Up to +43 dBm (peak)
  • Demodulation: AM, FM (narrow & wide), SSB (USB/LSB)
  • Trace Storage: Up to 300 traces
  • Setup Storage: 15 test setups
  • Display: Sunlight-readable color TFT LCD
  • User Interface: Menu-driven with soft keys
  • Connectivity: RS-232 for PC control and data transfer
  • Power: Internal rechargeable battery
  • Design: Ultra-lightweight, rugged handheld chassis for field use

Packing List


  1. Body Anritsu Spectrum Master MS2711D + Battery Pack
  2. Charger 12V
  3. Soft Case (Bag)
  4. Cable Test Port 1.5m
  5. Cable Data
  6. Connector Adapter: NM-DINF NF-DINF NF-NF
