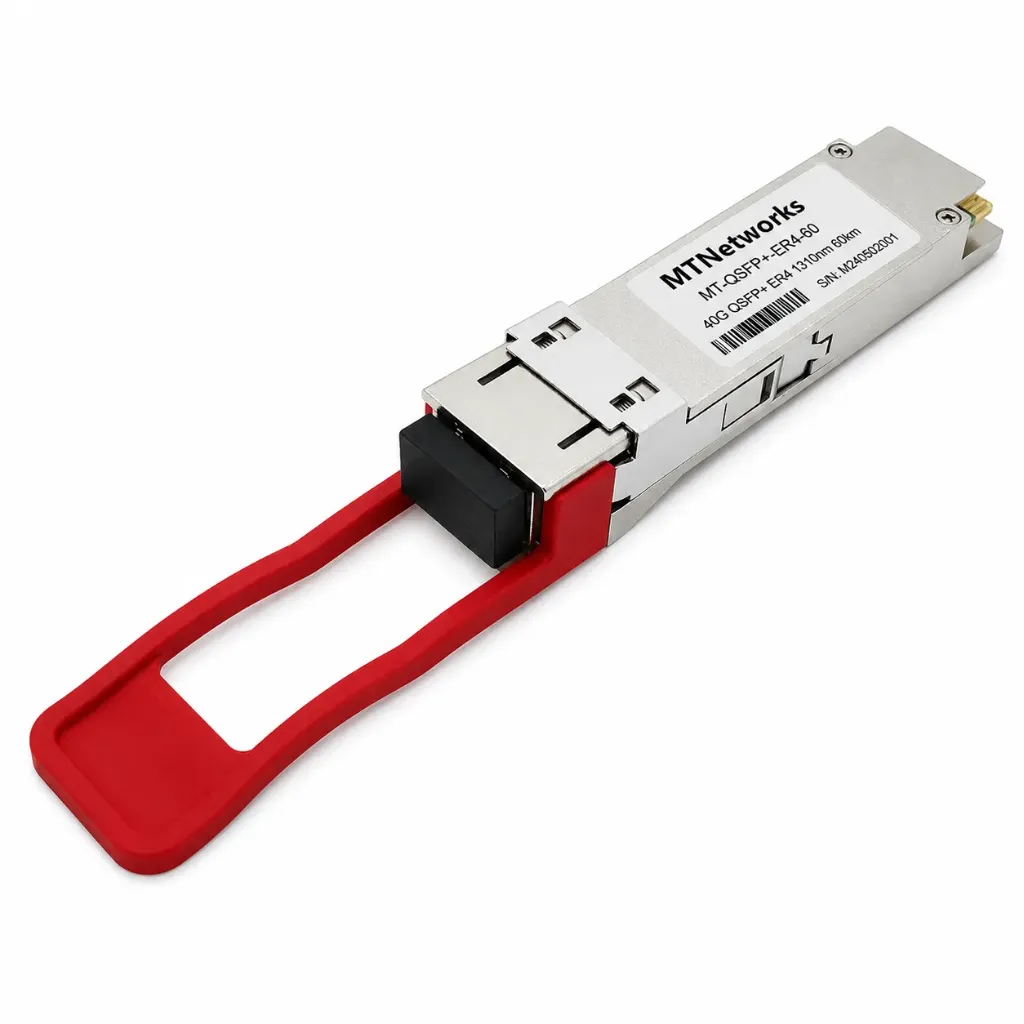

MTNetworks QSFP+ 40G ER4 1310nm 60km

Name: MTNetworks QSFP+ 40G ER4 1310nm 60km
Availability: InStock

The MTNetworks MT-QSFP+-ER4-60 is a high-performance 40G QSFP+ optical transceiver designed for carrier networks, metro transport, enterprise backbone, and long-distance data center interconnect applications. Utilizing a 4-channel CWDM optical architecture with integrated optical multiplexing and demultiplexing, this QSFP+ module delivers reliable 40 Gigabit Ethernet transmission over single-mode fiber up to 60 km.

Featuring DFB laser transmitters, APD photodetectors, Digital Diagnostic Monitoring (DDM), and a QSFP+ MSA-compliant form factor, the MT-QSFP+-ER4-60 provides stable optical performance for carrier-grade network deployments requiring long-reach 40G connectivity.

Get a Quote ⟩

Specifications

Primary Application: 40G Ethernet, Metro Networks, Carrier Networks, Enterprise Backbone, and Data Center Interconnect (DCI)
Supported Standard: IEEE 802.3ba 40GBASE-ZR4 Lite, QSFP+ MSA
Data Rate: Up to 44.8 Gbps aggregate (4 × 11.2 Gbps)
Transmission Distance: Up to 60 km over single-mode fiber (SMF)
Wavelength: CWDM4 (1271 / 1291 / 1311 / 1331 nm)
Optical Interface: Duplex LC connector
Optical Technology: 4-channel CWDM DFB transmitter with APD receiver
Electrical Interface: 4 × 10.3125 Gbps electrical lanes (XLPPI)
Form Factor: QSFP+, hot-pluggable
Digital Diagnostics: Built-in Digital Diagnostic Monitoring (DDM) via 2-wire serial interface
Power Consumption: ≤ 3.5 W
Power Supply: Single +3.3 V
Operating Temperature: 0°C to +70°C
Compliance: IEEE 802.3ba 40GBASE-ZR4 Lite, QSFP+ MSA, RoHS compliant
