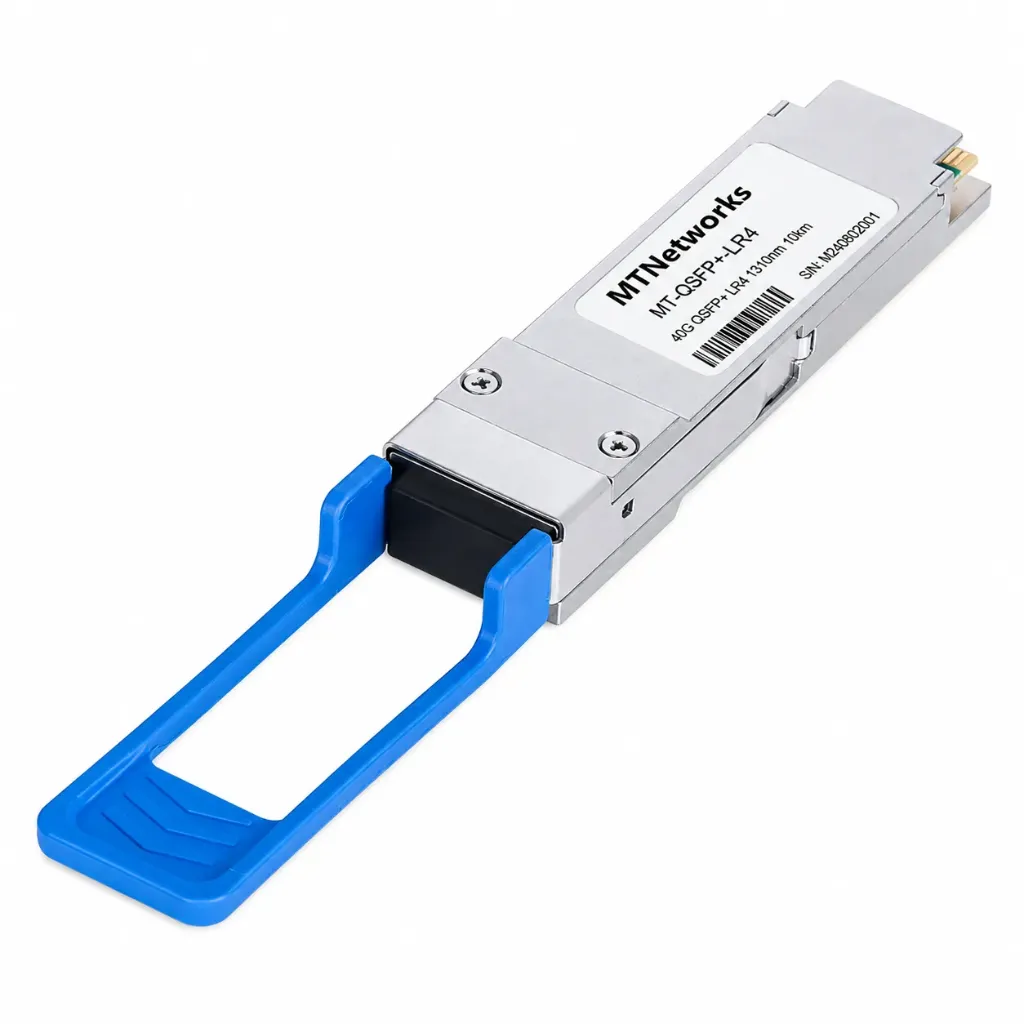

MTNetworks QSFP+ 40G LR4 1310nm 10km

Name: MTNetworks QSFP+ 40G LR4 1310nm 10km
Availability: InStock

The MTNetworks MT-QSFP+-LR4 is a high-performance 40G QSFP+ optical transceiver designed for enterprise networks, cloud computing, campus backbone, and data center interconnect applications. Utilizing a 4-channel CWDM optical architecture, this QSFP+ module delivers reliable 40 Gigabit Ethernet transmission over single-mode fiber up to 10 km.

Featuring 1310 nm DFB laser transmitters, PIN photodiode receivers, integrated optical MUX/DEMUX, Digital Diagnostic Monitoring (DDM), and a QSFP+ MSA-compliant hot-pluggable design, the MT-QSFP+-LR4 provides stable optical performance for high-density 40G Ethernet deployments and modern optical network infrastructures.

Get a Quote ⟩

Specifications

Primary Application: 40G Ethernet, Enterprise Networks, Campus Networks, Cloud Computing, and Data Center Interconnect (DCI)
Supported Standard: IEEE 802.3ba 40GBASE-LR4, QSFP+ MSA
Data Rate: Up to 44.8 Gbps aggregate (4 × 11.2 Gbps)
Transmission Distance: Up to 10 km over single-mode fiber (SMF)
Wavelength: CWDM4 (1271 / 1291 / 1311 / 1331 nm)
Optical Interface: Duplex LC connector
Optical Technology: 4-channel CWDM DFB transmitter with PIN receiver and integrated MUX/DEMUX
Electrical Interface: 4 × 10.3125 Gbps electrical lanes (XLPPI)
Form Factor: QSFP+, hot-pluggable
Digital Diagnostics: Built-in Real-Time Digital Diagnostic Monitoring (DDM)
Power Consumption: ≤ 3.5 W
Power Supply: Single +3.3 V
Operating Temperature: 0°C to +70°C
Compliance: IEEE 802.3ba 40GBASE-LR4, QSFP+ MSA, SFF-8436, RoHS compliant
