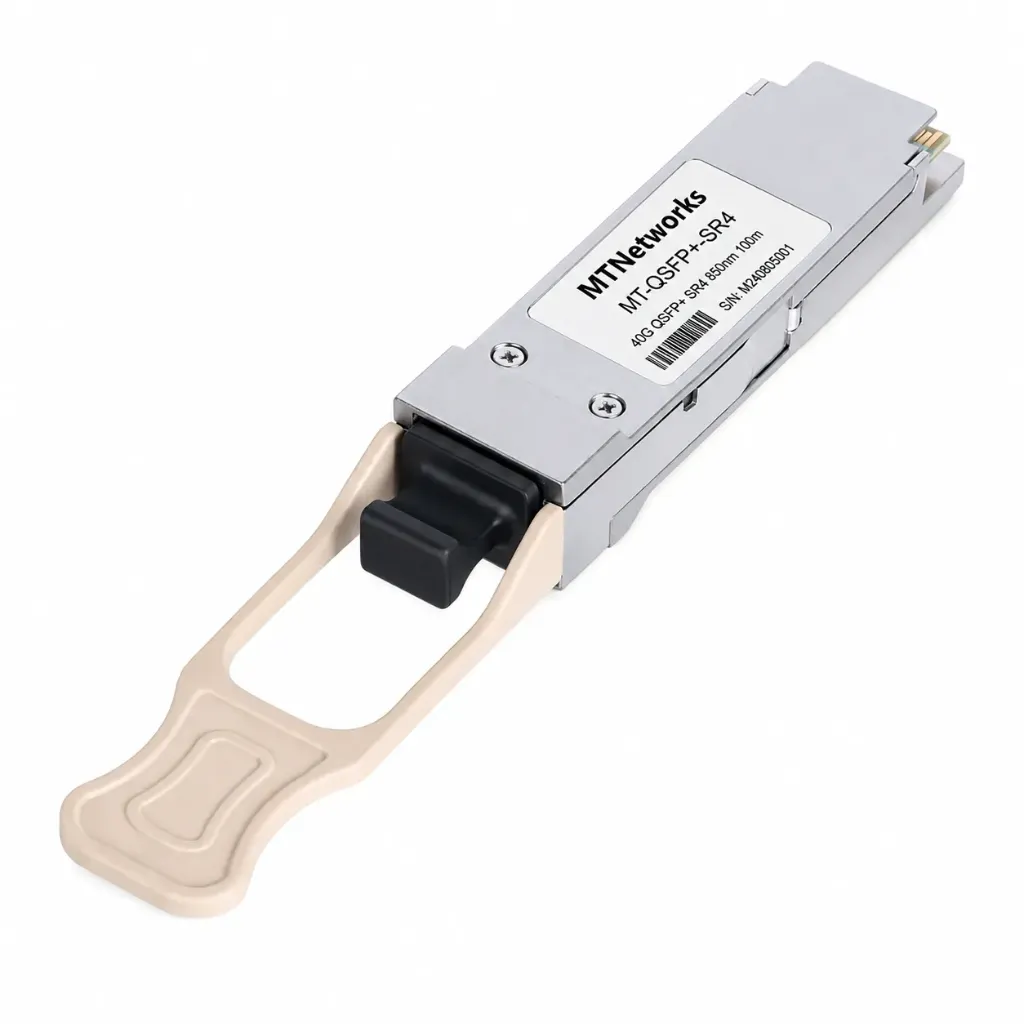

MTNetworks QSFP+ 40G SR4 850m 100m

Name: MTNetworks QSFP+ 40G SR4 850m 100m
Availability: InStock

The MTNetworks MT-QSFP+-SR4 is a high-performance 40G QSFP+ optical transceiver designed for high-speed Ethernet, cloud computing, enterprise networks, and data center interconnect applications. Utilizing a 4-channel 850 nm VCSEL array with PIN photodiode receivers, this module delivers reliable 40 Gigabit Ethernet connectivity over multimode fiber with transmission distances up to 100 m on OM3 and 150 m on OM4 fiber.

Featuring a compact QSFP+ hot-pluggable form factor, MPO optical interface, Digital Diagnostic Monitoring (DDM), and low power consumption, the MT-QSFP+-SR4 provides a cost-effective solution for high-density 40G Ethernet deployments in modern data centers.

Get a Quote ⟩

Specifications

Primary Application: 40G Ethernet, Enterprise Networks, Cloud Computing, and Data Center Interconnect (DCI)
Supported Standard: IEEE 802.3ba 40GBASE-SR4, QSFP+ MSA
Data Rate: Up to 41.2 Gbps aggregate (4 × 10.3125 Gbps)
Transmission Distance: Up to 100 m on OM3 MMF and 150 m on OM4 MMF
Wavelength: 850 nm VCSEL
Optical Interface: MPO/MTP-12 connector
Optical Technology: 4-channel VCSEL transmitter with PIN photodiode receiver
Electrical Interface: 4 × 10.3125 Gbps electrical lanes (XLPPI)
Form Factor: QSFP+, hot-pluggable
Digital Diagnostics: Built-in Real-Time Digital Diagnostic Monitoring (DDM)
Power Consumption: ≤ 1.5 W
Power Supply: Single +3.3 V
Operating Temperature: 0°C to +70°C
Compliance: IEEE 802.3ba 40GBASE-SR4, QSFP+ MSA, SFF-8436, RoHS compliant
