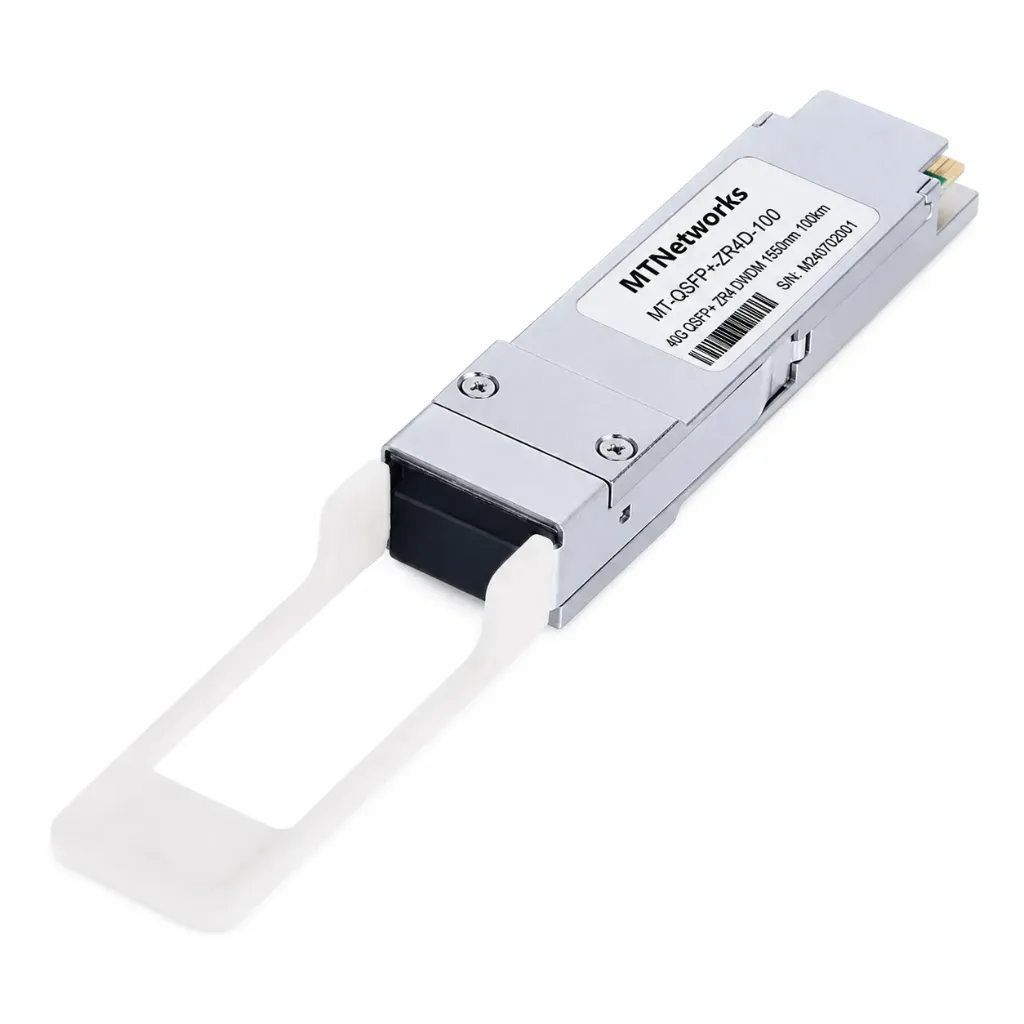

MTNetworks QSFP+ 40G ZR4 DWDM 1550nm 100km

Name: MTNetworks QSFP+ 40G ZR4 DWDM 1550nm 100km
Availability: InStock

The MTNetworks MT-QSFP+-ZR4D-100 is a high-performance 40G DWDM optical transceiver designed for long-haul optical transport, carrier networks, metro backbone, and data center interconnect applications. Utilizing a 4-channel DWDM optical architecture based on the 100 GHz ITU-T DWDM grid, this QSFP+ module delivers reliable 40 Gigabit Ethernet transmission over single-mode fiber up to 100 km.

Featuring DWDM EML laser transmitters, APD photodetectors, integrated optical MUX/DEMUX, Digital Diagnostic Monitoring (DDM), and a QSFP+ MSA-compliant hot-pluggable design, the MT-QSFP+-ZR4D-100 provides exceptional optical performance for carrier-grade DWDM transport networks requiring ultra-long-distance 40G connectivity.

Get a Quote ⟩

Specifications

Primary Application: 40G DWDM Transport, Carrier Networks, Metro Backbone, Enterprise Backbone, and Data Center Interconnect (DCI)
Supported Standard: IEEE 802.3ba 40GBASE-EZR4, QSFP+ MSA
DWDM Technology: 100 GHz ITU-T Grid (C-Band)
Data Rate: Up to 44.8 Gbps aggregate (4 × 11.2 Gbps)
Transmission Distance: Up to 100 km over single-mode fiber (SMF)
Optical Interface: Duplex LC connector
Optical Technology: 4-channel DWDM EML transmitter with APD receiver and integrated MUX/DEMUX
Electrical Interface: 4 × 10.3125 Gbps electrical lanes (XLPPI)
Form Factor: QSFP+, hot-pluggable
Digital Diagnostics: Built-in Digital Diagnostic Monitoring (DDM) via 2-wire serial interface
Power Consumption: ≤ 5 W
Power Supply: Single +3.3 V
Operating Temperature: 0°C to +70°C
Compliance: IEEE 802.3ba 40GBASE-EZR4, QSFP+ MSA, RoHS compliant
