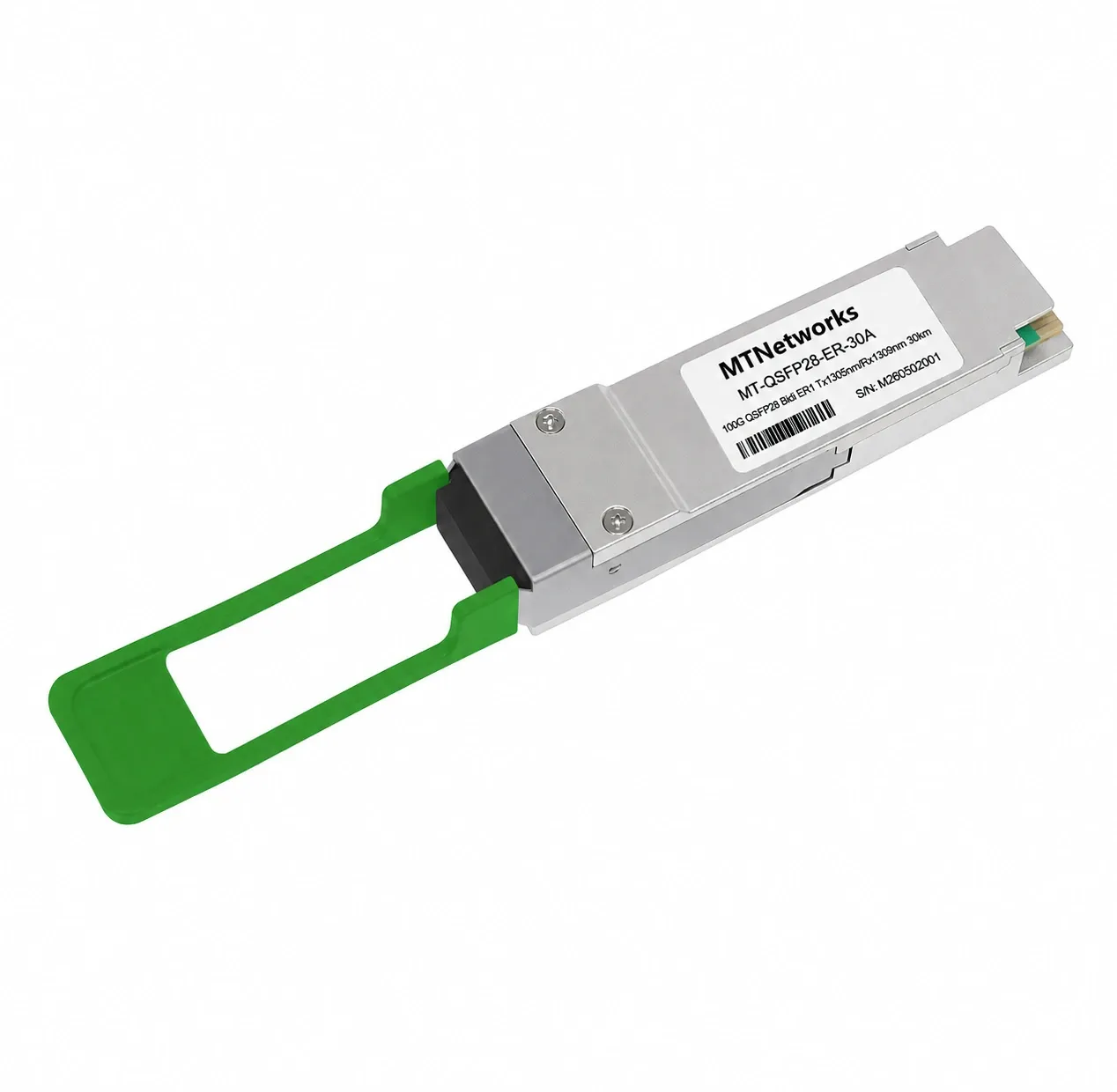

MTNetworks QSFP28 100G Bidi ER1 Tx1305nm/Rx1309nm 30km

Name: MTNetworks QSFP28 100G Bidi ER1 Tx1305nm/Rx1309nm 30km
Availability: InStock

The MTNetworks MT-QSFP28-ER-30A/B is a high-performance 100G BiDi optical transceiver designed for long-reach enterprise networks, telecom transport, metro Ethernet, and data center interconnect applications. Utilizing single-fiber bidirectional (BiDi) transmission with PAM4 modulation, this QSFP28 module enables 100 Gigabit Ethernet connectivity over a single strand of single-mode fiber while reducing fiber infrastructure requirements.

Supporting transmission distances up to 30 km, the MT-QSFP28-ER-30A/B features an EML laser transmitter, APD receiver, integrated KP4 Forward Error Correction (FEC), and Digital Diagnostic Monitoring (DDM), providing reliable optical performance for carrier-grade and enterprise optical networks.

Get a Quote ⟩

Specifications

Primary Application: 100G Ethernet, Metro Networks, Telecom Transport, and Data Center Interconnect (DCI)
Transmission Type: Single-fiber BiDi optical transmission (ER1)
Data Rate: Up to 106.25 Gbps (PAM4)
Transmission Distance: Up to 30 km over single-mode fiber (SMF)
Wavelength Pair: 1305 nm TX / 1309 nm RX (Type A) and 1309 nm TX / 1305 nm RX (Type B)
Optical Interface: Simplex LC connector
Optical Technology: EML laser transmitter with APD receiver
Electrical Interface: CAUI-4 (4 × 25.78 Gbps NRZ)
Forward Error Correction: Integrated KP4 FEC support
Form Factor: QSFP28, hot-pluggable
Power Consumption: < 4 W
Power Supply: Single +3.3 V
Operating Temperature: 0°C to +70°C
Diagnostics: Digital Diagnostic Monitoring (DDM) via I²C interface
Compliance: IEEE 802.3cu 100GBASE-ER1, 100G Lambda MSA, QSFP28 MSA, SFF-8636, SFF-8679, RoHS
