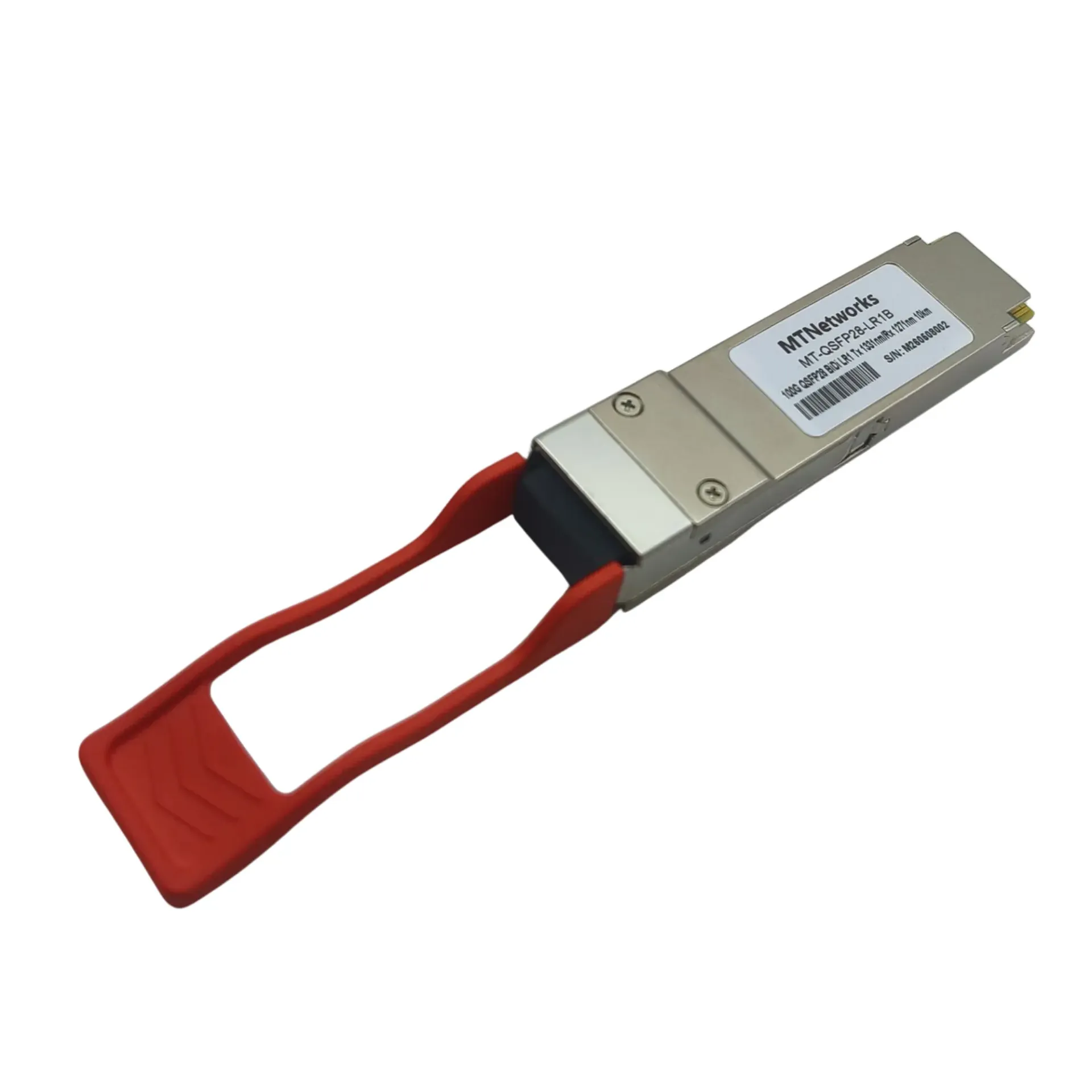

MTNetworks QSFP28 BIDI 100G LR1 TX 1330nm/1270nm 10km

Name: MTNetworks QSFP28 BIDI 100G LR1 TX 1330nm/1270nm 10km
Availability: InStock

The MTNetworks MT-QSFP28-LRA/B is a high-performance 100G BiDi optical transceiver designed for next-generation data centers, enterprise networks, and high-speed Ethernet applications. Utilizing single-fiber bidirectional (BiDi) transmission with PAM4 modulation, this QSFP28 module enables 100 Gigabit Ethernet connectivity over a single strand of single-mode fiber, reducing fiber infrastructure requirements while maintaining reliable optical performance.

Supporting transmission distances up to 10 km, the MT-QSFP28-LRA/B features integrated KP4 Forward Error Correction (FEC), low power consumption, and Digital Diagnostic Monitoring (DDM), making it an ideal solution for high-density 100G deployments where fiber resources are limited.

Get a Quote ⟩

Specifications

Primary Application: 100G Ethernet, Enterprise Networks, Cloud Computing, and Data Center Interconnect (DCI)
Transmission Type: Single-fiber BiDi optical transmission
Data Rate: Up to 106.25 Gbps (PAM4)
Transmission Distance: Up to 10 km over single-mode fiber (SMF)
Wavelength Pair: 1271 nm TX / 1331 nm RX (Type A) and 1331 nm TX / 1271 nm RX (Type B)
Optical Interface: Simplex LC connector
Optical Technology: EML laser transmitter with PIN receiver
Electrical Interface: CAUI-4 (4 × 25.78 Gbps NRZ)
Forward Error Correction: Integrated KP4 FEC support
Form Factor: QSFP28, hot-pluggable
Power Consumption: < 3.5 W
Power Supply: Single +3.3 V
Operating Temperature: 0°C to +70°C
Diagnostics: Digital Diagnostic Monitoring (DDM) via I²C interface
Compliance: 100G Lambda MSA (100G-LR1), QSFP28 MSA, SFF-8636, SFF-8679, RoHS compliant
