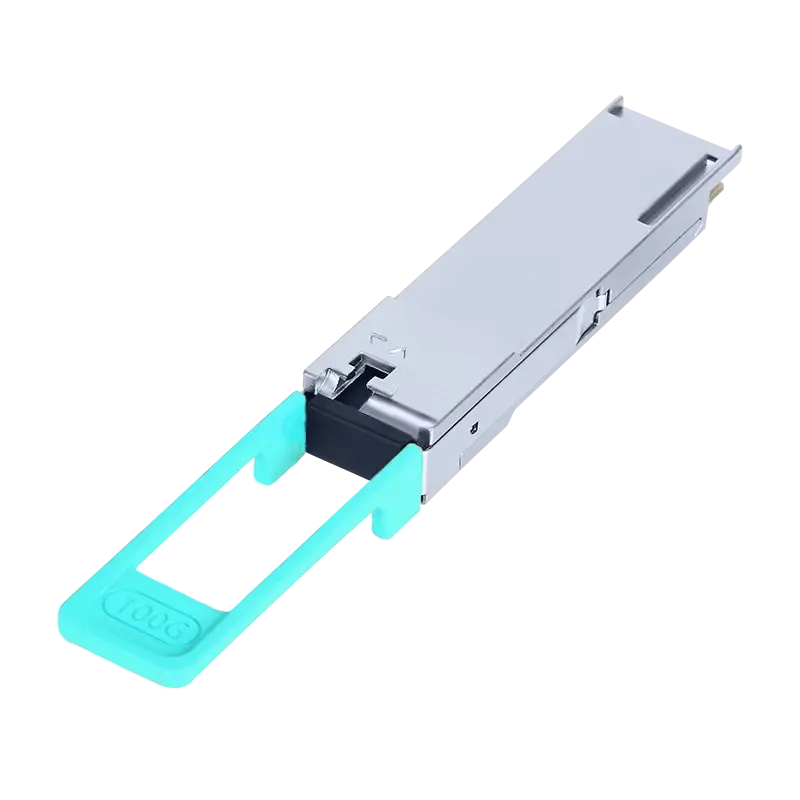

Specifications
- Primary Application: 100G Ethernet, Telecom Transport, Carrier Networks, and Data Center Interconnect (DCI)
- Transmission Type: Single-fiber BiDi optical transmission
- Data Rate: Up to 103.125 Gbps aggregate (4 × 25.78125 Gbps NRZ)
- Transmission Distance: Up to 80 km over G.652 single-mode fiber (SMF)
- Wavelength Pair: 1273 / 1278 / 1282 / 1287 nm TX, 1296 / 1300 / 1305 / 1309 nm RX (Type A) and 1296 / 1300 / 1305 / 1309 nm TX, 1273 / 1278 / 1282 / 1287 nm RX (Type B)
- Optical Interface: Simplex LC connector
- Optical Technology: 4-channel LAN-WDM EML transmitter with PIN receiver and SOA amplification
- Electrical Interface: CAUI-4 (4 × 25.78125 Gbps NRZ)
- Integrated Functions: Built-in 4-channel Clock and Data Recovery (CDR) with Digital Diagnostic Monitoring (DDM)
- Form Factor: QSFP28, hot-pluggable
- Power Consumption: ≤ 5.5 W
- Power Supply: Single +3.3 V
- Operating Temperature: 0°C to +70°C
- Compliance: QSFP28 MSA, IEEE 802.3 100G Ethernet, RoHS compliant
