MTNetworks QSFP56 200G FR4 CWDM 2km

Name: MTNetworks QSFP56 200G FR4 CWDM 2km
Availability: InStock

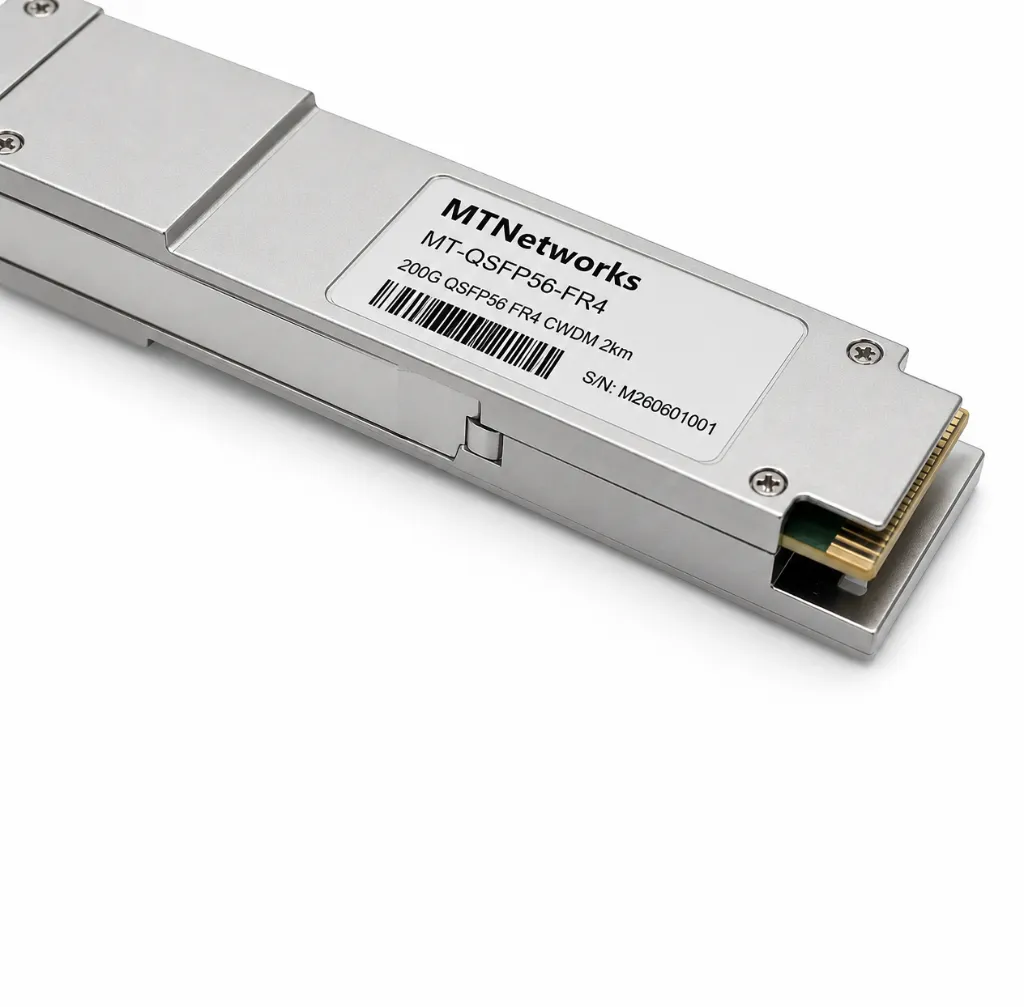

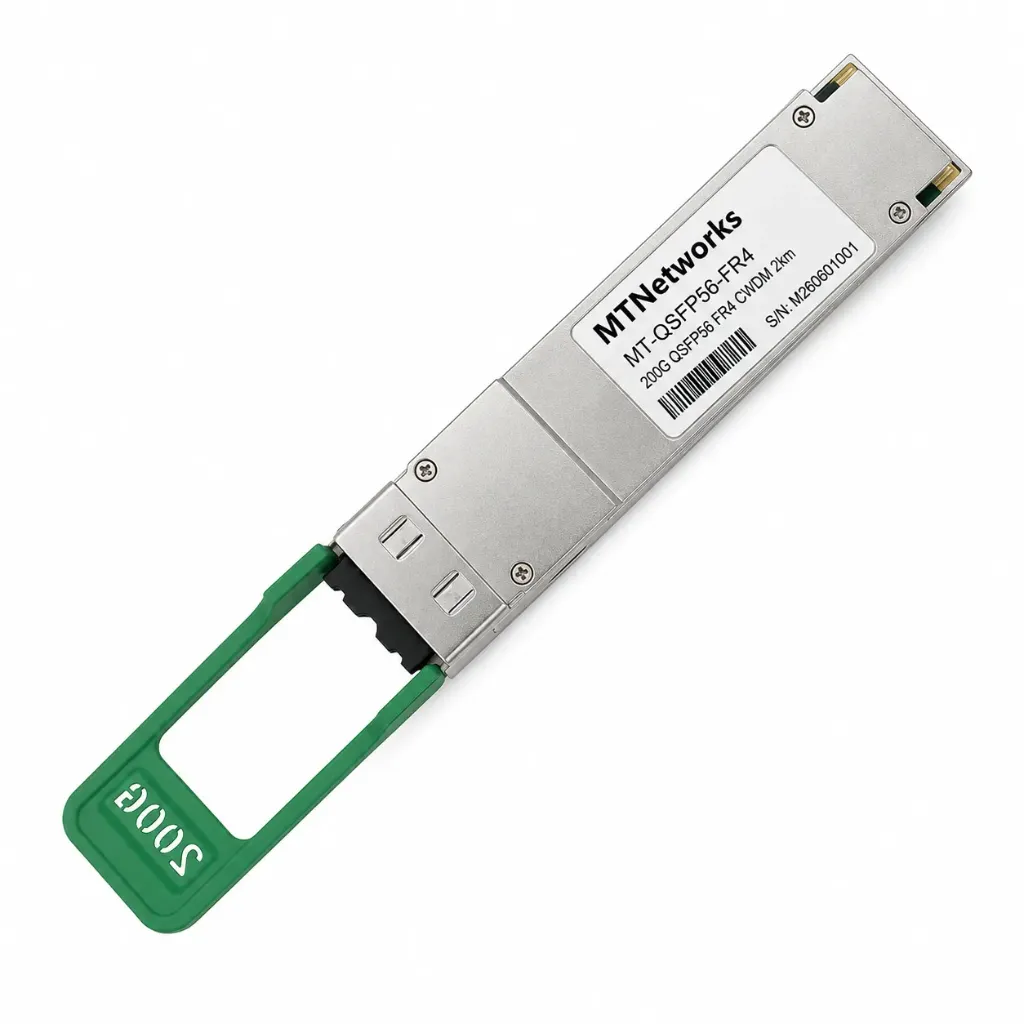

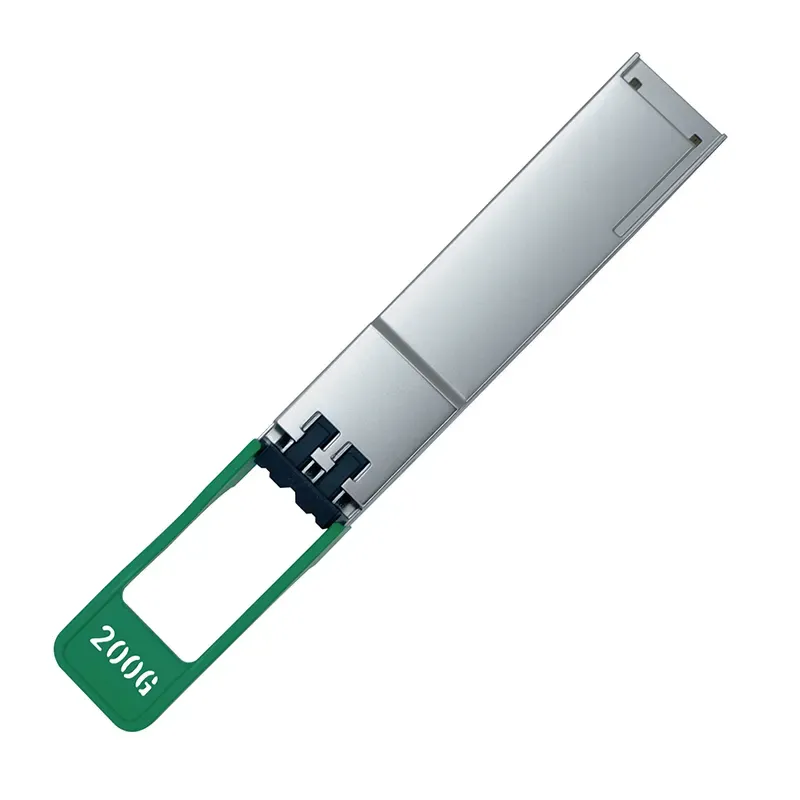

The MTNetworks MT-QSFP56-FR4 is a high-performance 200G optical transceiver designed for next-generation data centers, enterprise networks, and cloud infrastructures. Utilizing four CWDM optical wavelengths with PAM4 modulation, this QSFP56 module provides reliable 200 Gigabit Ethernet connectivity over single-mode fiber, making it ideal for high-density switching and data center interconnect applications.

Supporting transmission distances up to 2 km with host FEC, the MT-QSFP56-FR4 combines a compact QSFP56 form factor, low power consumption, and Digital Diagnostic Monitoring (DDM) to deliver stable and efficient optical transmission for modern 200G Ethernet networks.

Get a Quote ⟩

Specifications

Primary Application: 200G Ethernet, Enterprise Networks, Cloud Computing, and Data Center Interconnect (DCI)
Data Rate: Up to 212.5 Gbps aggregate (4 × 53.125 Gbps PAM4 lanes)
Transmission Distance: Up to 2 km over single-mode fiber (SMF) with host FEC
Wavelength: CWDM4 (1271 / 1291 / 1311 / 1331 nm)
Optical Interface: Duplex LC connector
Optical Technology: 4-channel CWDM EML transmitter with PIN photodiode receiver
Electrical Interface: 200GAUI-4 (4 × 53.125 Gbps PAM4)
Form Factor: QSFP56, hot-pluggable
Power Consumption: ≤ 5 W
Power Supply: Single +3.3 V
Operating Temperature: 0°C to +70°C
Diagnostics: Digital Diagnostic Monitoring (DDM) via QSFP56 MSA interface
Compliance: IEEE 802.3bs 200GBASE-FR4, QSFP56 MSA, RoHS compliant
