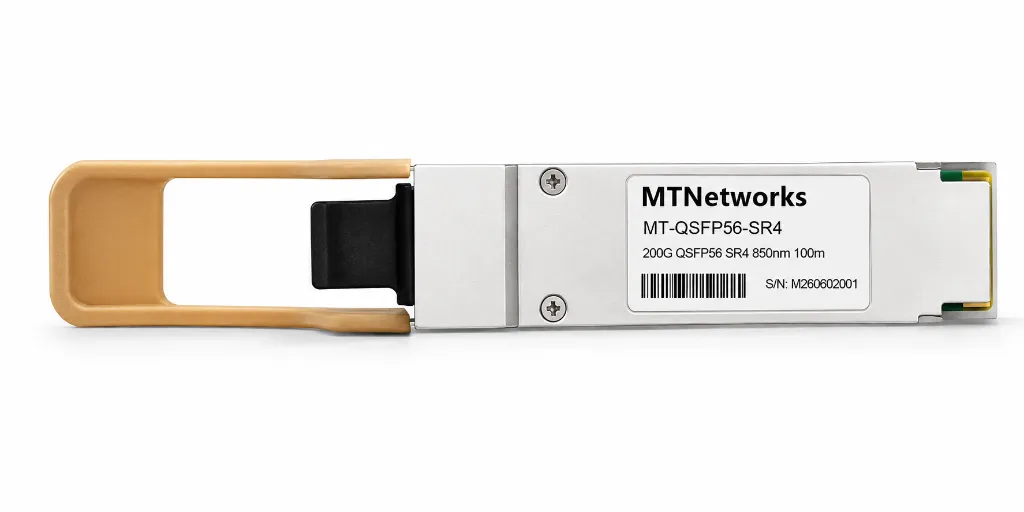

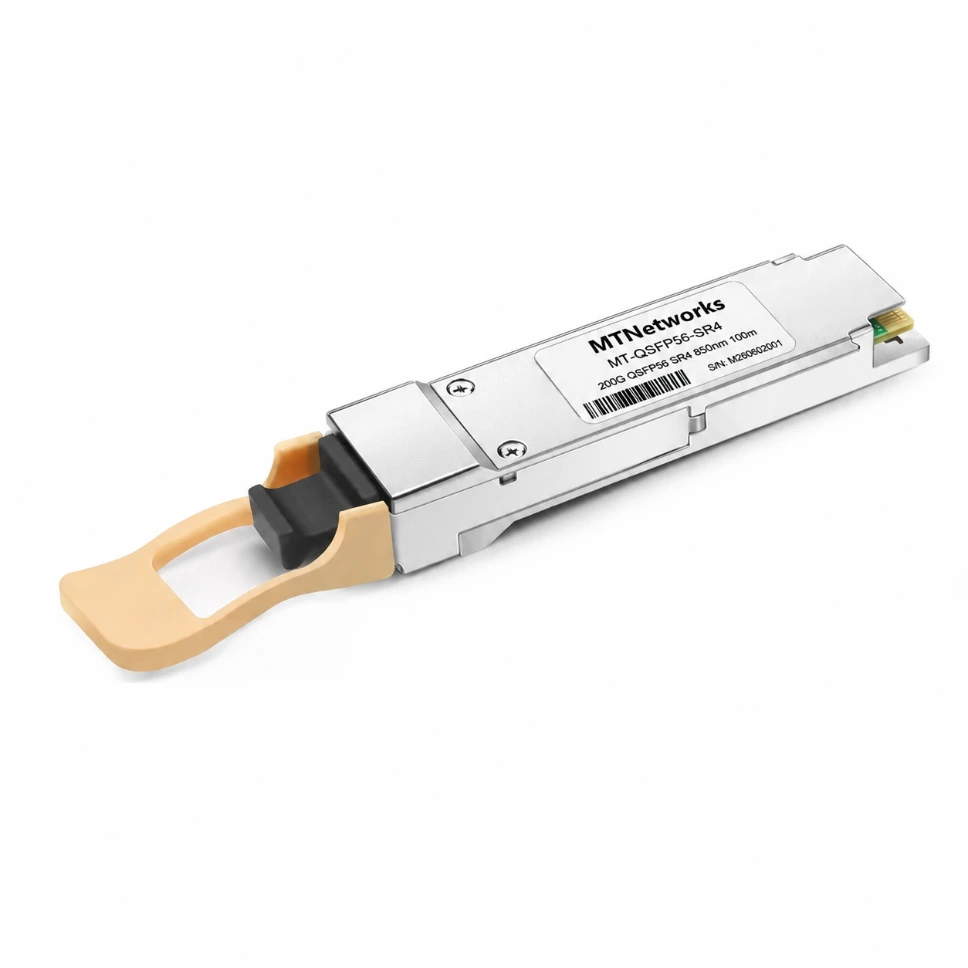

MTNetworks QSFP56 200G SR4 850nm 100m

Name: MTNetworks QSFP56 200G SR4 850nm 100m
Availability: InStock

The MTNetworks MT-QSFP56-SR4 is a high-performance 200G optical transceiver designed for next-generation data centers, cloud computing, high-performance computing (HPC), and enterprise networking applications. Utilizing four parallel multimode optical lanes with PAM4 modulation, this QSFP56 module delivers reliable 200 Gigabit Ethernet connectivity for high-density switching and short-reach optical interconnects.

Supporting transmission distances up to 100 meters over OM4 multimode fiber, the MT-QSFP56-SR4 combines a compact QSFP56 form factor, low power consumption, and Digital Diagnostic Monitoring (DDM) to provide stable, high-speed optical connectivity for modern 200G Ethernet deployments.

Get a Quote ⟩

Specifications

Primary Application: 200G Ethernet, High-Performance Computing (HPC), Enterprise Networks, and Data Center Interconnect (DCI)
Data Rate: Up to 212.5 Gbps aggregate (4 × 53.125 Gbps PAM4 lanes)
Transmission Distance: Up to 100 m over OM4 multimode fiber (MMF)
Wavelength: 850 nm VCSEL array
Optical Interface: MPO-12 UPC connector
Optical Technology: 4-channel VCSEL transmitter with PIN photodiode receiver
Electrical Interface: 200GAUI-4 (4 × 53.125 Gbps PAM4)
Form Factor: QSFP56, hot-pluggable
Power Consumption: ≤ 4.5 W
Power Supply: Single +3.3 V
Operating Temperature: 0°C to +70°C
Diagnostics: Digital Diagnostic Monitoring (DDM) via SFF-8636 management interface
Compliance: IEEE 802.3cd 200GBASE-SR4, QSFP56 MSA (SFF-8665), SFF-8636, RoHS compliant
