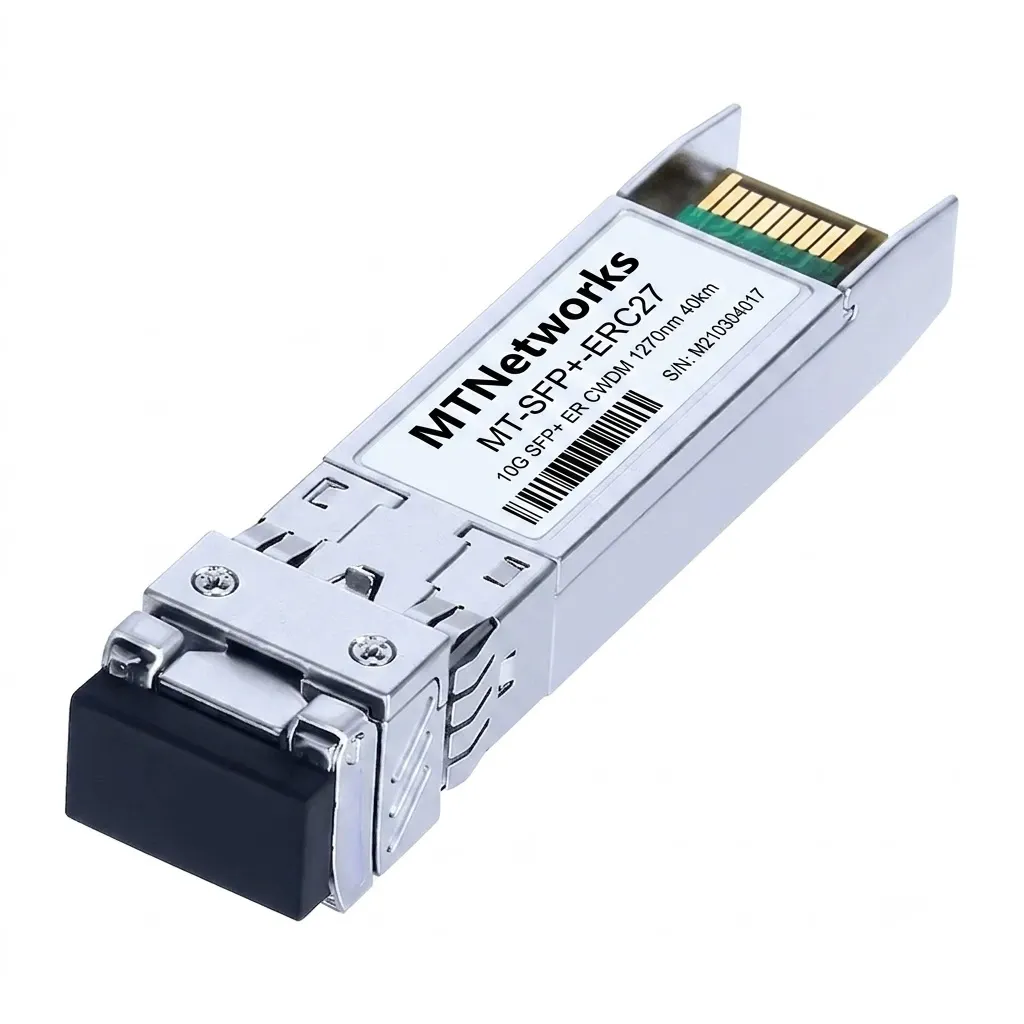

MTNetworks SFP+ 10G ER CWDM 1270nm 40km

Specifications

• Primary Application: 10G CWDM Optical Systems, 10GBASE-LR, 10GBASE-LW, LTE Networks, Enterprise Backbone, Metro Networks, and Telecom Transmission.
• Supported Standards: SFP+ MSA, SFF-8472 with Digital Diagnostic Monitoring (DDM).
• Data Rate: 8.0 Gbps to 10.7 Gbps.
• Transmission Distance: Up to 40 km over Single-Mode Fiber (SMF).
• Transmit Wavelength: 1270 nm CWDM (Code 27).
• Receive Wavelength: 1260–1620 nm.
• Optical Interface: Duplex LC connector.
• Optical Technology: Uncooled DFB laser transmitter with PIN photodiode receiver.
• Average Transmit Power: 0 to +5 dBm.
• Receiver Sensitivity: ≤ −16 dBm.
• Receiver Overload: +0.5 dBm.
• Extinction Ratio: ≥ 3.5 dB.
• Form Factor: Hot-pluggable SFP+.
• Digital Diagnostics: Real-Time Digital Diagnostic Monitoring (DDM) for temperature, supply voltage, laser bias current, transmit optical power, and receive optical power.
• Power Supply: Single +3.3 V.
• Power Consumption: ≤ 1.1 W (320 mA maximum @ 3.3 V).

• Operating Temperature:

  • Standard: 0°C to +70°C
  • Extended: −20°C to +80°C
  • Industrial: −40°C to +85°C
• Compliance: SFP+ MSA, SFF-8472, Class 1 Laser, and RoHS compliant.
