Specifications
- Primary Application: 10G CWDM Optical Systems, 10GBASE-ER, 10GBASE-EW, LTE Networks, Enterprise Backbone, and Optical Transport Networks.
- Supported Standards: SFP+ MSA, SFF-8472 with Digital Diagnostic Monitoring (DDM).
- Data Rate: 1.0 Gbps to 10.7 Gbps.
- Transmission Distance: Up to 40 km over Single-Mode Fiber (SMF).
- Transmit Wavelength: 1470 nm CWDM.
- Receive Wavelength: 1450–1620 nm.
- Optical Interface: Duplex LC connector.
- Optical Technology: Cooled EML laser transmitter with PIN photodiode receiver.
- Average Transmit Power: −1 to +2 dBm.
- Receiver Sensitivity: ≤ −15.5 dBm.
- Receiver Overload: +0.5 dBm.
- Extinction Ratio: ≥ 6.0 dB.
- Form Factor: Hot-pluggable SFP+.
- Digital Diagnostics: Real-Time Digital Diagnostic Monitoring (DDM) for temperature, supply voltage, laser bias current, transmit optical power, and receive optical power.
- Power Supply: Single +3.3 V.
- Power Consumption: ≤ 1.82 W (550 mA maximum @ 3.3 V).
- Operating Temperature: 0°C to +70°C.
- Compliance: SFP+ MSA, SFF-8472, Class 1 Laser Product, and RoHS compliant.
Other Wavelenght
| Part Number | Product Description |

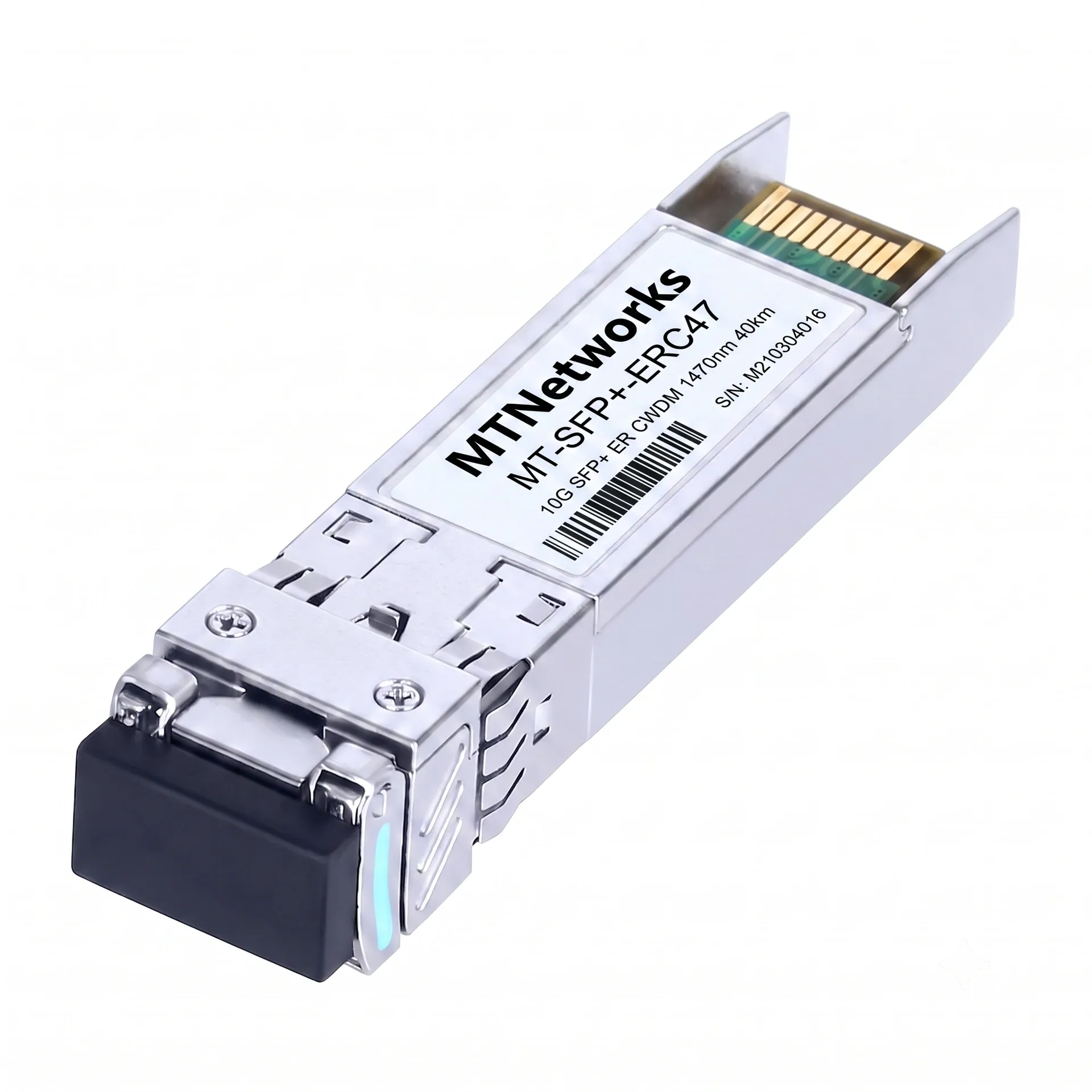

MT-SFP+-ERC47 | 10Gb/s SFP+ CWDM 1470nm 40km Transceiver Module |
MT-SFP+-ERC49 | 10Gb/s SFP+ CWDM 1490nm 40km Transceiver Module |
MT-SFP+-ERC51 | 10Gb/s SFP+ CWDM 1510nm 40km Transceiver Module |
MT-SFP+-ERC53 | 10Gb/s SFP+ CWDM 1530nm 40km Transceiver Module |
MT-SFP+-ERC55 | 10Gb/s SFP+ CWDM 1550nm 40km Transceiver Module |
MT-SFP+-ERC57 | 10Gb/s SFP+ CWDM 1570nm 40km Transceiver Module |
MT-SFP+-ERC59 | 10Gb/s SFP+ CWDM 1590nm 40km Transceiver Module |
MT-SFP+-ERC61 | 10Gb/s SFP+ CWDM 1610nm 40km Transceiver Module |
