Specifications
- Primary Application: SONET OC-48, SDH STM-16, 2× Fibre Channel, Router Interfaces, Server Interfaces, and Optical Communication Systems.
- Supported Standards: SFP MSA and SFF-8472 with Digital Diagnostic Monitoring (DDM).
- Data Rate: Up to 2.5 Gbps.
- Transmission Distance: Up to 10 km over Single-Mode Fiber (SMF).
- Optical Interface: Simplex LC connector (BiDi).
Transmit / Receive Wavelength:
- Version A: 1310 nm Tx / 1550 nm Rx

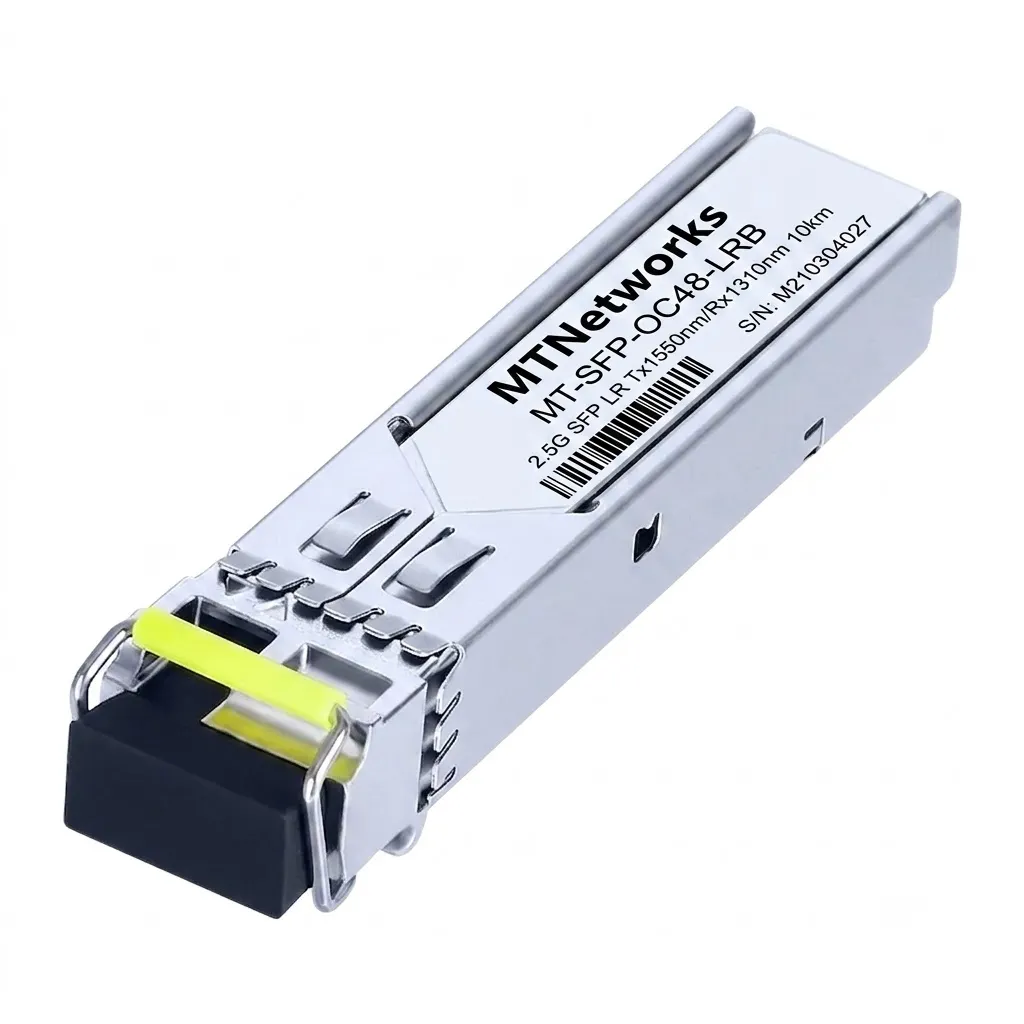

- Version B: 1550 nm Tx / 1310 nm Rx.
- Optical Technology: DFB laser transmitter with PIN photodiode receiver (TIA).
- Average Transmit Power: −8 to −3 dBm.
- Receiver Sensitivity: ≤ −18 dBm.
- Receiver Overload: −1 dBm.
- Extinction Ratio: ≥ 9.0 dB.
- Optical Budget: Approximately 10 dB (Tx Min −8 dBm, Rx Sensitivity −18 dBm).
- Form Factor: Hot-pluggable SFP.
- Digital Diagnostics: Real-Time Digital Diagnostic Monitoring (DDM) supporting temperature, supply voltage, laser bias current, transmit optical power, and receive optical power.
- Power Supply: Single +3.3 V.
- Power Consumption: ≤ 1.0 W (300 mA maximum @ 3.3 V).
Operating Temperature:
- Standard: 0°C to +70°C
- Industrial: −40°C to +85°C.
- Compliance: SFP MSA, SFF-8472, Class 1 Laser Product, and RoHS compliant.
