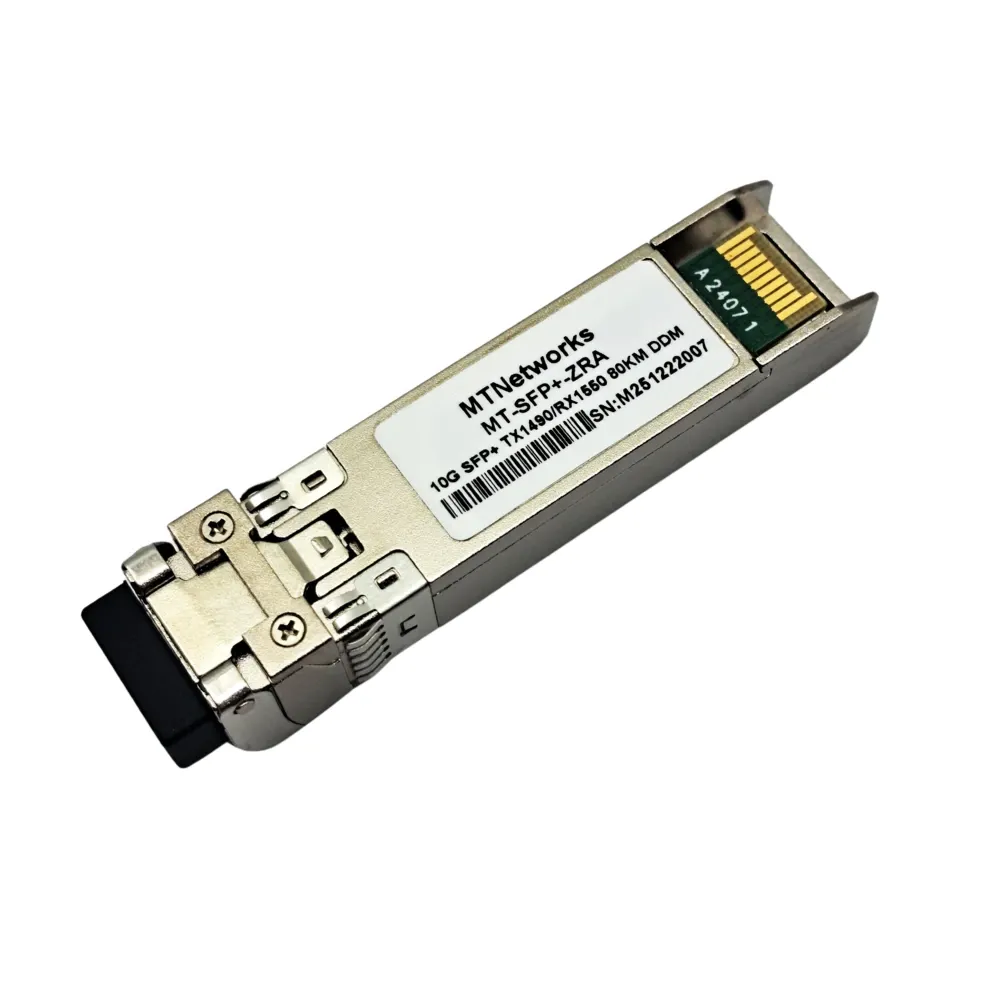

MTNetworks SFP+ BIDI 10G ZR TX 1490nm/1550nm 80km

The MT-SFP+-ZRA/B is a high-performance bi-directional 10Gbps SFP+ optical transceiver designed for single-fiber, long-reach transmission over SMF up to 80 km. Operating at 1490/1550 nm, it utilizes a cooled EML laser and high-sensitivity APD receiver for enhanced performance over extended distances. Fully compliant with IEEE 802.3ae and SFF-8431, it supports digital diagnostics and low power operation, ideal for carrier-grade deployments.
Rp 0.00 Rp 0.00
Rp 14,995,240.00

This combination does not exist.

Specifications


  • Data Rate: 9.95 to 11.3 Gbps
  • Reach: Up to 80 km over single-mode fiber
  • Wavelengths:
    • MT-SFP+-ZRA: Tx 1490 nm / Rx 1550 nm
    • MT-SFP+-ZRB: Tx 1550 nm / Rx 1490 nm
  • Transmitter: Cooled EML laser
  • Receiver: APD photodiode with TIA
  • Average Output Power: 0 to +5 dBm
  • Receiver Sensitivity: ≤ –22 dBm
  • Connector: LC Simplex (BIDI), hot-pluggable
  • Power Consumption: <1.5 W
  • Digital Diagnostics (DDM): Temp, Voltage, Tx Bias, Tx Power, Rx Power
  • Operating Temp: 0°C to 70°C
  • Compliance: IEEE 802.3ae (10GBASE-ZR), SFF-8431, RoHS

Applications:

  • 10G Ethernet (10GBASE-ZR / LW)
  • Single-fiber backhaul links
  • Metro/access network extensions
  • Long-distance point-to-point transport

Ordering Informations


Part Number

Product Description

MT-SFP+-ZRA

SFP+Bidi,9.95 to 11.3Gb/s, 1490/1550nm,80km, 0~70℃, with Digital Diagnostic Monitor

MT-SFP+-ZRB

SFP+Bidi,9.95 to 11.3Gb/s, 1550/1490nm,80km, 0~70℃, with Digital Diagnostic Monitor
