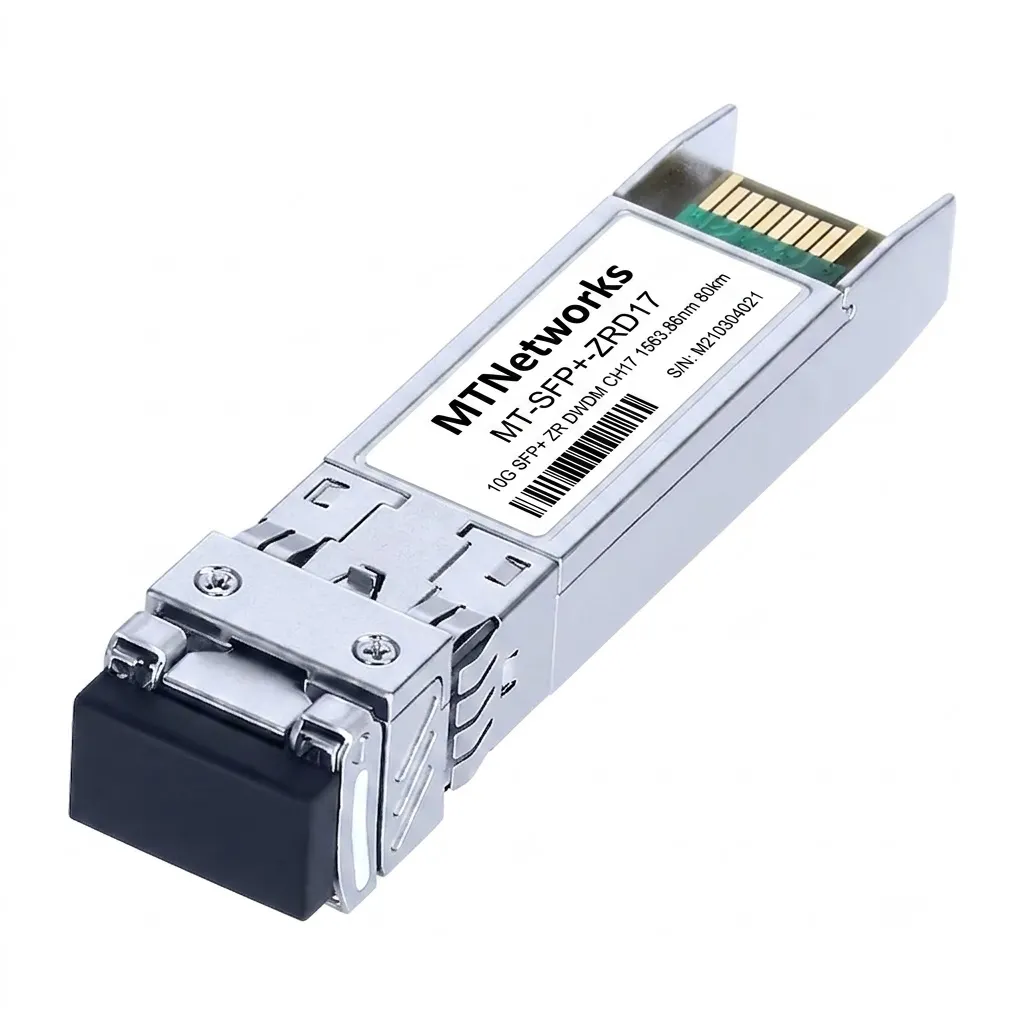

MTNetworks SFP+ 10G ZR DWDM CH17 1563.86nm 80km

Specifications

• Primary Application: 10G DWDM Optical Systems, 10GBASE-ZR, 10GBASE-ZW, LTE Networks, Metro Networks, Carrier Ethernet, and Optical Transport Systems.
• Supported Standards: SFP+ MSA and SFF-8472 with Digital Diagnostic Monitoring (DDM).
• Data Rate: 8.0 Gbps to 10.7 Gbps.
• Transmission Distance: Up to 80 km over Single-Mode Fiber (SMF).
• DWDM Channel: ITU-T Channel 17.
• Center Frequency: 191.7 THz.
• Transmit Wavelength: 1563.86 nm.
• Receive Wavelength: 1450–1620 nm.
• Optical Interface: Duplex LC connector.
• Optical Technology: Cooled EML laser transmitter with APD photodiode receiver.
• Average Transmit Power: 0 to +4 dBm.
• Receiver Sensitivity: ≤ −23 dBm (BER ≤ 1 × 10⁻¹²).
• Receiver Overload: −7 dBm.
• Extinction Ratio: ≥ 6.0 dB.
• Optical Budget: Approximately 23 dB (Tx Min 0 dBm, Rx Sensitivity −23 dBm).
• Form Factor: Hot-pluggable SFP+.
• Digital Diagnostics: Real-Time Digital Diagnostic Monitoring (DDM) for temperature, supply voltage, laser bias current, transmit optical power, and receive optical power.
• Power Supply: Single +3.3 V.
• Power Consumption: ≤ 2.0 W (600 mA maximum @ 3.3 V).
• Operating Temperature: 0°C to +70°C.
• Compliance: SFP+ MSA, SFF-8472, Class 1 Laser Product, and RoHS compliant.
