MTNetworks SFP28 BIDI 25G ER Tx1295nm/Rx1309nm 60km

Name: MTNetworks SFP28 BIDI 25G ER Tx1295nm/Rx1309nm 60km
Availability: InStock

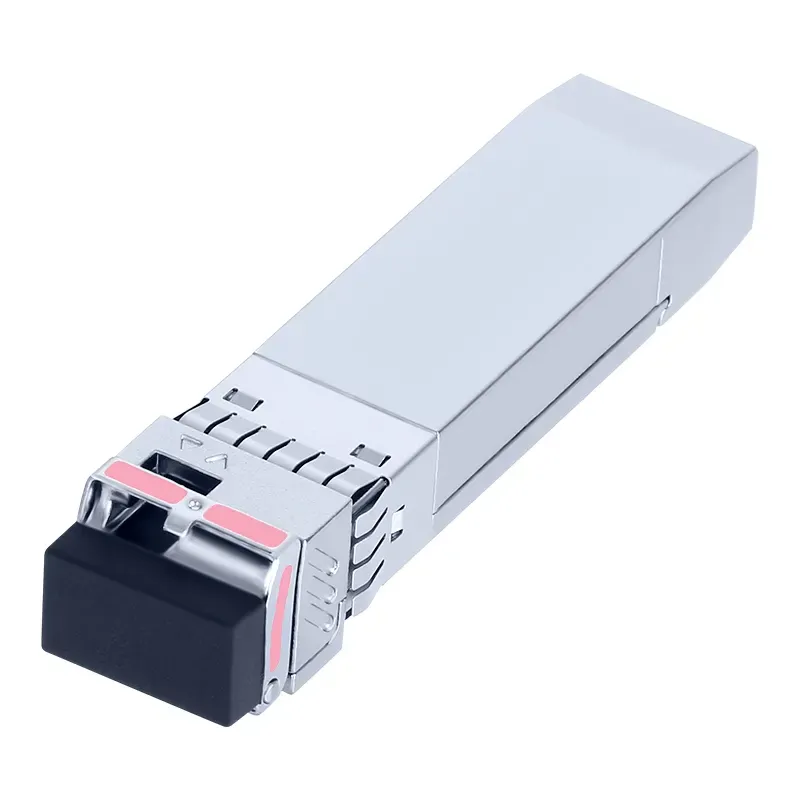

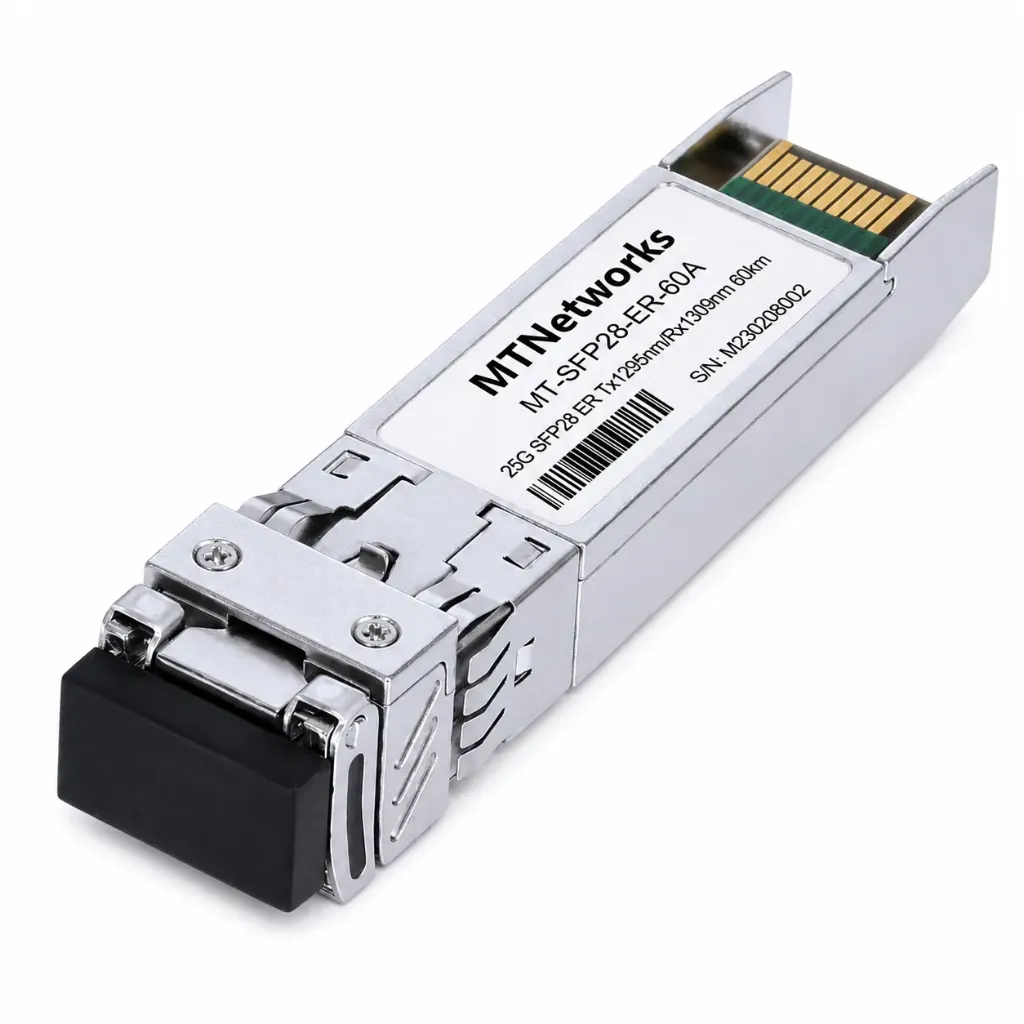

The MTNetworks MT-SFP28-ER-60A/B is a high-performance 25G SFP28 BiDi optical transceiver designed for carrier Ethernet, metro transport, enterprise backbone, mobile fronthaul, and data center interconnect applications. Supporting 25 Gigabit Ethernet, this module utilizes single-fiber bidirectional (BiDi) transmission to deliver reliable 25 Gigabit connectivity over single-mode fiber up to 60 km with Forward Error Correction (FEC). Without FEC, the module supports transmission distances up to 40 km.

Featuring an EML laser transmitter, APD receiver, Digital Diagnostic Monitoring (DDM), and a hot-pluggable SFP28 form factor, the MT-SFP28-ER-60A/B provides excellent optical performance for long-distance 25G optical links while minimizing fiber usage through simplex LC connectivity.

Get a Quote ⟩

Specifications

Primary Application: 25G Ethernet, Carrier Networks, Metro Networks, Enterprise Networks, and Data Center Interconnect (DCI)
Supported Standard: IEEE 802.3cc, SFP28 MSA, SFF-8402, SFF-8419
Data Rate: Up to 25.78125 Gbps
Transmission Distance: Up to 60 km over single-mode fiber (SMF) with FEC; 40 km without FEC
Wavelength: Type A: Tx1295 nm / Rx1309 nm • Type B: Tx1309 nm / Rx1295 nm
Optical Interface: Simplex LC connector
Optical Technology: EML transmitter with APD receiver
Form Factor: SFP28, hot-pluggable
Digital Diagnostics: Built-in Real-Time Digital Diagnostic Monitoring (DDM) via I²C interface
Power Consumption: < 1.6 W (Commercial)
Power Supply: Single +3.3 V
Operating Temperature: 0°C to +70°C (Commercial)
Compliance: IEEE 802.3cc, SFP28 MSA, SFF-8402, SFF-8419, RoHS compliant
