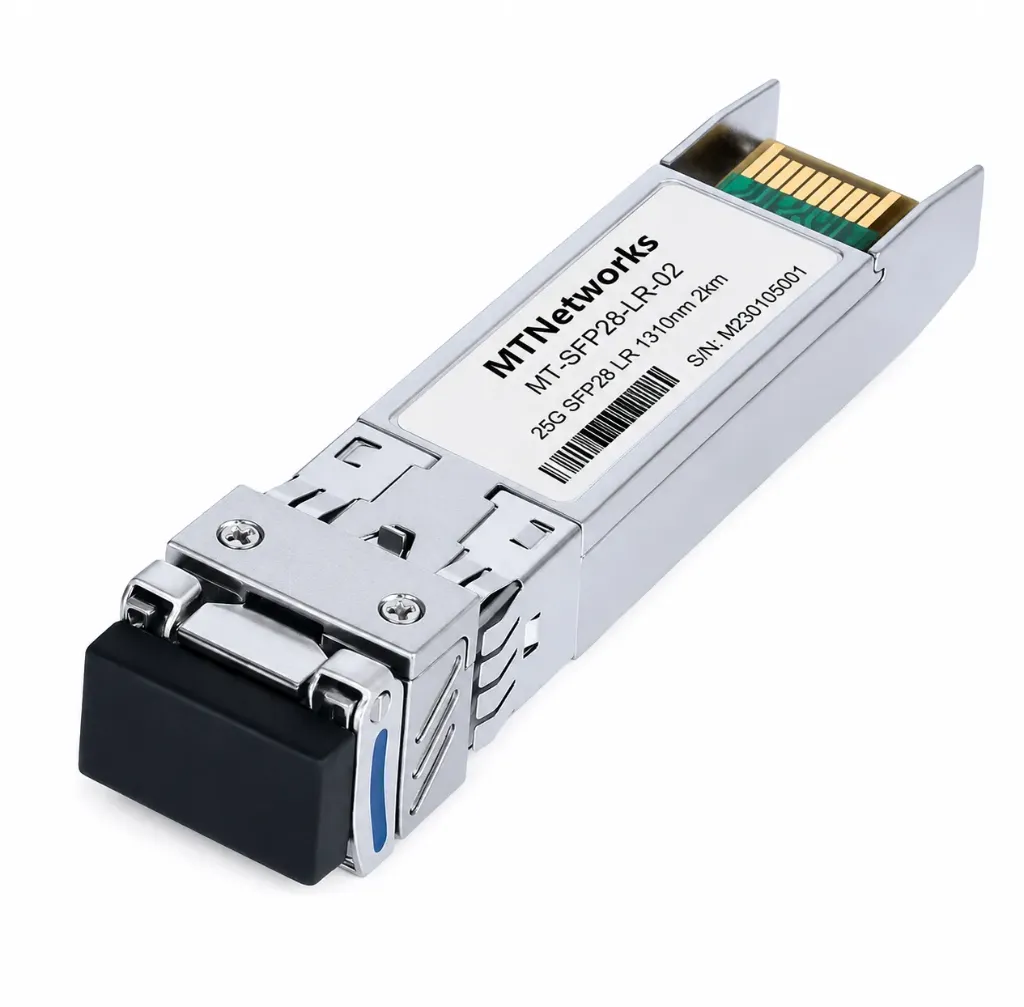

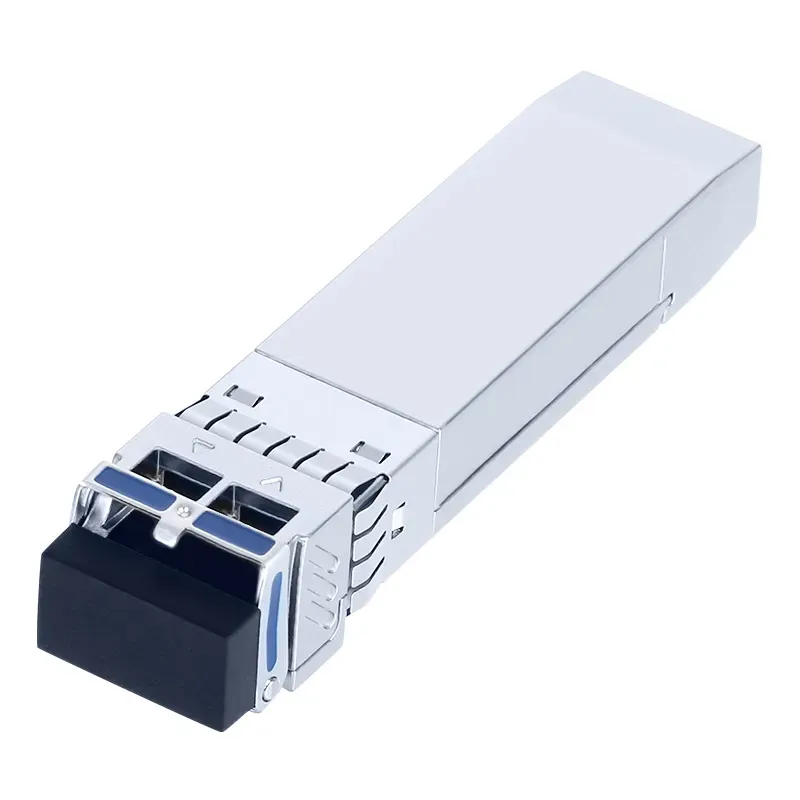

MTNetworks SFP28 25G LR 1310nm 2km

Name: MTNetworks SFP28 25G LR 1310nm 2km
Availability: InStock

The MTNetworks MT-SFP28-LR-02 is a high-performance 25G SFP28 optical transceiver designed for enterprise networks, campus backbone, cloud computing, and data center interconnect applications. Supporting 25GBASE-LR, this module delivers reliable 25 Gigabit Ethernet connectivity over single-mode fiber up to 2 km.

Featuring a 1310 nm DFB laser transmitter, high-sensitivity PIN receiver, Digital Diagnostic Monitoring (DDM), and a hot-pluggable SFP28 form factor, the MT-SFP28-LR-02 provides stable optical performance with low power consumption, making it an ideal solution for short- to medium-reach 25G Ethernet deployments.

Get a Quote ⟩

Specifications

Primary Application: 25G Ethernet, Enterprise Networks, Campus Networks, Cloud Computing, and Data Center Interconnect (DCI)
Supported Standard: 25GBASE-LR, SFP28 MSA, SFF-8472
Data Rate: Up to 25.78 Gbps
Transmission Distance: Up to 2 km over single-mode fiber (SMF)
Wavelength: 1310 nm
Optical Interface: Duplex LC connector
Optical Technology: 1310 nm DFB transmitter with PIN receiver
Form Factor: SFP28, hot-pluggable
Digital Diagnostics: Built-in Real-Time Digital Diagnostic Monitoring (DDM)
Power Consumption: ≤ 1.3 W
Power Supply: Single +3.3 V
Operating Temperature: 0°C to +70°C
Compliance: SFP28 MSA, SFF-8472, RoHS compliant
