Specifications
- Primary Application: 25 Gigabit Ethernet, CPRI Option 10, Enterprise Networks, Metro Access, and Telecom Transport.
- Supported Standards: SFP28 MSA, SFF-8472 with Digital Diagnostic Monitoring (DDM).
- Data Rate: Up to 25.78 Gbps.
- Transmission Distance: Up to 10 km over Single-Mode Fiber (SMF).
- Transmit Wavelength: 1471 nm CWDM cooled EML laser.
- Receive Wavelength: 1450–1620 nm.
- Optical Interface: Duplex LC connector.
- Optical Technology: CWDM cooled EML laser transmitter with PIN photodiode receiver.
- Average Transmit Power: −1 to +6 dBm.
- Receiver Sensitivity: ≤ −14 dBm.
- Receiver Overload: +2 dBm.
- Form Factor: Hot-pluggable SFP28.
- Digital Diagnostics: Real-Time Digital Diagnostic Monitoring (DDM) for temperature, supply voltage, laser bias current, transmit optical power, and receive optical power.
- Power Consumption: < 2.3 W.
- Power Supply: Single +3.3 V.
- Operating Temperature: 0°C to +70°C.
- Compliance: SFP28 MSA, SFF-8472, and RoHS compliant.
Other Wavelengt
| Part Number | Product Description |

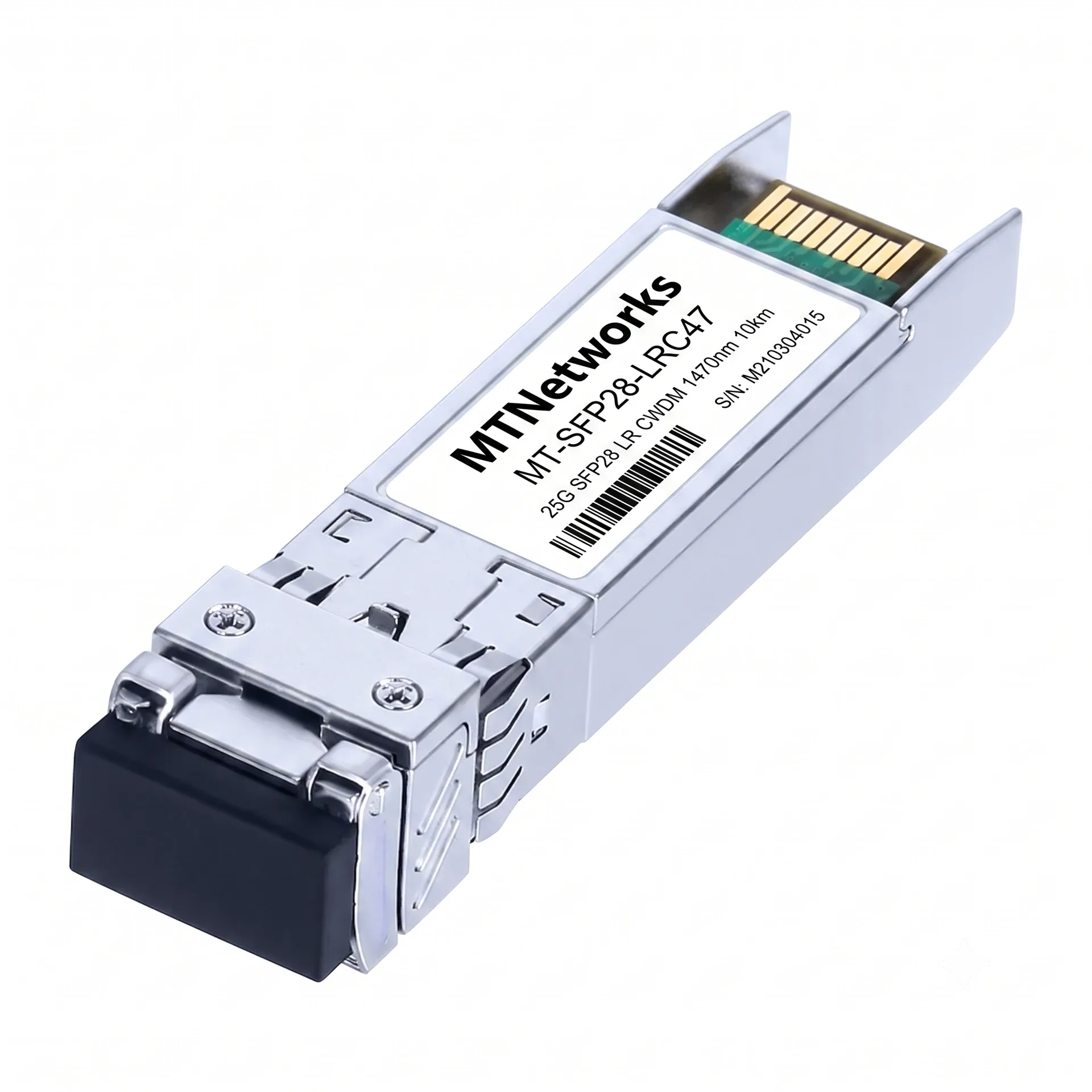

MT-SFP28-LRC47 | 25Gb/s SFP28 CWDM 1470nm 10km Transceiver Module |
MT-SFP28-LRC49 | 25Gb/s SFP28 CWDM 1490nm 10km Transceiver Module |
MT-SFP28-LRC51 | 25Gb/s SFP28 CWDM 1510nm 10km Transceiver Module |
MT-SFP28-LRC53 | 25Gb/s SFP28 CWDM 1530nm 10km Transceiver Module |
MT-SFP28-LRC55 | 25Gb/s SFP28 CWDM 1550nm 10km Transceiver Module |
MT-SFP28-LRC57 | 25Gb/s SFP28 CWDM 1570nm 10km Transceiver Module |
