MTNetworks SFP28 25G ER 850nm 100m

Name: MTNetworks SFP28 25G ER 850nm 100m
Availability: InStock

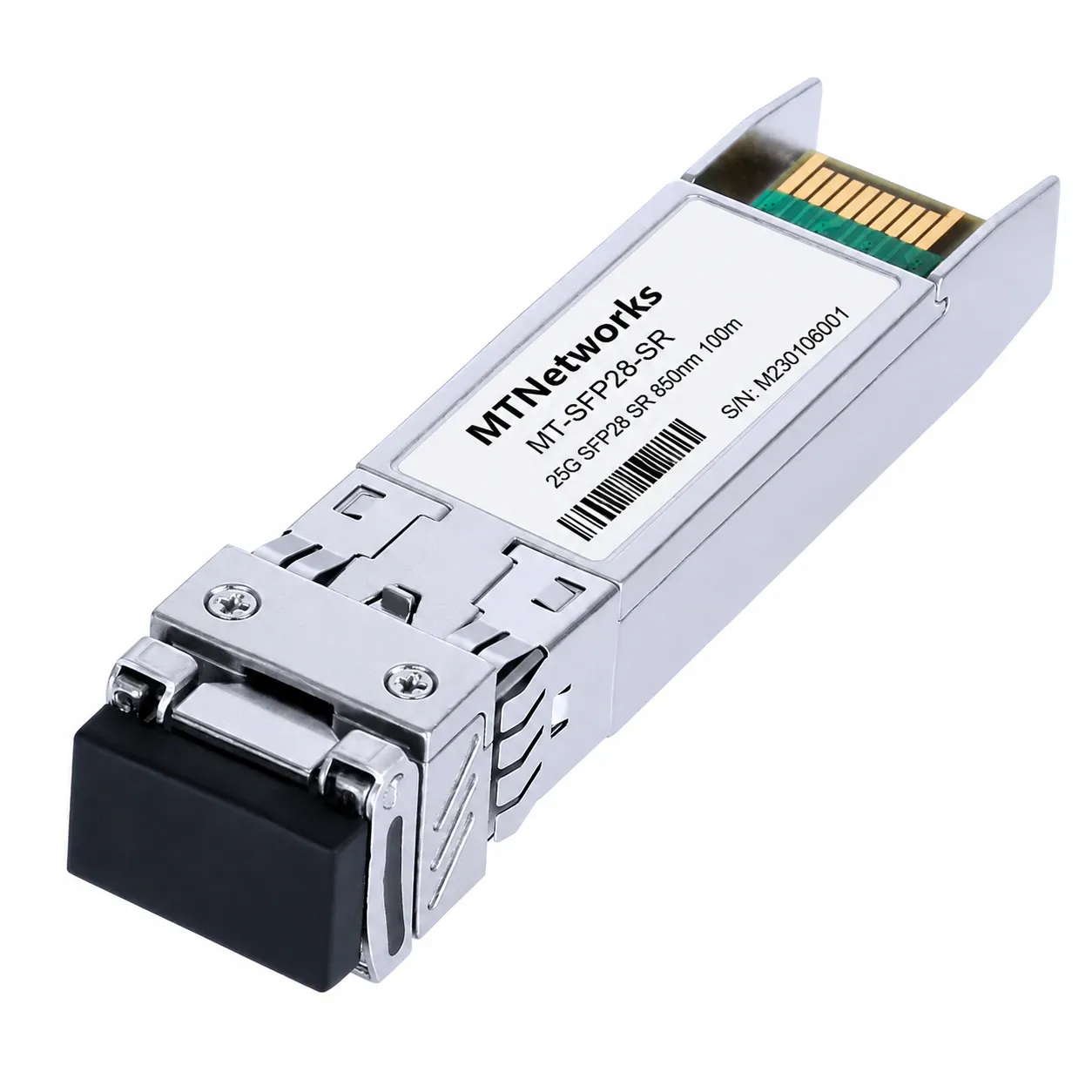

The MTNetworks MT-SFP28-SR is a high-performance 25G SFP28 optical transceiver designed for high-speed Ethernet, cloud computing, enterprise networks, mobile fronthaul, and data center interconnect applications. Supporting 25GBASE-SR, this module utilizes an 850 nm VCSEL laser transmitter and PIN photodiode receiver to deliver reliable 25 Gigabit Ethernet connectivity over multimode fiber up to 100 m on OM4 and 70 m on OM3 fiber.

Featuring Digital Diagnostic Monitoring (DDM), a hot-pluggable SFP28 form factor, low power consumption, and full compliance with the SFP28 MSA, the MT-SFP28-SR provides a cost-effective and high-density solution for modern 25G Ethernet and eCPRI network deployments.

Get a Quote ⟩

Specifications

Primary Application: 25G Ethernet, eCPRI, Enterprise Networks, Cloud Computing, and Data Center Interconnect (DCI)
Supported Standard: 25GBASE-SR, SFP28 MSA, SFF-8472
Data Rate: Up to 25.78 Gbps
Transmission Distance: Up to 100 m on OM4 MMF, 70 m on OM3 MMF, and 20 m on OM2 MMF
Wavelength: 850 nm VCSEL
Optical Interface: Duplex LC connector
Optical Technology: 850 nm VCSEL transmitter with PIN photodiode receiver
Form Factor: SFP28, hot-pluggable
Digital Diagnostics: Built-in Real-Time Digital Diagnostic Monitoring (DDM)
Power Consumption: ≤ 1.0 W
Power Supply: Single +3.3 V
Operating Temperature: 0°C to +70°C
Compliance: SFP28 MSA, SFF-8472, RoHS compliant
