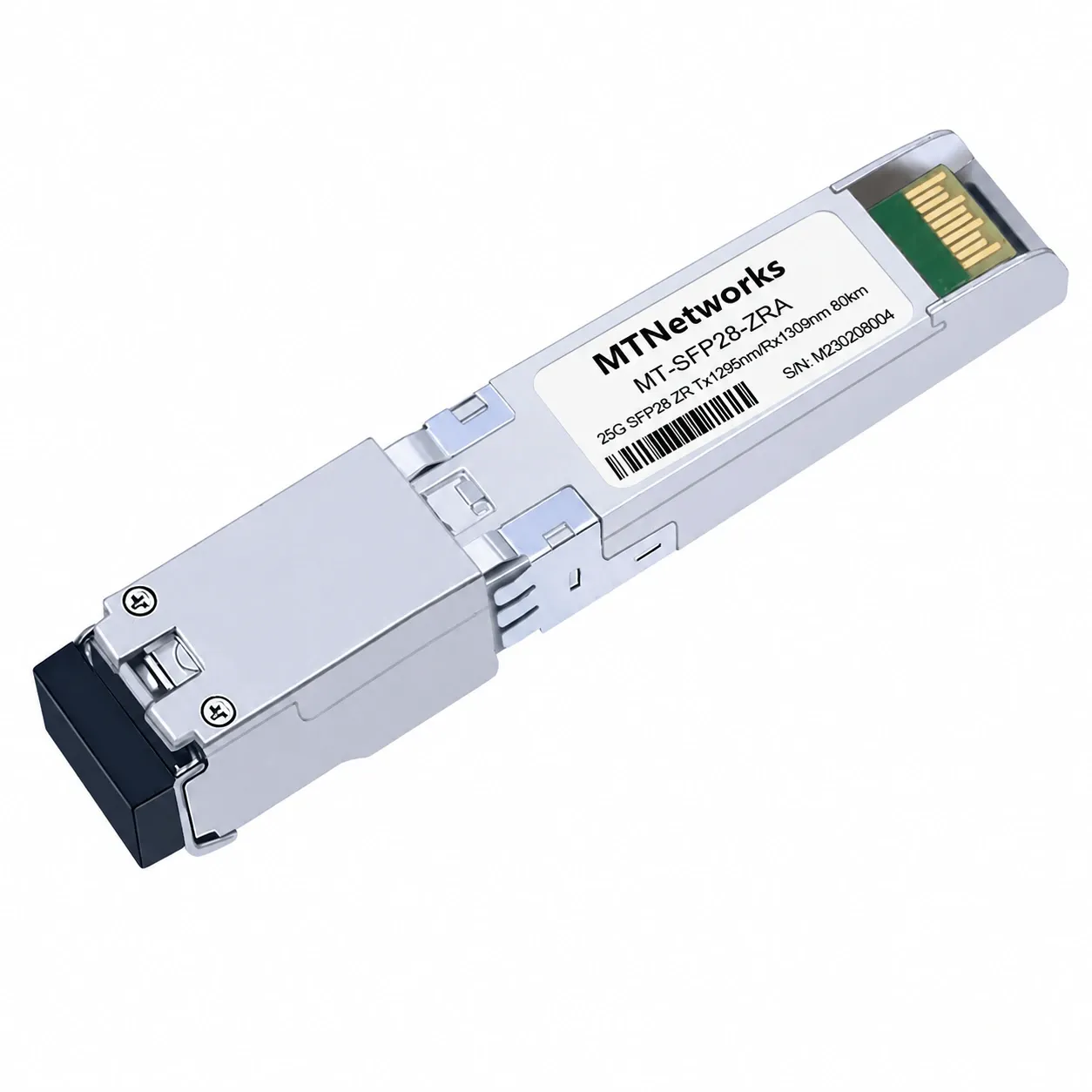

MTNetworks SFP28 BIDI 25G ZR Tx1295nm/Rx1309nm 80km

Name: MTNetworks SFP28 BIDI 25G ZR Tx1295nm/Rx1309nm 80km
Availability: InStock

The MTNetworks MT-SFP28-ZRA/B is a high-performance 25G SFP28 BiDi optical transceiver designed for carrier Ethernet, metro transport, enterprise backbone, mobile fronthaul, and data center interconnect applications. Supporting 25 Gigabit Ethernet and CPRI Option 10, this module utilizes single-fiber bidirectional (BiDi) transmission to deliver reliable 25 Gigabit connectivity over single-mode fiber up to 80 km.

Featuring an EML laser transmitter, integrated SOA with PIN TIA receiver, Digital Diagnostic Monitoring (DDM), and a hot-pluggable SFP28 form factor, the MT-SFP28-ZRA/B provides excellent optical performance and long-distance transmission while reducing fiber infrastructure requirements through simplex LC connectivity.

Get a Quote ⟩

Specifications

Primary Application: 25G Ethernet, CPRI Option 10, Carrier Networks, Metro Networks, and Data Center Interconnect (DCI)
Supported Standard: IEEE 802.3cc, SFP28 MSA, SFF-8472, SFF-8419
Data Rate: Up to 25.78125 Gbps
Transmission Distance: Up to 80 km over G.652 single-mode fiber (SMF)
Wavelength: Type A: Tx1295 nm / Rx1309 nm • Type B: Tx1309 nm / Rx1295 nm
Optical Interface: Simplex LC connector
Optical Technology: EML transmitter with integrated SOA and PIN TIA receiver
Form Factor: SFP28, hot-pluggable
Digital Diagnostics: Built-in Real-Time Digital Diagnostic Monitoring (DDM)
Power Consumption: ≤ 2.5 W
Power Supply: Single +3.3 V
Operating Temperature: 0°C to +70°C
Compliance: IEEE 802.3cc, SFP28 MSA, SFF-8472, SFF-8419, RoHS compliant
