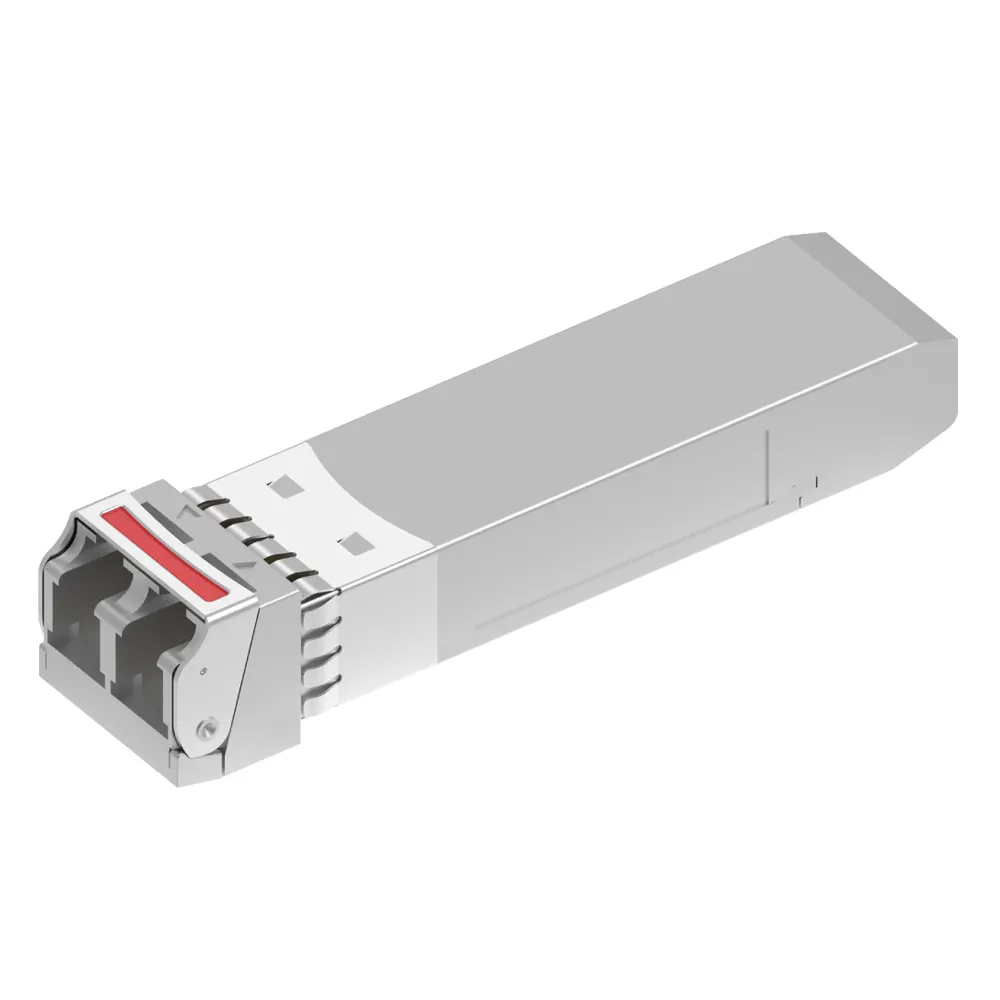

MTNetworks SFP56 50G SR 1310nm 40km

Name: MTNetworks SFP56 50G SR 1310nm 40km
Availability: InStock

The MTNetworks MT-SFP56-ER is a high-performance 50G SFP56 optical transceiver designed for enterprise networks, carrier Ethernet, metro transport, and data center interconnect applications. Supporting 50GBASE-ER, this module utilizes 53.125 Gbps PAM4 modulation with a cooled EML transmitter and high-sensitivity APD receiver to deliver reliable long-distance optical transmission over single-mode fiber up to 40 km.

Featuring an integrated DSP, Digital Diagnostic Monitoring (DDM), low power consumption, and a hot-pluggable SFP56 form factor, the MT-SFP56-ER provides stable optical performance for next-generation 50 Gigabit Ethernet and carrier network deployments.

Get a Quote ⟩

Specifications

Primary Application: 50G Ethernet, Carrier Networks, Metro Networks, Enterprise Networks, and Data Center Interconnect (DCI)
Supported Standard: IEEE 802.3cd 50GBASE-ER, SFP56 MSA
Data Rate: Up to 53.125 Gbps (26.5625 GBd PAM4)
Transmission Distance: Up to 40 km over single-mode fiber (SMF)
Wavelength: 1311 nm
Optical Interface: Duplex LC connector
Optical Technology: Cooled EML transmitter with APD receiver and integrated DSP
Form Factor: SFP56, hot-pluggable
Digital Diagnostics: Built-in Digital Diagnostic Monitoring (DDM)
Power Consumption: < 3 W
Power Supply: Single +3.3 V
Operating Temperature: 0°C to +70°C
Compliance: IEEE 802.3cd, SFP56 MSA, RoHS compliant
