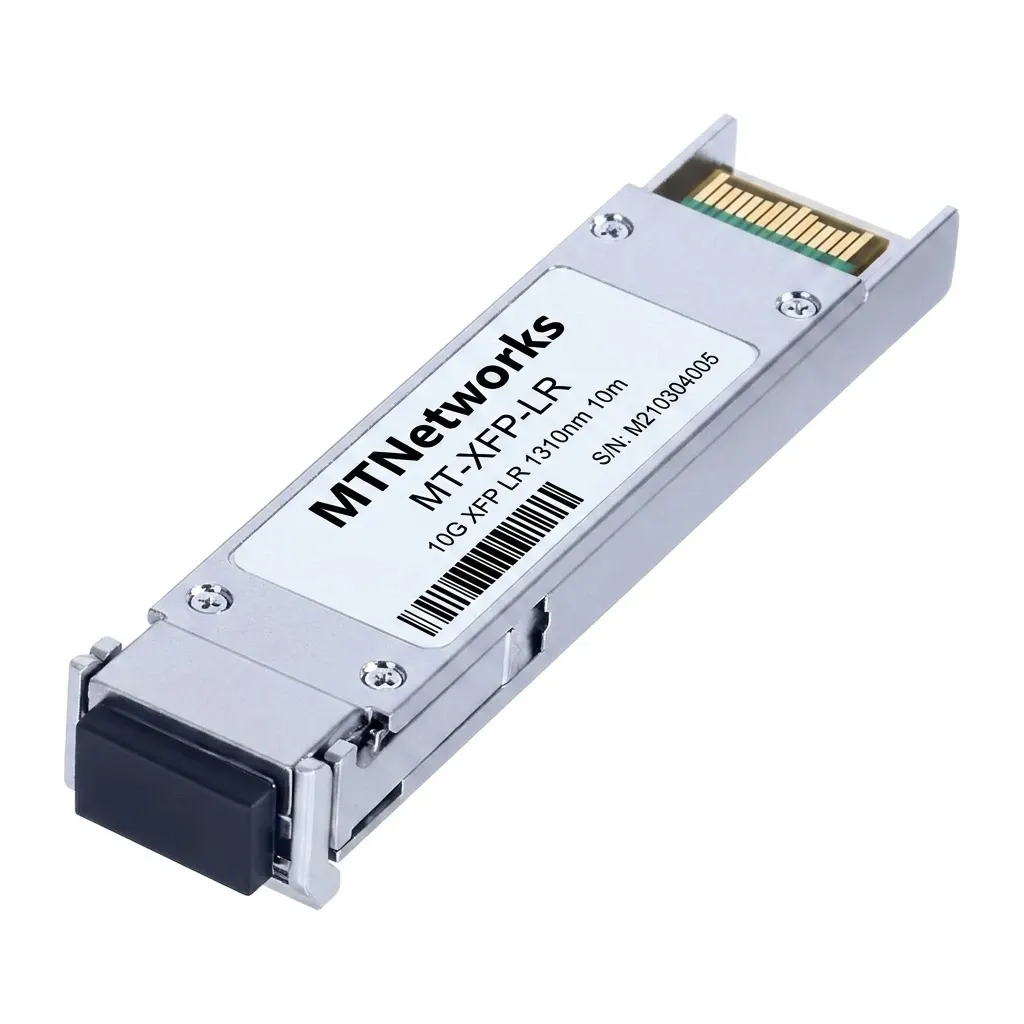

MTNetworks XFP 10G LR 1310nm 10km

Name: MTNetworks XFP 10G LR 1310nm 10km
Availability: InStock

The MTNetworks MT-XFP-LR is a high-performance 10G XFP optical transceiver designed for enterprise networks, carrier Ethernet, metro transport, and data center interconnect applications. Supporting data rates from 9.953 Gbps to 11.1 Gbps, this module delivers reliable optical transmission over single-mode fiber up to 10 km.

Featuring a 1310 nm DFB laser transmitter, high-sensitivity PIN photodiode receiver, Digital Diagnostic Monitoring (DDM), and a hot-pluggable XFP form factor, the MT-XFP-LR provides stable optical performance for 10G Ethernet, SONET/SDH, and Optical Transport Network (OTN) applications while maintaining full compliance with the XFP MSA specification.

Get a Quote ⟩

Specifications

Primary Application: 10 Gigabit Ethernet, SONET OC-192, SDH STM-64, OTN (G.709), Enterprise Networks, Carrier Networks, Metro Networks, and Data Center Interconnect (DCI)
Supported Standards: XFP MSA, 10GBASE-LR/LW, SONET OC-192, SDH STM-64, ITU-T G.709
Data Rate: 9.953 Gbps to 11.1 Gbps
Transmission Distance: Up to 10 km over Single-Mode Fiber (SMF)
Wavelength: 1310 nm
Optical Interface: Duplex LC connector
Optical Technology: 1310 nm DFB transmitter with PIN photodiode receiver
Form Factor: XFP, hot-pluggable
Digital Diagnostics: Real-time Digital Diagnostic Monitoring (DDM) for temperature, supply voltage, laser bias current, transmit optical power, and receive optical power
Power Consumption: < 1.5 W
Power Supply: Single +3.3 V
Operating Temperature: 0°C to +70°C
Compliance: XFP MSA, RoHS compliant
