Specifications
- Primary Application: 10 Gigabit Ethernet, SONET OC-192, SDH STM-64, OTN (G.709), Carrier Ethernet, Metro Networks, Enterprise Backbone, and Telecom Transmission.
- Supported Standards: XFP MSA, 10GBASE-LR/LW, SONET OC-192, SDH STM-64, ITU-T G.709.
- Data Rate: 9.953 Gbps to 11.1 Gbps.
- Transmission Distance: Up to 10 km over Single-Mode Fiber (SMF).
- Wavelength:

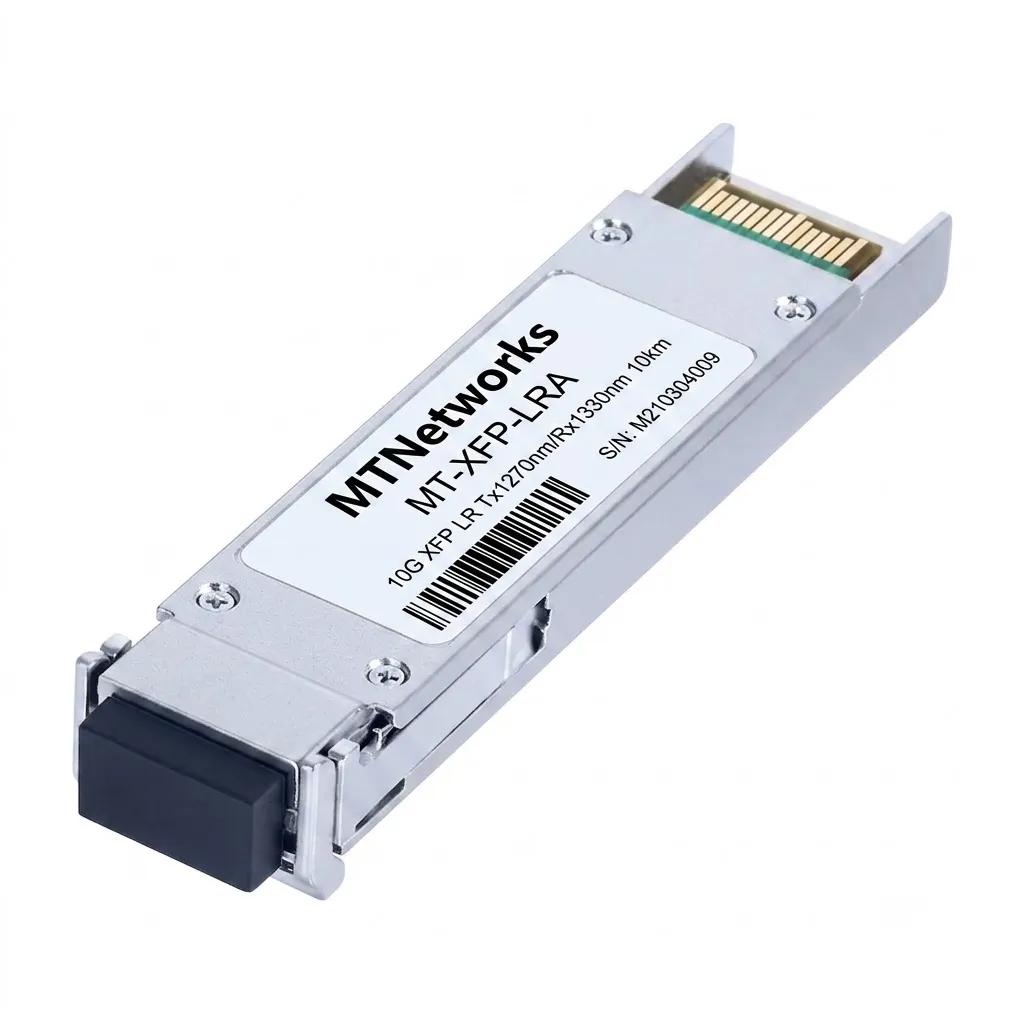

- Type A: Tx1270 nm / Rx1330 nm
- Type B: Tx1330 nm / Rx1270 nm.
- Optical Interface: Simplex LC connector.
- Optical Technology: DFB laser transmitter with PIN photodiode receiver.
- Average Transmit Power: −5 to −1 dBm.
- Receiver Sensitivity: ≤ −14.5 dBm.
- Form Factor: Hot-pluggable XFP.
- Digital Diagnostics: Digital Diagnostic Monitoring (DDM) for temperature, supply voltage, laser bias current, transmit optical power, and receive optical power.
- Power Consumption: < 1.5 W.
- Power Supply: Single +3.3 V.
- Operating Temperature: 0°C to +70°C.
- Compliance: XFP MSA and RoHS compliant.
