Specifications
- Primary Application: 10 Gigabit Ethernet, SONET OC-192, SDH STM-64, OTN (G.709), Carrier Ethernet, Metro Networks, Enterprise Backbone, and Telecom Transmission
- Supported Standards: XFP MSA, 10GBASE-ZR/LW, SONET OC-192, SDH STM-64, ITU-T G.709
- Data Rate: 9.953 Gbps to 11.1 Gbps
- Transmission Distance: Up to 60 km over Single-Mode Fiber (SMF)
Wavelength:

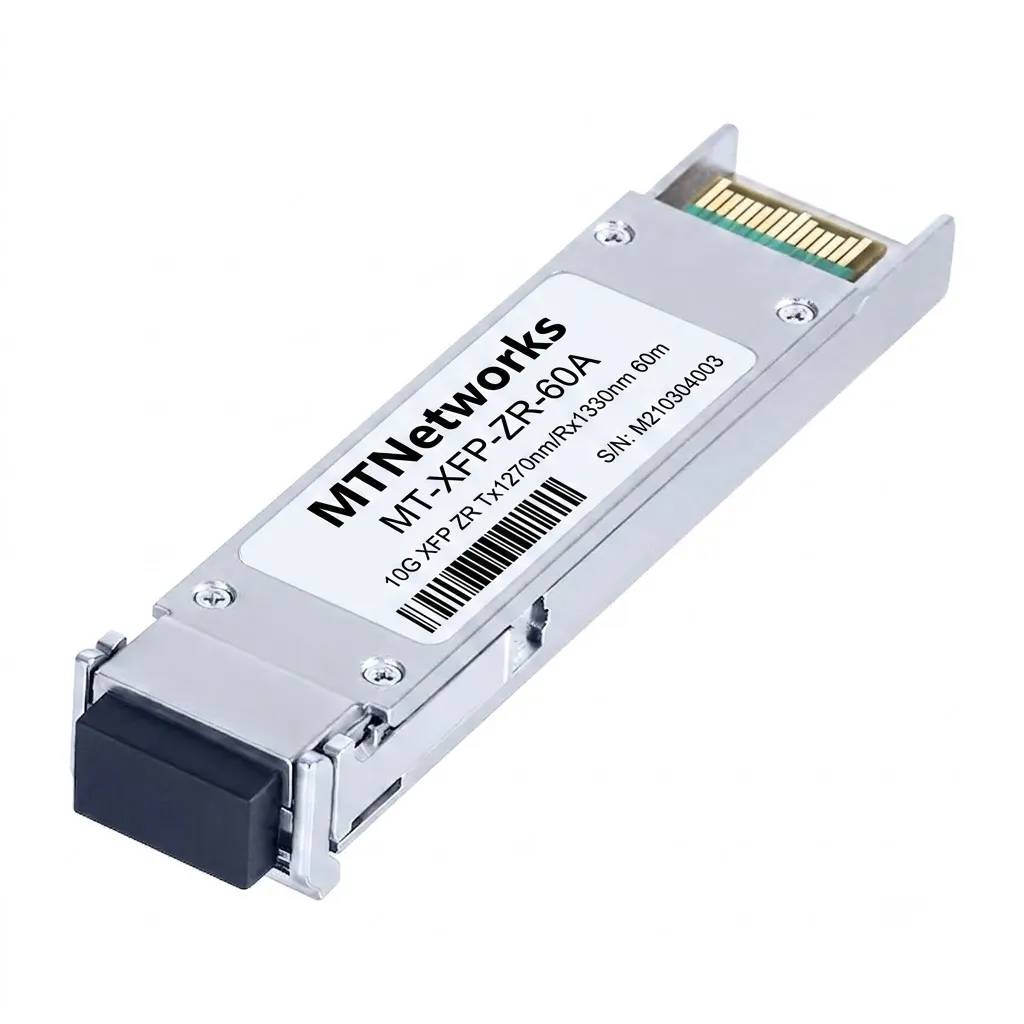

- Type A: Tx1270 nm / Rx1330 nm
- Type B: Tx1330 nm / Rx1270 nm
- Optical Interface: Simplex LC connector
- Optical Technology: DFB laser transmitter with APD photodiode receiver
- Average Transmit Power: +1 to +6 dBm
- Receiver Sensitivity: ≤ -20 dBm

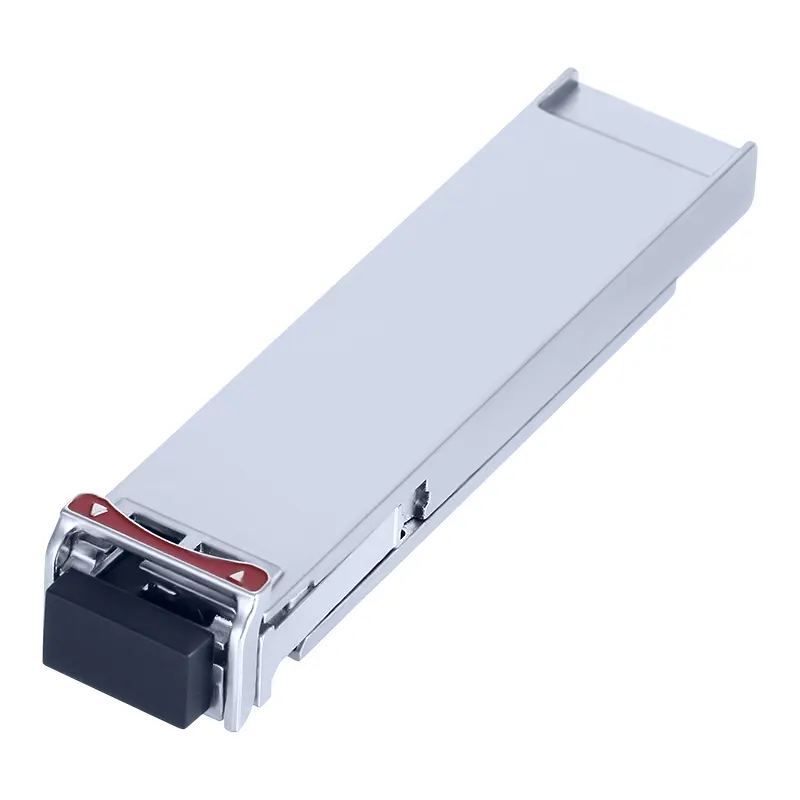

- Form Factor: XFP, hot-pluggable
- Digital Diagnostics: Digital Diagnostic Monitoring (DDM) for temperature, supply voltage, laser bias current, transmit optical power, and receive optical power
- Power Consumption: < 1.5 W
- Power Supply: Single +3.3 V
- Operating Temperature: 0°C to +70°C
- Compliance: XFP MSA and RoHS compliant
