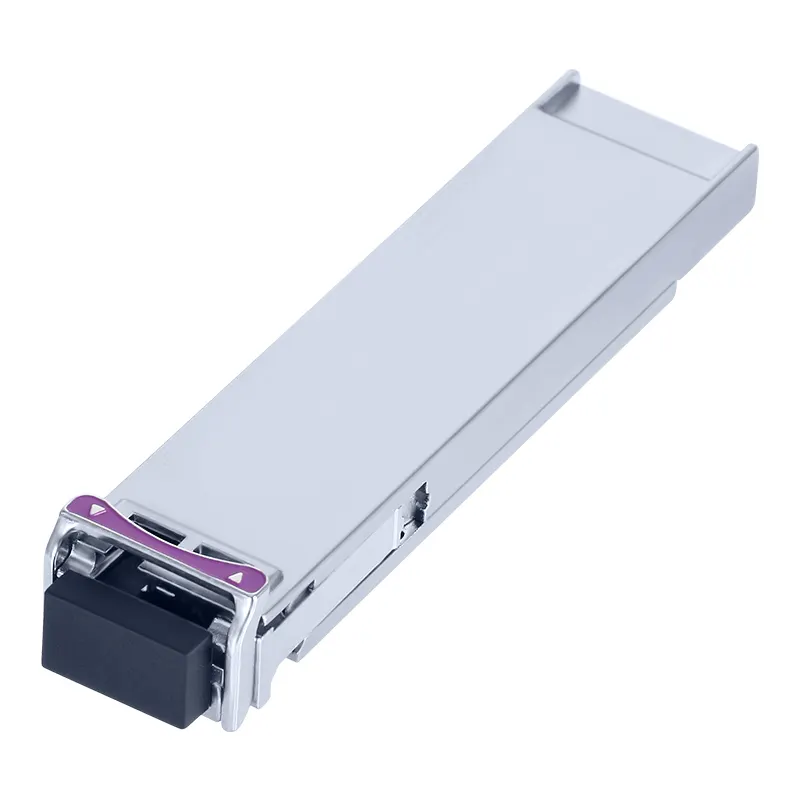

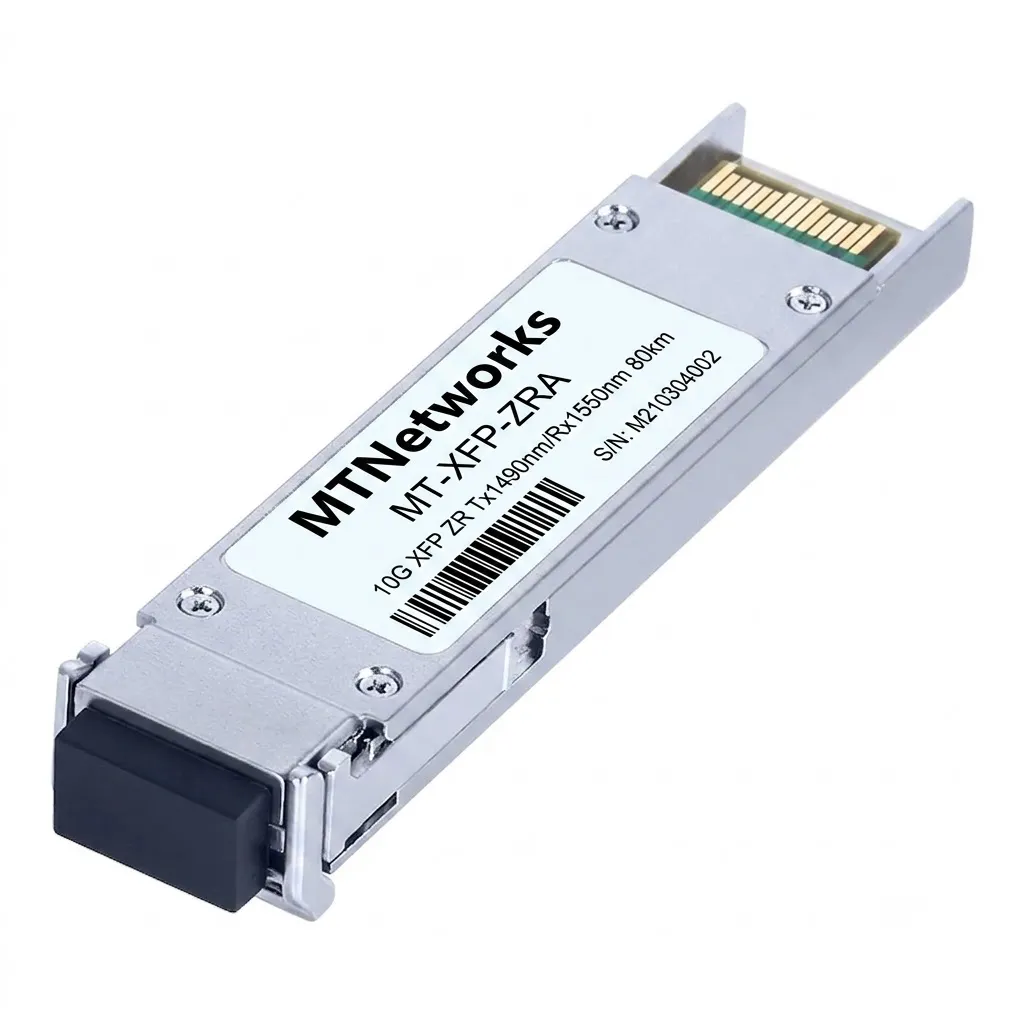

MTNetworks XFP BIDI 10G ZR Tx1490nm/Rx1550nm 80km

Name: MTNetworks XFP BIDI 10G ZR Tx1490nm/Rx1550nm 80km
Availability: InStock

The MTNetworks MT-XFP-ZRA/B is a high-performance 10G XFP BiDi optical transceiver designed for carrier networks, metro transport, enterprise backbone, and long-haul optical communication applications. Supporting data rates from 9.953 Gbps to 11.1 Gbps, this module enables reliable 10 Gigabit Ethernet transmission over a single strand of single-mode fiber up to 80 km using bidirectional (BiDi) optical technology.

Featuring a cooled EML laser transmitter, high-sensitivity APD photodiode receiver, Digital Diagnostic Monitoring (DDM), and a hot-pluggable XFP form factor, the MT-XFP-ZRA/B provides carrier-grade optical performance while reducing fiber infrastructure requirements through simplex LC connectivity.

Get a Quote ⟩

Specifications

Primary Application: 10 Gigabit Ethernet, SONET OC-192, SDH STM-64, OTN (G.709), Carrier Networks, Metro Networks, and Long-Haul Optical Transport
Supported Standards: XFP MSA, 10GBASE-LR/LW, SONET OC-192, SDH STM-64, ITU-T G.709
Data Rate: 9.953 Gbps to 11.1 Gbps
Transmission Distance: Up to 80 km over Single-Mode Fiber (SMF)
Wavelength:
- Type A: Tx1490 nm / Rx1550 nm
- Type B: Tx1550 nm / Rx1490 nm
Optical Interface: Simplex LC connector
Optical Technology: Cooled EML transmitter with APD photodiode receiver
Form Factor: XFP, hot-pluggable
Digital Diagnostics: Real-time Digital Diagnostic Monitoring (DDM) for temperature, supply voltage, laser bias current, transmit optical power, and receive optical power
Power Consumption: < 2.0 W
Power Supply: Single +3.3 V
Operating Temperature: 0°C to +70°C
Compliance: XFP MSA, RoHS compliant
