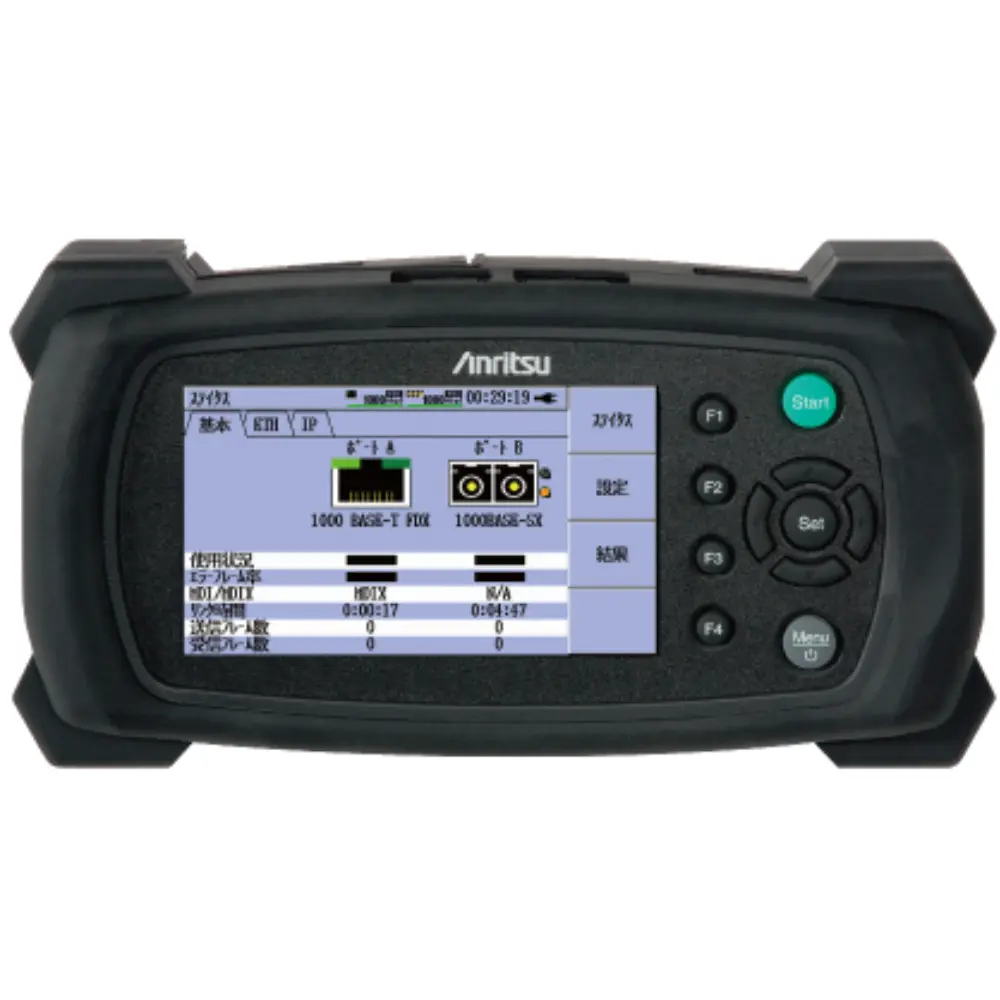

Anritsu Ber Test Ethernet MT9090A-MU909060A3

The Anritsu MU909060A3 is a compact 10/100/1000 Mbps Ethernet BER test module for the MT9090A Network Master platform, designed to verify Ethernet service activation, bit error rate, and link quality in the field. It supports full Layer 1 and Layer 2 testing, including loopback, throughput, latency, and frame loss—making it ideal for metro Ethernet, FTTx, and enterprise network validation.

Rp 0.00 per Day

This combination does not exist.



SpecificationsPacking ListResources

Specifications

  • Supported Rates: 10/100/1000 Mbps (RJ45)
  • BER Testing: PRBS patterns, bit/frame error counts, latency, throughput
  • Traffic Testing: RFC 2544 tests, Layer 1/2 loopback, frame loss, jitter
  • Interfaces: Dual electrical ports (RJ45)
  • Platform Compatibility: Anritsu MT9090A handheld
  • Display: 5.7" color TFT LCD (via MT9090A)
  • Power Supply: Battery-powered via MT9090A mainframe
  • Features: Auto-negotiation, forced mode, test result storage/export

Packing List

  1. ANRITSU MT9090A-MU909060A3
  2. Charger
  3. Cable Patch Cord SM LC Duplex
  4. Softcase 2pcs
  5. SFP 1310nm SM 10KM 2pcs
  6. SFP 850nm MM 2pcs
  7. SFP RJ45 2 Pcs
  8. Flashdisk USB User Manual
  9. Cable Patch Cord MM LC Duplex

Resources

 Anritsu Ber Test Ethernet MT9090A-MU909060A3 Brochure
