MTNetworks SFP28 25G LR CWDM 10km

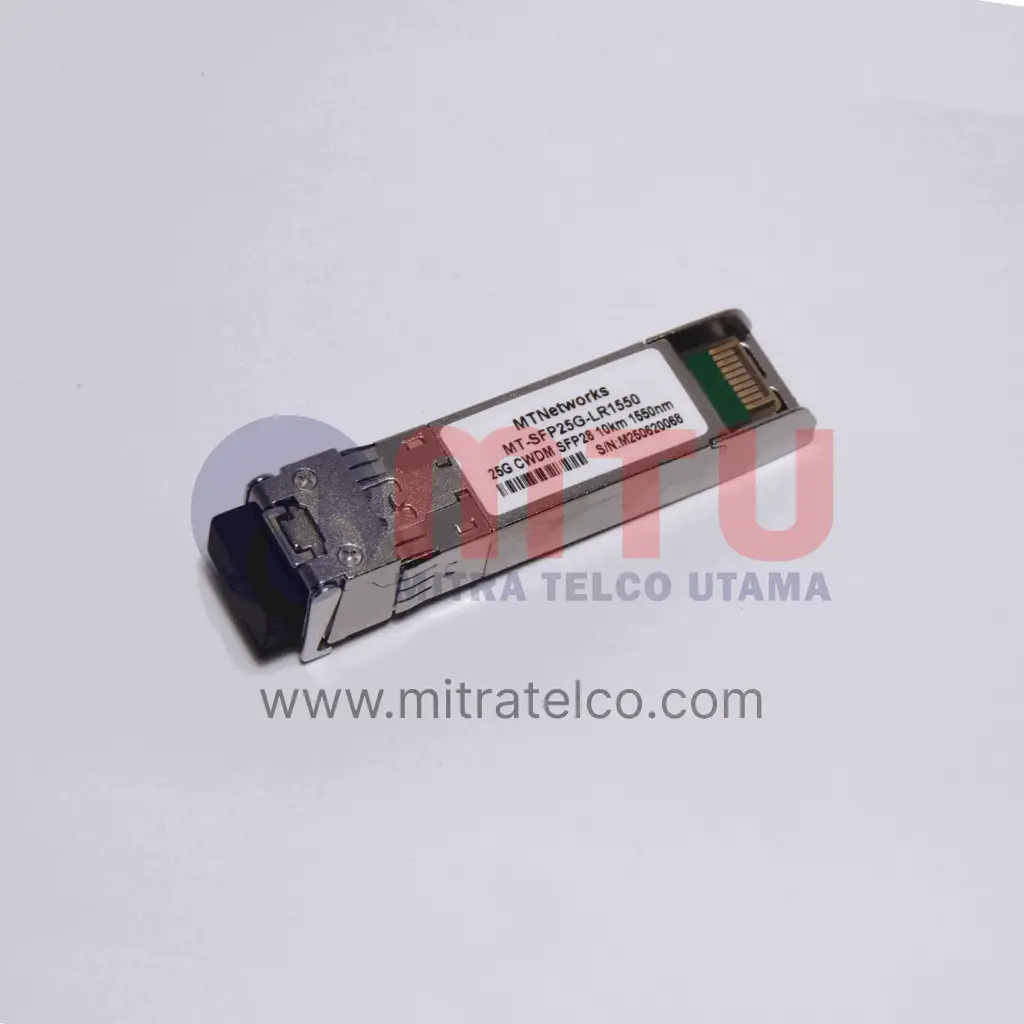

The MT-SFP25G-LRxxxx is a high-performance 25G CWDM SFP28 optical transceiver designed for 10 km transmission over SMF. It supports CWDM wavelengths (1270–1610 nm) and is compliant with SFP28 MSA, SFF-8472, and SFF-8431/8432 standards.
Rp 0.00 Rp 0.00
Rp 1.00

  • Wavelenght (λ)

This combination does not exist.

Specifications


  • Data Rate: Up to 25.78 Gbps
  • Reach: Up to 10 km over SMF
  • Wavelengths: CWDM 1270–1610 nm
  • Transmitter: EML laser
  • Receiver: PIN photodiode
  • Average Output Power: –2 to +4 dBm
  • Receiver Sensitivity: ≤ –10 dBm
  • Connector: LC Duplex, hot-pluggable
  • Digital Diagnostics (DDM): Supported
  • Operating Temp: 0°C to 70°C
  • Compliance: SFP28 MSA, SFF-8431/8432, RoHS

Applications:

  • 25G Ethernet
  • eCPRI / CPRI Option 10 (5G fronthaul)
  • CWDM metro and access networks
  • Data center switch interconnects

Ordering Informations


Part Number Product Description
MT-SFP25G-LR1270 Single mode dual fiber, 25G,10km, CWDM 1270nm, LC interface
MT-SFP25G-LR1290 Single mode dual fiber, 25G,10km, CWDM 1290nm, LC interface
MT-SFP25G-LR1310 Single mode dual fiber, 25G,10km, CWDM 1310nm, LC interface
MT-SFP25G-LR1330 Single mode dual fiber, 25G,10km, CWDM 1330nm, LC interface
MT-SFP25G-LR1350 Single mode dual fiber, 25G,10km, CWDM 1350nm, LC interface
MT-SFP25G-LR1370 Single mode dual fiber, 25G,10km, CWDM 1370nm, LC interface
MT-SFP25G-LR1390 Single mode dual fiber, 25G,10km, CWDM 1390nm, LC interface
MT-SFP25G-LR1410 Single mode dual fiber, 25G,10km, CWDM 1410nm, LC interface
MT-SFP25G-LR1430 Single mode dual fiber, 25G,10km, CWDM 1430nm, LC interface
MT-SFP25G-LR1450 Single mode dual fiber, 25G,10km, CWDM 1450nm, LC interface
MT-SFP25G-LR1470 Single mode dual fiber, 25G,10km, CWDM 1470nm, LC interface
MT-SFP25G-LR1490 Single mode dual fiber, 25G,10km, CWDM 1490nm, LC interface
MT-SFP25G-LR1510 Single mode dual fiber, 25G,10km, CWDM 1510nm, LC interface
MT-SFP25G-LR1530 Single mode dual fiber, 25G,10km, CWDM 1530nm, LC interface
MT-SFP25G-LR1550 Single mode dual fiber, 25G,10km, CWDM 1550nm, LC interface
MT-SFP25G-LR1570 Single mode dual fiber, 25G,10km, CWDM 1570nm, LC interface
MT-SFP25G-LR1590 Single mode dual fiber, 25G,10km, CWDM 1590nm, LC interface
MT-SFP25G-LR1610 Single mode dual fiber, 25G,10km, CWDM 1610nm, LC interface
