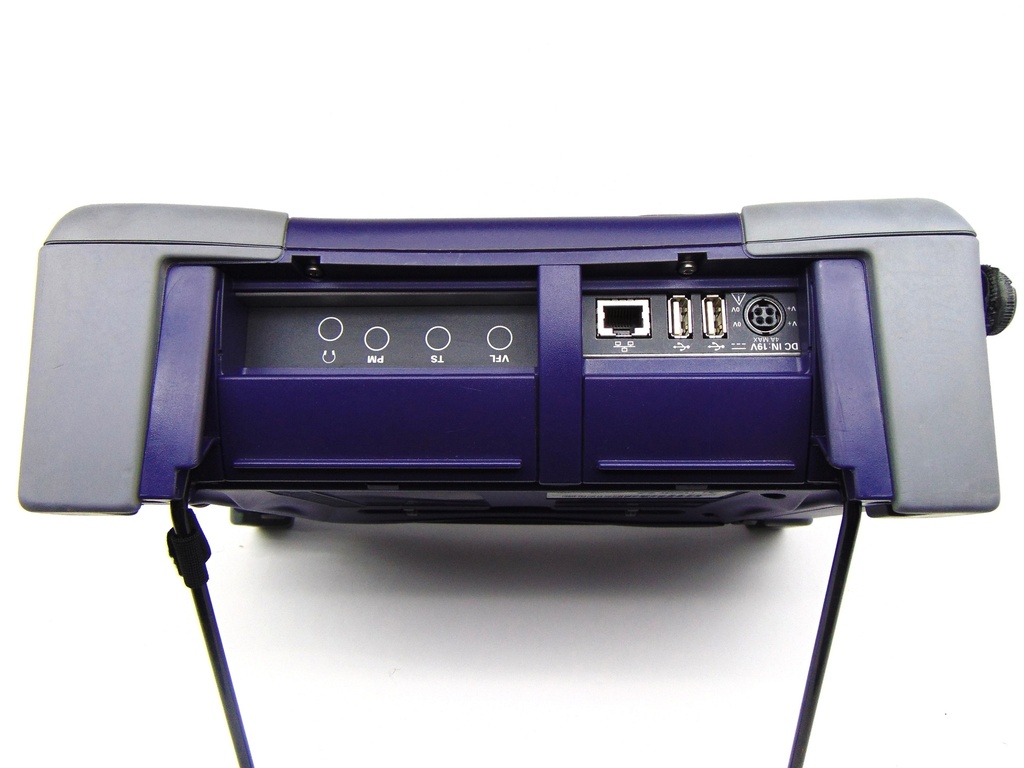

JDSU/VIAVI OTDR SRL MTS6000A-E8146SRL



The JDSU/VIAVI MTS-6000A equipped with the E8146SRL SRL OTDR module is a high-performance quad-wavelength optical time-domain reflectometer designed for precise characterization of both multimode and singlemode fibers. Engineered for LAN, enterprise, data center, access, and short-haul networks, the E8146SRL offers industry-leading event dead zones, fast acquisition, and high dynamic range, enabling accurate detection of splices, connectors, macro-bends, reflections, and fiber faults.

Its combination of 850/1300 nm (MM) and 1310/1550 nm (SM) wavelengths provides full coverage for installation, troubleshooting, certification, and maintenance applications. With advanced automation and seamless integration into the MTS-6000A platform, the module significantly improves productivity and reduces testing time for field technicians.

Rp 0.00 per Day

This combination does not exist.

SpecificationsPacking ListResources

Specifications

Optical Performance

  • Wavelengths: 850 nm, 1300 nm (MM) / 1310 nm, 1550 nm (SM)
  • Dynamic Range:
    • 24/24 dB (850/1300 nm (MM))
    • 40/38 dB (1310/1550 nm (SM))
  • Event Dead Zone:
    • 0.5 m (MM)
    • 0.8 m (SM)
  • Attenuation Dead Zone:
    • 2 m (MM)
    • 4 m (SM)
  • Measurement Capabilities
    • Fiber characterization: splice loss, connector loss, reflectance, attenuation
    • Auto-test and fault locator mode
    • Distance accuracy: ±1 m ± sampling resolution ± 1×10⁻⁵ × distance
    • Up to 128,000 data points for high-resolution traces
    • Multi-trace comparison and automatic pass/fail analysis

Distance & Range

  • Measurement distance: up to 380 km (SM)
  • Sampling resolution: 4 cm
  • Units: km, miles, feet

Fiber & Interface

  • Fiber types supported:
    • 50/125 µm, 62.5/125 µm multimode
    • 9/125 µm singlemode
  • Interchangeable connectors: FC, SC, LC, ST, DIN (UPC/APC)

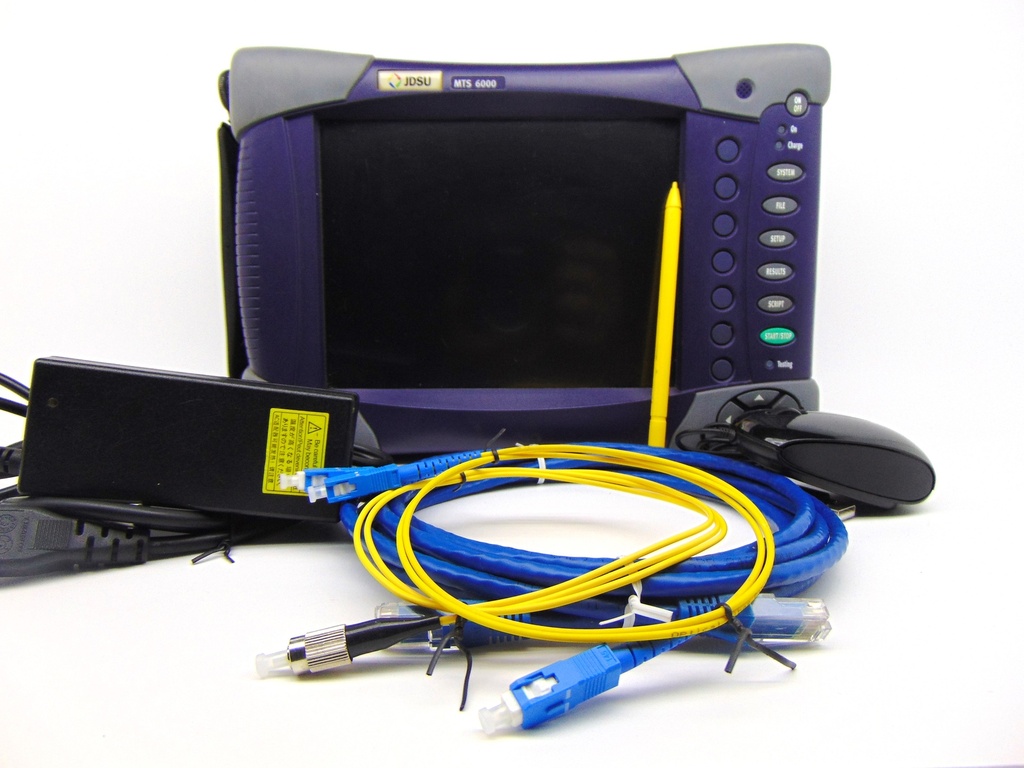

Packing List

  1. Body JDSU/VIAVI OTDR SRL MTS6000A-E8146SRL + Battery Pack
  2. Charger 19V
  3. Cable PatchCord SC to SC
  4. External USB Hardisk (Inside Body)
  5. Pen Stylus
  6. Mouse
  7. Softcase Bag
  8. Cable UTP RJ45 CAT6 3M
  9. Cable PatchCord SC to FC


Resources

JDSU/VIAVI OTDR SRL MTS6000A-E8146SRL Datasheet
