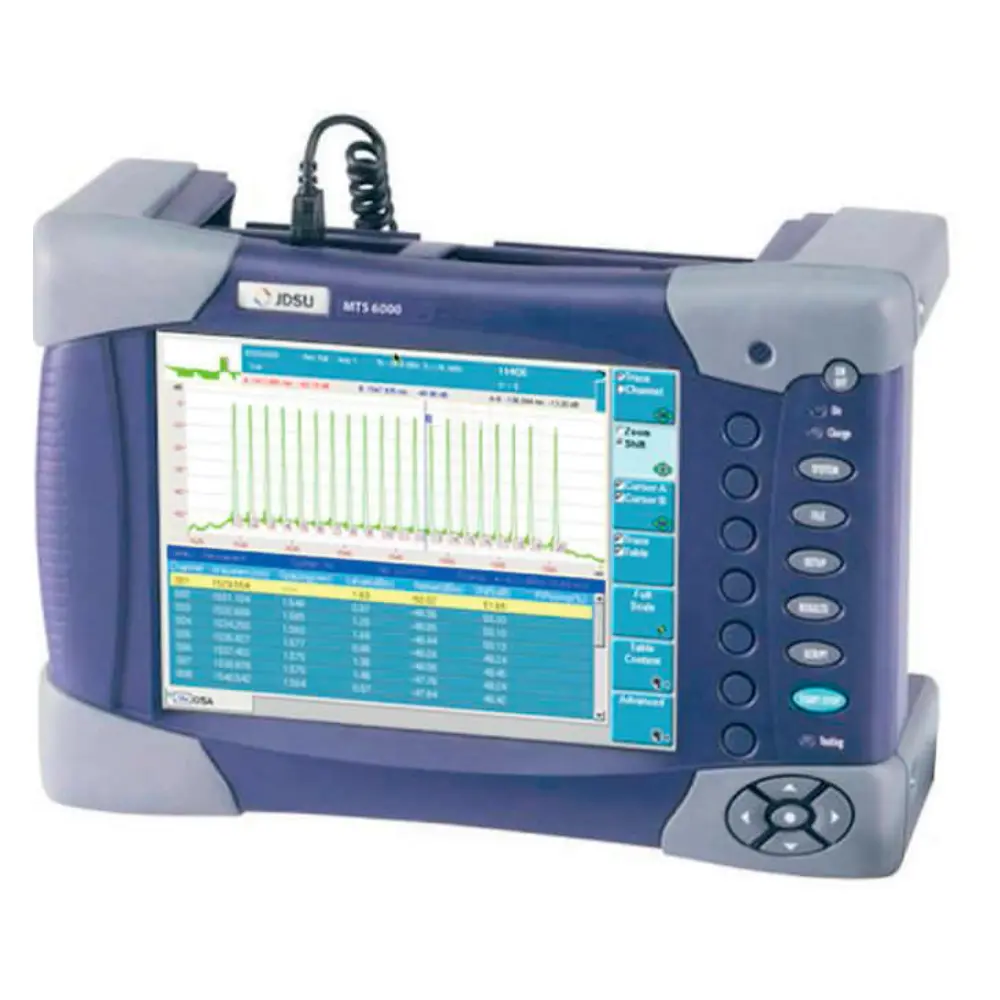

JDSU/VIAVI Optical Spectrum Analyser MTS6000-OSA110M

The OSA-110M is a high-precision optical spectrum analyzer (OSA) module for the VIAVI MTS-6000 platform, designed for CWDM, DWDM, and ROADM network testing. It delivers fast and accurate spectral analysis, ideal for commissioning, troubleshooting, and maintaining modern optical transport networks.

Rp 0.00 per Day

This combination does not exist.

Specifications


  • Wavelength Range: 1250 – 1650 nm
  • Wavelength Accuracy: ±10 pm (typical)
  • Resolution Bandwidth: Down to 20 pm
  • Dynamic Range: >45 dB
  • Input Power Range: –60 dBm to +10 dBm
  • Connector Type: FC/APC (interchangeable)
  • Display: Integrated via MTS-6000 platform touchscreen
  • Features: Channel analysis (ITU grid), OSNR measurement, spectral tilt, pass/fail templates
  • Applications: CWDM/DWDM analysis, amplifier characterization, WDM system verification

Packing List


  1. Body JDSU/VIAVI MTS-6000A-OSA 110M
  2. AC Adapter
  3. Cable PatchCord SC to Sc 1 pcs, SC to FC 1 Pcs
  4. Softcase Bag
  5. Mouse
  6. USB Software

Datasheet
