Specifications
Optical Performance
- Wavelengths: 1310 nm / 1550 nm
- Dynamic Range: up to 47.5 / 47 dB
- Pulse Width: 2 ns to 20 µs
- Event Dead Zone: 0.5 m
- Attenuation Dead Zone: 2 m
- Splitter Attenuation Dead Zone: 25 m after 15 dB splitter / 60 m after 18 dB splitter
- Maximum Data Points: up to 256,000 points
Measurement Capabilities
- Automatic macrobend detection
- Auto and manual cursor modes
- Display range: 0.1 to 400 km
- Distance accuracy: ±(0.75 m + sampling resolution + 0.001% × distance)
- Sampling resolution: from 4 cm
- Reflectance measurement: accuracy ±2 dB, threshold –11 to –99 dB
- Attenuation resolution: 0.001 dB / linearity ±0.03 dB/dB
Integrated Tools
- CW Light Source: 1310 / 1490 / 1550 / 1625 nm
- Optical Power Meter: –3 to –55 dBm range, ±0.5 dB accuracy
- Operating modes: CW, 270 Hz, 330 Hz, 1 kHz, 2 kHz, TWINtest
- Smart Link Mapper (SLM) for automated pass/fail analysis
- FastReport onboard reporting
Distance & Range
- Measurement range: up to 400 km
- Units: km, meters, miles, feet
- Group index range: 1.30000 to 1.70000
Packing List

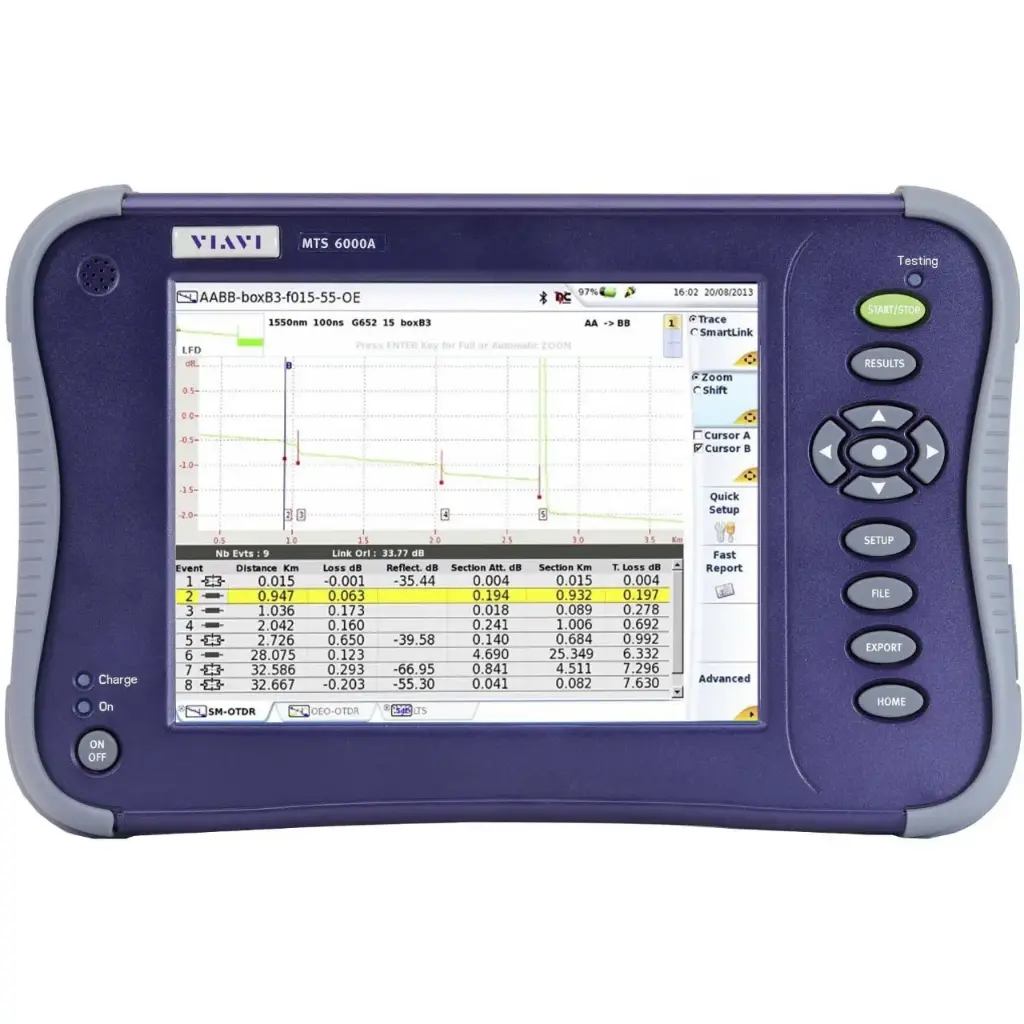

- Body JDSU/VIAVI OTDR LR MTS6000AV2-E8126C + Battery Pack
- Charger 19V
- Cable PatchCord SC to SC
- External USB Hardisk (Inside Body)
- Pen Stylus
- Mouse
- Softcase Bag
- Cable UTP RJ45 CAT6 3M
- Cable PatchCord SC to FC
