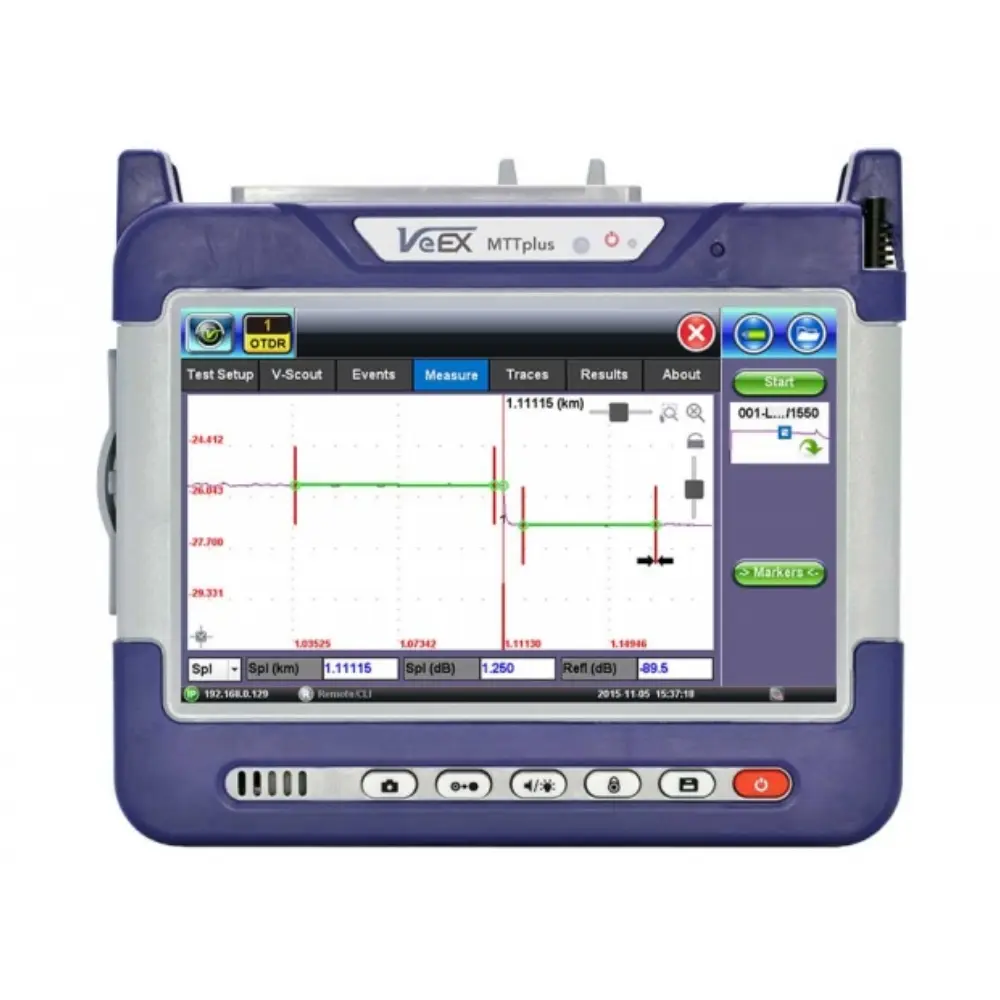

Veex OTDR MR MTTPlus410

The VeEX MTTplus-410 is a modular fiber optics test module designed for comprehensive installation, commissioning, and maintenance of optical networks. Built on the MTTplus modular test platform, this module integrates OTDR, Optical Power Meter (OPM), Optical Light Source (OLS), Optical Loss Test Set (OLTS), and Visual Fault Locator (VFL) functions into a single portable solution, making it ideal for FTTx, metro, long-haul, and PON applications.

With support for both multimode and single-mode wavelengths, high dynamic range, short dead zones, and advanced trace analysis, the MTTplus-410 enables precise fault localization, splice and connector analysis, and detailed fiber link characterization.

Rp 0.00 per Day

Add to cart Buy now
Contact Us
SpecificationsPacking ListResources

Specifications

  • OTDR Wavelengths: 1310 nm / 1550 nm

  • In-Service Testing: Filtered 1625 or 1650 nm port for live PON measurements

  • Dynamic Range: Up to 45 dB (depending on configuration)

  • Dead Zones: Event dead zone < 1 m, attenuation dead zone < 5 m

  • Distance Range: Up to 240 km (single-mode, depending on configuration)

  • Advanced Analysis: V-Scout link mapping with multi-wavelength and multi-pulse acquisition

  • File Format: Telcordia SR-4731 (*.sor)

  • Data Management: Fiberizer Desktop & Fiberizer Cloud integration

  • Optical Connectors: Universal 2.5 mm interface (FC, SC, ST, LC adapters)

  • VFL: 650 nm visible laser, up to 5 km range (optional)

  • OPM (Optional): Multi-wavelength, WaveID detection, standard & high-power versions available

  • OLS (Optional): Stabilized output, CW and modulated modes, WaveID supported

  • Form Factor: Modular, field-portable design

Packing List

  1. Body Veex OTDR MR MTTPlus-MTTPlus410 + Battery Pack
  2. Charger
  3. Cable Patch Cord SM SC
  4. Cable Patch Cord SM FC
  5. USB Software & Manual Book
  6. Soft Bag + Pouch for module

Resources

Veex OTDR MR MTTPlus410 Datasheet
