Specifications
- Primary Application: Portable RF & microwave spectrum analysis
- Frequency Range: 1 MHz to 20 GHz (usable down to 9 kHz)
- Measurement Functions: Channel power, occupied bandwidth, ACPR, C/I, field strength
- Phase Noise Performance: Low phase noise for accurate close-in measurements
- Resolution Bandwidth (RBW): 10 Hz to 3 MHz
- Video Bandwidth (VBW): 1 Hz to 3 MHz
- Displayed Average Noise Level (DANL): High sensitivity with optional preamplifier
- Input Attenuator: 0 to 50 dB, step selectable
- Detectors: Normal, peak, sample, average, RMS, quasi-peak (option)
- Trace Modes: Clear/write, max hold, min hold, average
- Markers: Up to 6 markers with noise and band power functions
- Display: 6.5-inch TFT color LCD, sunlight-readable
- Connectivity: USB host, USB device, LAN
- Data Storage: Internal memory for trace and setup storage
- Battery Operation: Approx. 3–3.5 hours typical
- Warm-Up Time: ~5 minutes
- Form Factor: Rugged handheld, field-ready design
Packing List

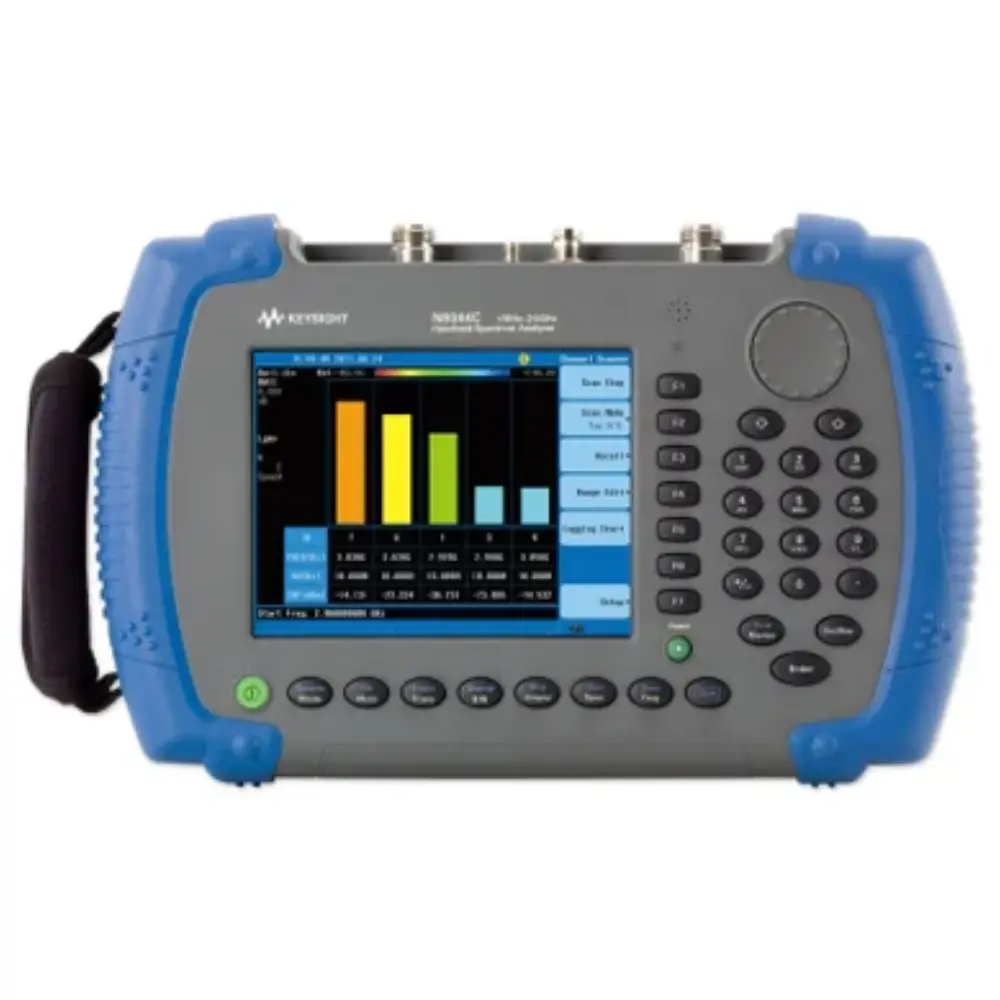

1. Body N9344C + Battery Pack
2. Soft Carrying Case
3. AC-DC Adapter with AC power cord
