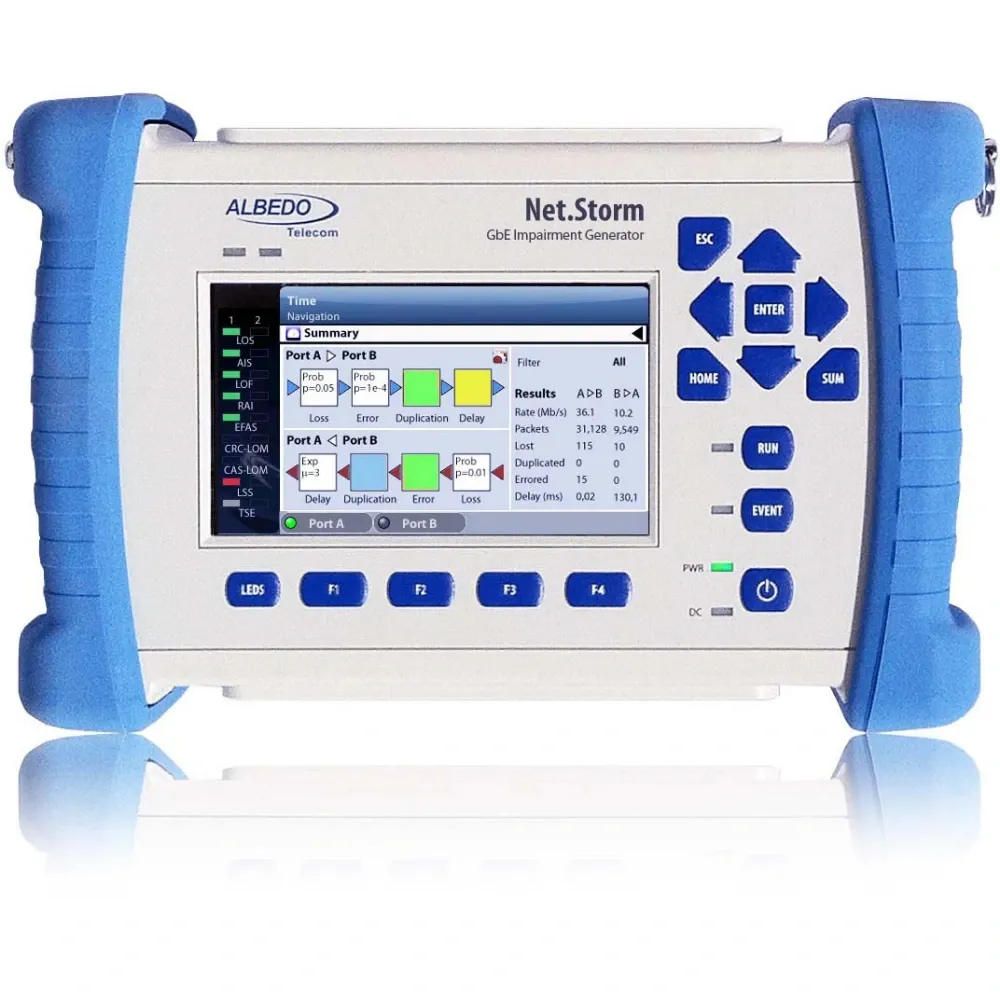

Albedo Telecom Ethernet/IP Impairment Generator Net.Storm

Albedo Telecom Ethernet/IP Impairment Generator Net.Storm

The ALBEDO Telecom Net.Storm is a portable, hardware-based Ethernet/IP impairment generator designed to emulate real-world network impairments in a controlled test environment. It enables engineers to evaluate the tolerance, quality, and performance of video, audio, and data applications by introducing configurable delay, delay variation, frame loss, frame duplication, and frame errors at the Ethernet layer. The platform supports dual electrical and optical Gigabit Ethernet test interfaces and provides independent impairment control for configured traffic flows.

The Net.Storm supports 10/100/1000BASE-T through dual RJ-45 ports and optical/electrical Ethernet through dual SFP ports up to 1 Gb/s. It provides configurable traffic filtering, bandwidth policing and shaping, IPv4/IPv6, TCP/UDP filtering, VLAN support, jumbo frames up to 10 kB MTU, and up to 16 simultaneous traffic flows for impairment generation. The handheld platform includes a touchscreen interface, remote control through VNC and SNMP, PDF result storage, dual-battery operation, and IP54 environmental protection.

Rp 0.00 Rp 0.00

Add to cart Buy now
Get a Quote ⟩
SpecificationsResources

Specifications

  • Product Type: Ethernet/IP Impairment Generator.
  • Primary Application: Controlled emulation and analysis of Ethernet/IP network impairments for development, laboratory, and operational network testing.
  • Ethernet Test Ports: 2 × RJ-45 electrical ports and 2 × SFP ports.
  • RJ-45 Interfaces: 10BASE-T, 100BASE-TX, and 1000BASE-T.
  • SFP Interfaces: 100BASE-FX, 1000BASE-SX, and 1000BASE-LX.
  • Maximum Test Rate: Up to 1 Gb/s.
  • Traffic Capacity: Up to 1,500,000 frames/s in each direction.
  • Ethernet Standards: IEEE 802.3 and IEEE 802.1Q VLAN.
  • IP Protocol: IPv4 according to IETF RFC 791.
  • Jumbo Frames: Up to 10 kB MTU.
  • Pass-through Delay: 43 µs typical intrinsic delay.
  • Traffic Filters: 1 background-traffic filter plus up to 15 configurable independent filters.
  • Filter Criteria: MAC address, EtherType/Length, VLAN ID, VLAN priority, IPv4/IPv6 address, protocol, DSCP, and TCP/UDP ports.
  • Bandwidth Policing: Configurable sustained rate from 0–100%, with token-bucket policing.
  • Bandwidth Shaping: Configurable sustained rate from 0–100%, with token-bucket shaping.
  • Impairments: Delay, delay variation, frame loss, frame duplication, and frame errors.
  • Impairment Processing Delay: Maximum additional processing time of 10 µs.
  • Configurable Added Delay: 1 µs minimum; deterministic delay up to 60 s.
  • Delay Variation Range: Minimum, maximum, and average delay configurable up to 60 ms.
  • Worst-Case Delay: Up to 20 ms under 1 Gb/s traffic load with 64-byte frames.
  • Frame Loss Probability: 0–99.99%.
  • Frame Duplication Probability: 0–99.99%.
  • Frame Error Probability: 0–99.99%.
  • Traffic Flows: Up to 16 simultaneous and independent impairment flows.
  • Statistics: Separate transmit/receive statistics, unicast/multicast/broadcast counters, FCS errors, and frame-size statistics.
  • Display: 4.3-inch TFT color touchscreen, 480 × 272 pixels.
  • Remote Control: VNC and SNMP.
  • Result Storage: PDF format with file transfer via USB and SD card.
  • System Interfaces: 2 × USB and 1 × RJ-45 management port.
  • Battery: Li-ion polymer; up to 10 hours operation with two battery packs.
  • Dimensions: 223 × 144 × 65 mm.
  • Weight: 1.0 kg with rubber boot and one battery pack.
  • Operating Temperature: −10°C to +50°C.
  • Storage Temperature: −20°C to +70°C.
  • Operating Humidity: 5–95% RH.
  • Environmental Protection: IP54.
  • Power / Base Configuration: Battery-operated handheld platform.
