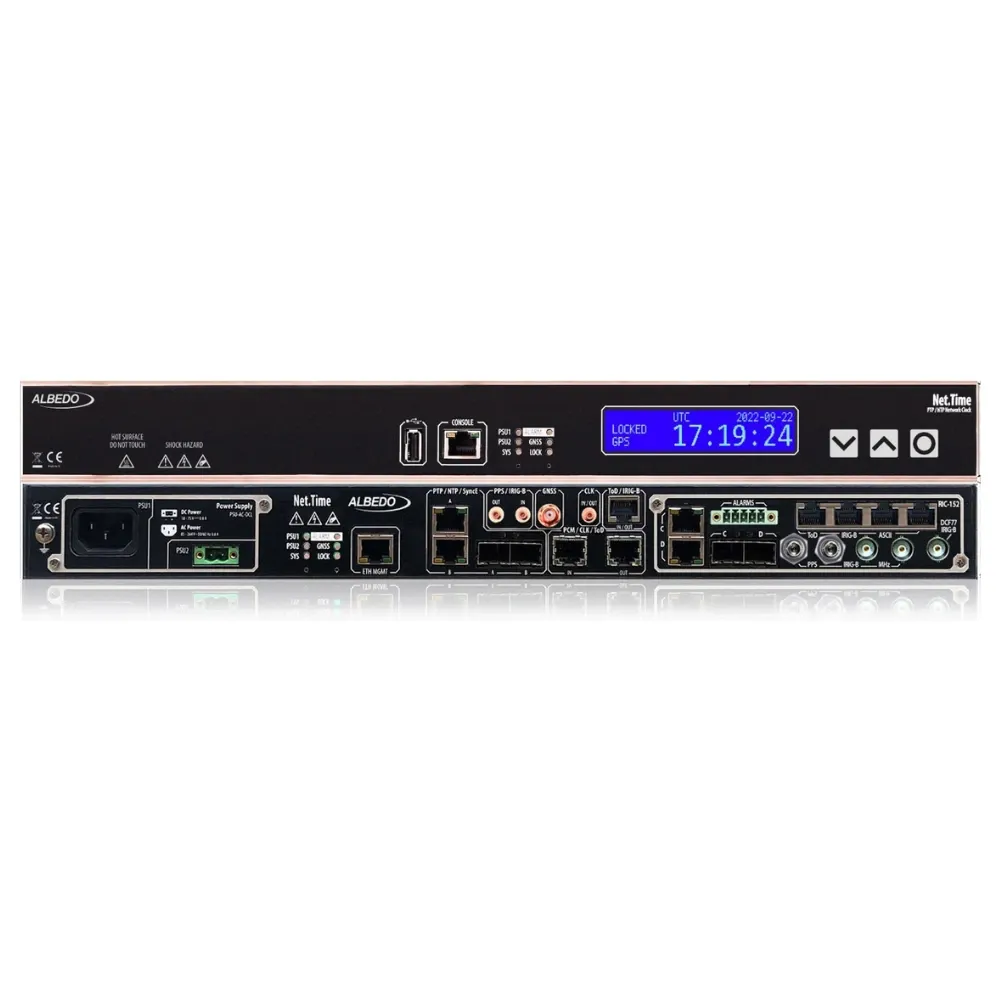

Albedo Telecom Substation Clock Net.Time φ

Albedo Telecom Substation Clock Net.Time φ

The ALBEDO Telecom Net.Time φ is a modular substation synchronization clock designed to provide accurate and reliable timing for power utility networks. It delivers PTP and NTP synchronization for IEC 61850 IEDs, while supporting IRIG-B, 1PPS, ToD, T1/E1, and frequency references for legacy equipment. The platform supports GNSS synchronization together with multiple backup and complementary clock references, enabling resilient timing distribution in substation environments.

The Net.Time φ provides dual electrical and optical Ethernet interfaces, modular clock-reference expansion, automatic reference switchover, and multiple oscillator options including TCXO, OCXO, OCXO HQ, Rubidium, and Rubidium HQ. It supports PTP profiles including IEEE 1588-2008, IEC 61850-9-3, IEEE C37.238, and ITU-T G.8265.1/G.8275.1/G.8275.2, together with NTP, SyncE, PRP, GNSS, and legacy timing interfaces. The 1U rack-mount platform is designed for operation in demanding substation environments and supports redundant power supply configurations.

Rp 0.00 Rp 0.00

Add to cart Buy now
Get a Quote ⟩
SpecificationsResources

Specifications

  • Product Type: Substation Synchronization Clock / Grandmaster Clock.
  • Primary Application: Power substations, IEC 61850 networks, telecom synchronization, and legacy timing infrastructure.
  • Synchronization Protocols: PTP, NTP, SNTP, SyncE, GNSS, ToD, IRIG-B, T1/E1, and frequency references.
  • Ethernet Interfaces: Dual electrical Ethernet and dual optical Ethernet interfaces.
  • Electrical Ethernet: 10BASE-T, 100BASE-TX, 1000BASE-T.
  • Optical Ethernet: 100BASE-FX, 1000BASE-SX, 1000BASE-LX, 1000BASE-ZX.
  • PTP Profiles: IEEE 1588-2008 Annex J, IEC 61850-9-3, IEEE C37.238-2011, IEEE C37.238-2017, ITU-T G.8265.1, G.8275.1, and G.8275.2.
  • PTP Capacity: Up to 1024 unicast users, up to 256 per port.
  • NTP: NTPv3, NTPv4, and SNTPv3; up to 500,000 transactions/s in server mode.
  • GNSS Interface: SMA, 50 Ω, with automatic antenna detection and cable-delay compensation.
  • GNSS Receiver: 72-channel single-band or 184-channel multi-band options.
  • GNSS Constellations: GPS, GLONASS, Galileo, BeiDou; NavIC supported with multi-band receiver.
  • Oscillator Options: TCXO, OCXO, OCXO HQ, Rubidium, and Rubidium HQ.
  • Frequency Accuracy: Down to 5.0 × 10⁻¹³ with multi-band GNSS and supported oscillator configurations.
  • RMS Phase Error: Down to ±5 ns with multi-band GNSS and Rubidium/Rubidium HQ configurations.
  • Holdover: Up to 3.2 days at ±1.0 µs and 12 days at ±10 µs, depending on oscillator configuration.
  • Legacy Timing Interfaces: IRIG-B, PPS, ToD, T1/E1, 1/1.544/2.048/5/10 MHz.
  • PRP: IEC 62439-3 Parallel Redundancy Protocol with PRP supervision and duplicate frame handling.
  • Management: Web application, CLI, SSH, Telnet, SNMPv2c/v3, Syslog, and USB firmware update.
  • Display: LCD STN blue, 192 × 32 pixels, with keyboard.
  • Form Factor: 1U, 19-inch rack-mount.
  • Dimensions: 44 × 228 × 435 mm.
  • Weight: 1.9 kg.
  • Power Supply: Redundant AC, DC, or AC/DC configurations.
  • AC Input: 100–240 VAC, 50–60 Hz.
  • DC Input: 18–75 VDC.
  • AC/DC Input: 85–264 VAC / 100–370 VDC.
  • Power Consumption: 10 W for T/OCXO models; 14 W for Rubidium models.
  • Operating Temperature: −40°C to +70°C.
  • Storage Temperature: −40°C to +85°C.
  • Humidity: 0–95% RH, non-condensing.
  • Altitude: <3000 m.
  • Environmental Protection: IP30.
  • Standards & Certifications: IEC 61850-3, IEEE 1613, IEC/EN 62368-1, RoHS, RED, and applicable EMC standards.
