Specifications
- Data Rate: Selectable 4.25 Gbps, 9.95–10.3 Gbps
- Reach: Up to 40 km over SMF
- Wavelength: 1530 – 1565 nm
- Transmitter: Cooled EML laser
- Receiver: PIN photodiode with TIA
- Average Output Power: –3 to +3 dBm
- Receiver Sensitivity: ≤ –14.1 dBm (OMA)
- Connector: LC Duplex, hot-pluggable SFP+
- Power Dissipation: <1.5 W
- Digital Diagnostics (DDM): Monitors temperature, voltage, Tx bias, Tx/Rx power
- Operating Temperature: –5°C to +70°C
- Compliance: IEEE 802.3ae, SFF-8413, SFF-8472, RoHS
Applications:
- 10GBASE-ER / 10GBASE-EW Ethernet (with or without FEC)
- 8.5G / 10G Fibre Channel
- Long-haul point-to-point optical networks
Ordering Informations
|
Part Number |
Product Description |
|

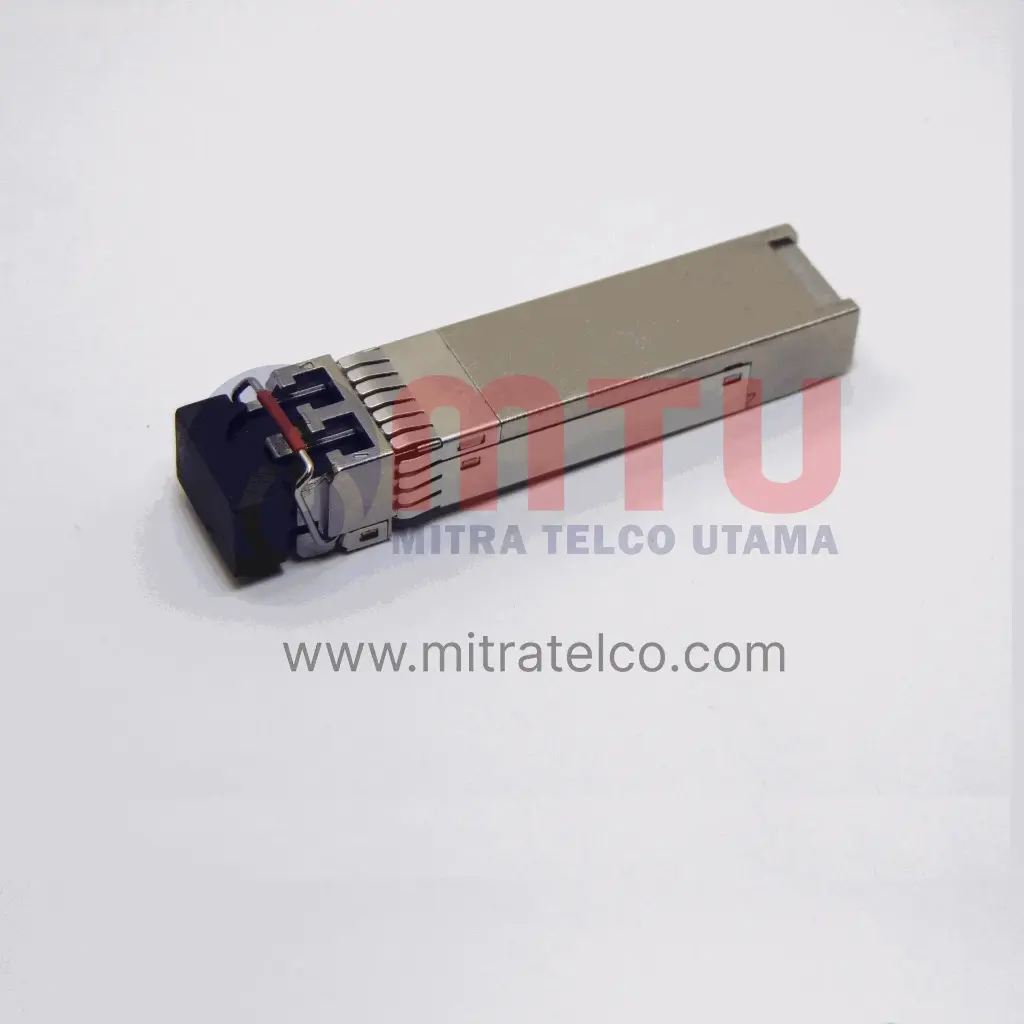

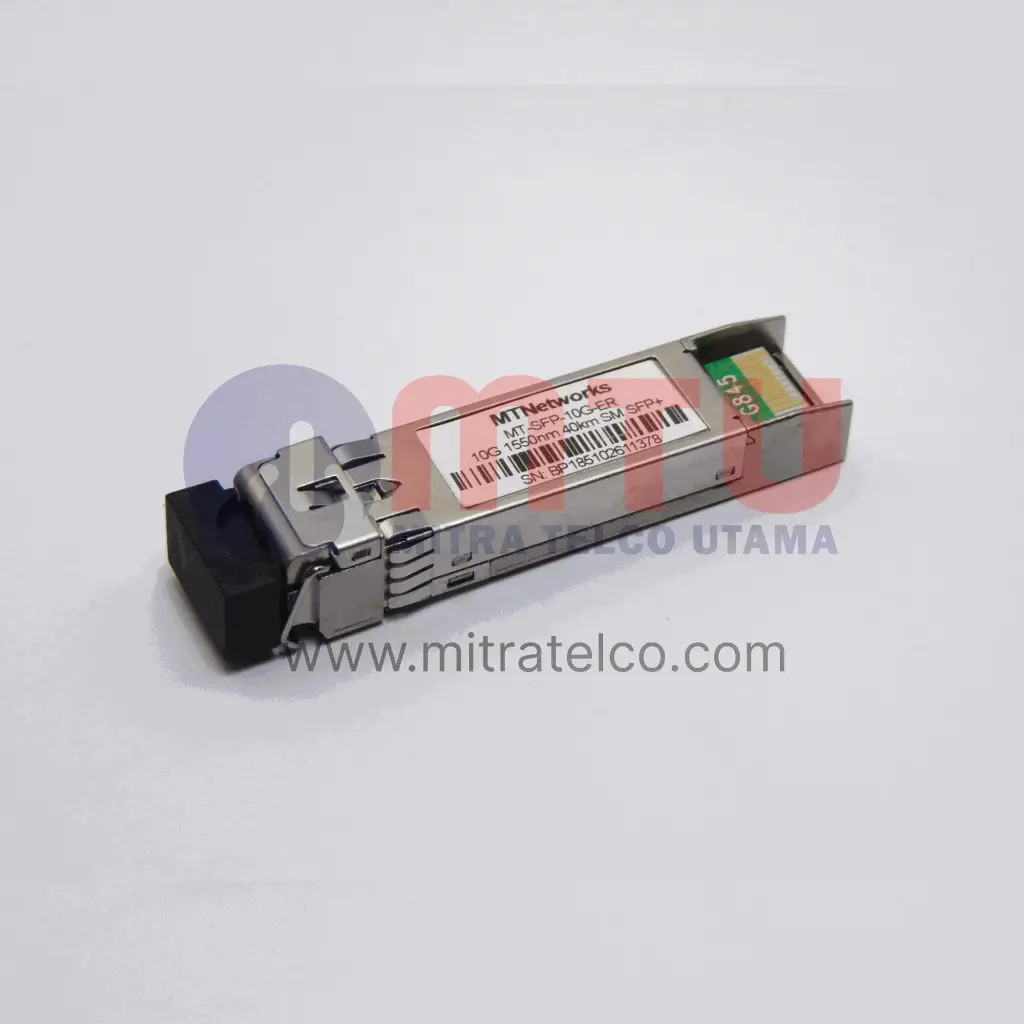

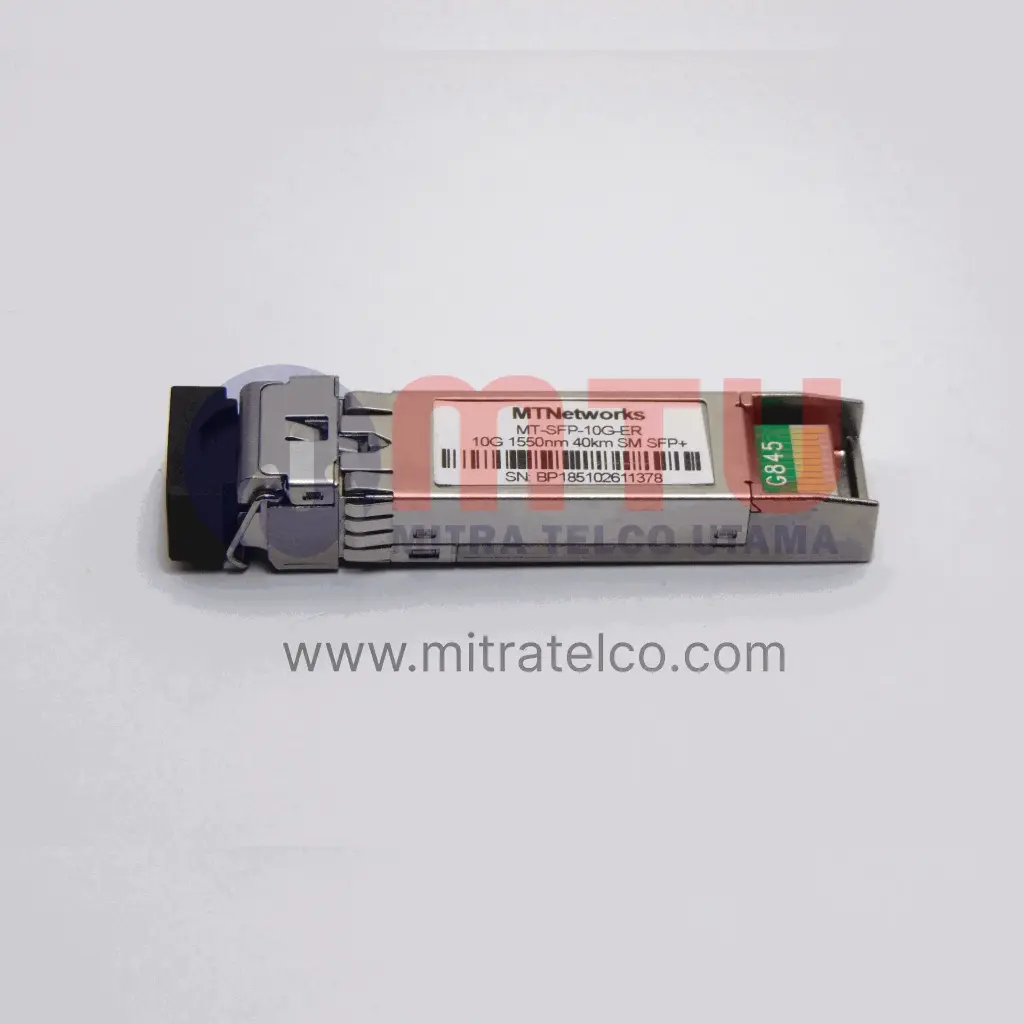

MT-SFP+-ER |
10Gbps, 1550nm SFP+ ER 40km, -5ºC ~ +70ºC |
