MTNetworks SFP+ BIDI ER 10G TX 1330nm/1270nm 40km

MTNetworks SFP+ BIDI ER 10G TX 1330nm/1270nm 40km

Name: MTNetworks SFP+ BIDI ER 10G TX 1330nm/1270nm 40km
Availability: InStock

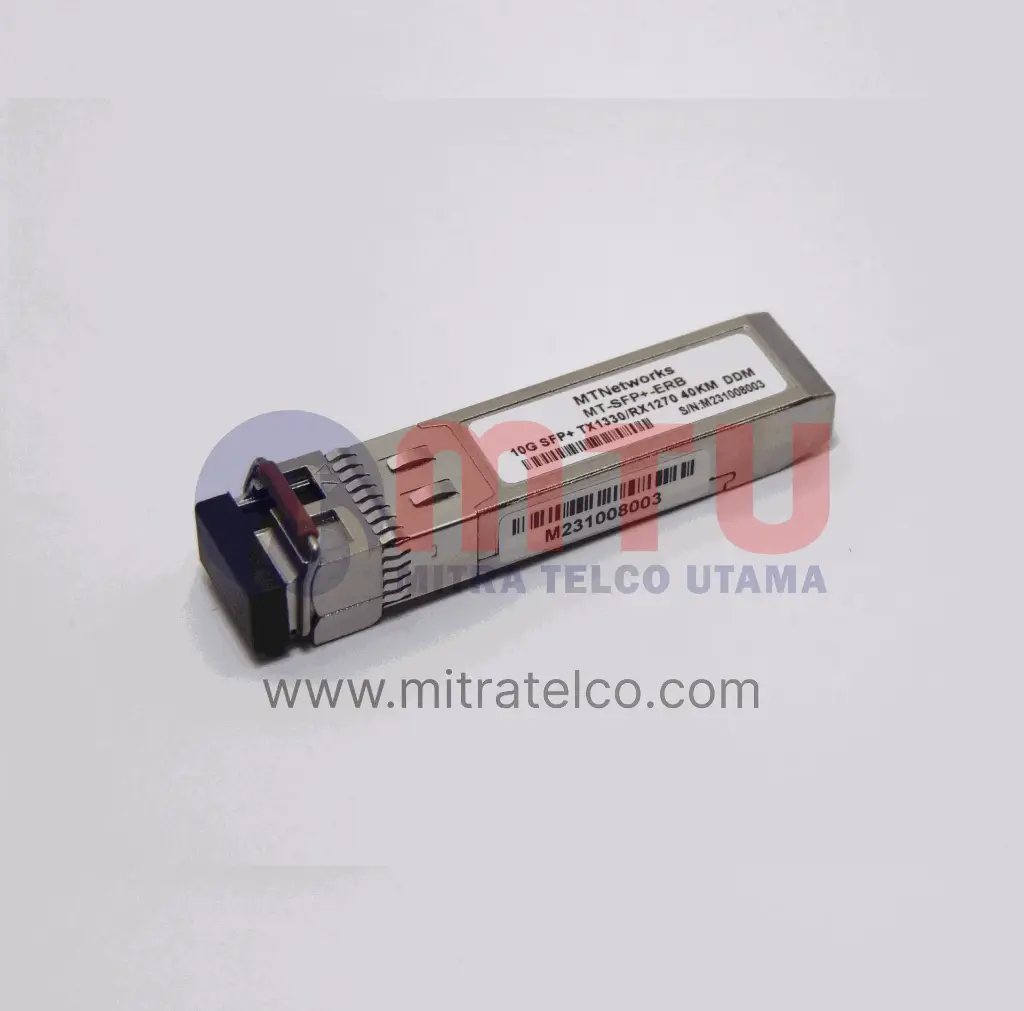

The MT-SFP+-ERAB is a high-performance 10Gbps Bi-Directional SFP+ optical transceiver designed for 40 km single-mode fiber (SMF) links. Operating on 1270 nm Tx / 1330 nm Rx (ERA) or 1330 nm Tx / 1270 nm Rx (ERB), it is ideal for 10GbE, SONET/SDH, and Fibre Channel applications. Fully compliant with SFF-8431, it offers low power consumption, robust EMI shielding, and supports digital diagnostics monitoring (DDM).

This combination does not exist.

Specifications

Data Rate: Up to 10.7 Gbps
Reach: 40 km over SMF
Wavelength: 1270/1330 nm (BiDi)
Average Output Power: –8.2 to +0.5 dBm
Receiver Sensitivity: ≤ –13 dBm
Connector: LC simplex, hot-pluggable
Power Consumption: ≤ 1.5 W
Operating Temperature: 0°C to +70°C
Digital Diagnostics (DDM): Temp, Voltage, Tx Bias, Tx Power, Rx Power
Compliance: SFF-8431, RoHS, Class 1 Laser

Applications:

10GbE (10GBASE-ER)
10G/8G/4G/2G/1G Fibre Channel
SONET OC-192 / SDH STM-64
Long-distance BiDi optical links

Ordering Informations

Part Number	Product Description
MT-SFP+-ERA	10Gbps, 1270nm/1330nm SFP+ ER 40km, 0ºC ~ +70ºC
MT-SFP+-ERB	10Gbps, 1330nm/1270nm SFP+ ER 40km, 0ºC ~ +70ºC

Resources

MTNetworks SFP+ BIDI ER 10G TX 1330nm/1270nm 40km Datasheet
