Specifications
- Data Rate: Up to 10.7 Gbps
- Reach: 20 km over SMF
- Wavelength: 1270/1330 nm (BiDi)
- Average Output Power: –8.2 to +0.5 dBm
- Receiver Sensitivity: ≤ –13 dBm
- Connector: LC simplex, hot-pluggable
- Power Consumption: ≤ 1.5 W
- Operating Temperature: 0°C to +70°C
- Digital Diagnostics (DDM): Temp, Voltage, Tx Bias, Tx Power, Rx Power
- Compliance: SFF-8431, RoHS, Class 1 Laser
Applications:
- 10GbE (10GBASE-LR, LAN/WAN)
- 10G/8G/4G/2G/1G Fibre Channel
- SONET OC-192 / SDH STM-64
- High-speed BiDi optical links
Ordering Informations
|
Part Number |
Product Description |
|
MT-SFP+-LRA |
10Gbps, 1270nm/1330nm SFP+ LR 20km, 0ºC ~ +70ºC |
|

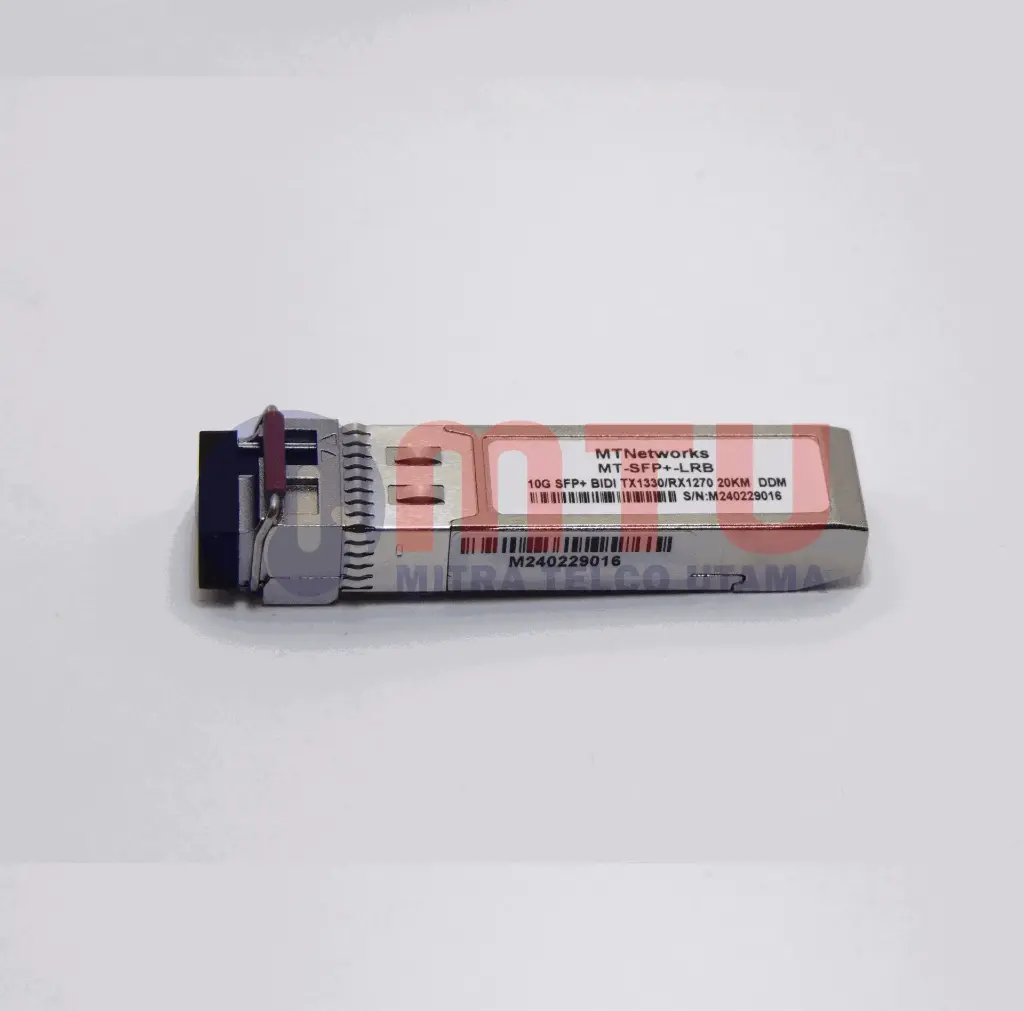

MT-SFP+-LRB |
10Gbps, 1330nm/1270nm SFP+ LR 20km, 0ºC ~ +70ºC |
