Specifications
- Splice Method: Cladding alignment
- Splice Time: Approx. 7 seconds
- Heating Time: Approx. 18 seconds
- Fiber Types: SM, MM, DS, NZDS
- Display: 4.3" color LCD with touch panel and dual-camera monitoring
- Battery Capacity: Up to 200 splice & heat cycles per charge
- Electrode Life: Up to 5,500 splices
- Sleeve Lengths Supported: 20 mm, 40 mm, 60 mm
- Weight: Approx. 1.85 kg (with battery)
- Ruggedness: Dustproof, shockproof, and weather-resistant design
Packing List

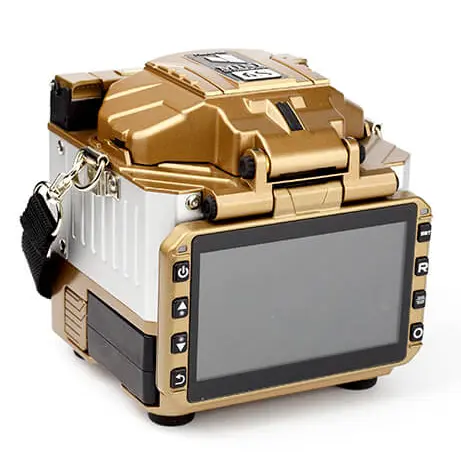

- Body FiberFox Fusion Splicer 6S
- Battery 11,1V
- Charger
- Optical Cutting Plier
- Optical Fiber Cleaver Fiber Fox Mini 50G
- Hard Case
- Cable Data
