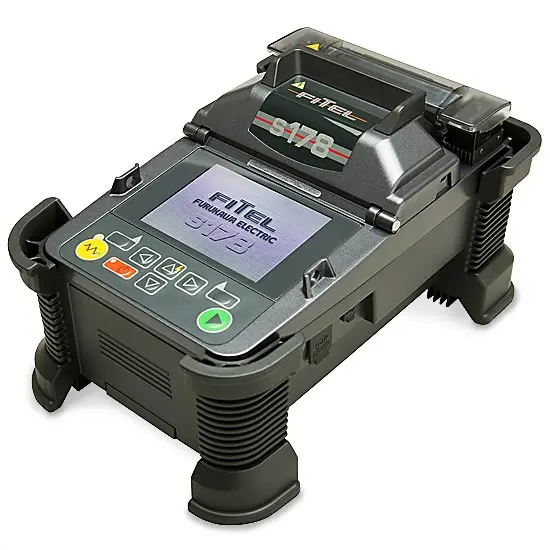

Furukawa Fusion Splicer S178

Name: Furukawa Fusion Splicer S178
Availability: InStock

The Furukawa S178 is a rugged, high-speed core alignment fusion splicer designed for precise fiber splicing in FTTx, backbone, and metro network installations. Featuring fast splice cycles and advanced environmental protection, the S178 ensures reliable operation even in harsh field conditions.

This combination does not exist.

Specifications

Splice Method: Core alignment
Splice Time: Approx. 7 seconds
Heating Time: Approx. 25 seconds
Fiber Types: SM, MM, DS, NZDS
Display: 4.3" color LCD with dual-camera fiber monitoring
Battery Capacity: Up to 200 splice & heat cycles per charge
Electrode Life: Approx. 5,000 splices
Protection Sleeve Sizes: 40 mm, 60 mm
Ruggedness: Dustproof, water-resistant, and shock-resistant (drop-tested)
Weight: Approx. 2.3 kg (with battery)

Packing List

Body Fittel Fusion Splicer S178
Battery Pack 11,1V 2600mAh 2 Pcs (Included)
Charger 16V
Optical Cutting Plier
Optical Fiber Cleaver
Hard Case

Resources

Furukawa Fusion Splicer S178 Datasheet
