Specifications
Primary Application: Cable & antenna analysis with integrated spectrum analyzer
Frequency Range (C&A): 2 MHz to 4.0 GHz
Frequency Range (Spectrum): 9 kHz to 4.0 GHz
Core Measurements: Return Loss, VSWR, Cable Loss, Distance-to-Fault (DTF), Phase
DTF Capability: Built-in fault location using FDR technique
2-Port Transmission Test: Optional high/low power transmission measurement
Spectrum Functions: Channel Power, Occupied Bandwidth, ACPR, C/I
Interference Analysis: Spectrogram, RSSI, Signal ID, on-screen interference mapping (optional)
Dynamic Range (Spectrum): > 95 dB (10 Hz RBW)
DANL: –152 dBm (10 Hz RBW)
Display: 8.4-inch daylight-viewable color touchscreen
Measurement Speed: Up to 1 ms/data point (typical)
Battery Operation: ≈ 3.5 hours (typical)
Data Storage: Up to 2000 traces internally
Connectivity: USB, optional Ethernet (Option 413)
Calibration Methods: OSL, InstaCal™, FlexCal™
Design: Rugged handheld, IP51-rated, outdoor-ready
Packing List

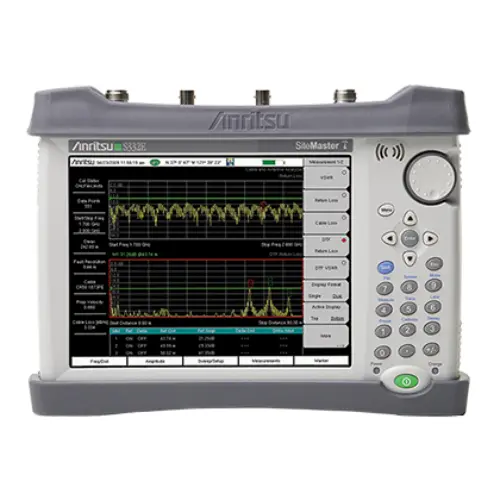

- Body Anritsu Site Master S332E + Battery Pack
- Charger 12V
- Soft Case (Bag)
- Stylus with Coiled Tether
- Cable Test Port 1.5m
- Calibration Kit/OSL
- Termination Load 2W
- Cable Data (USB A/5-pin mini-B Cable, 10 ft)
- Connector Adapter: NM-DINF NF-DINF NF-NF
