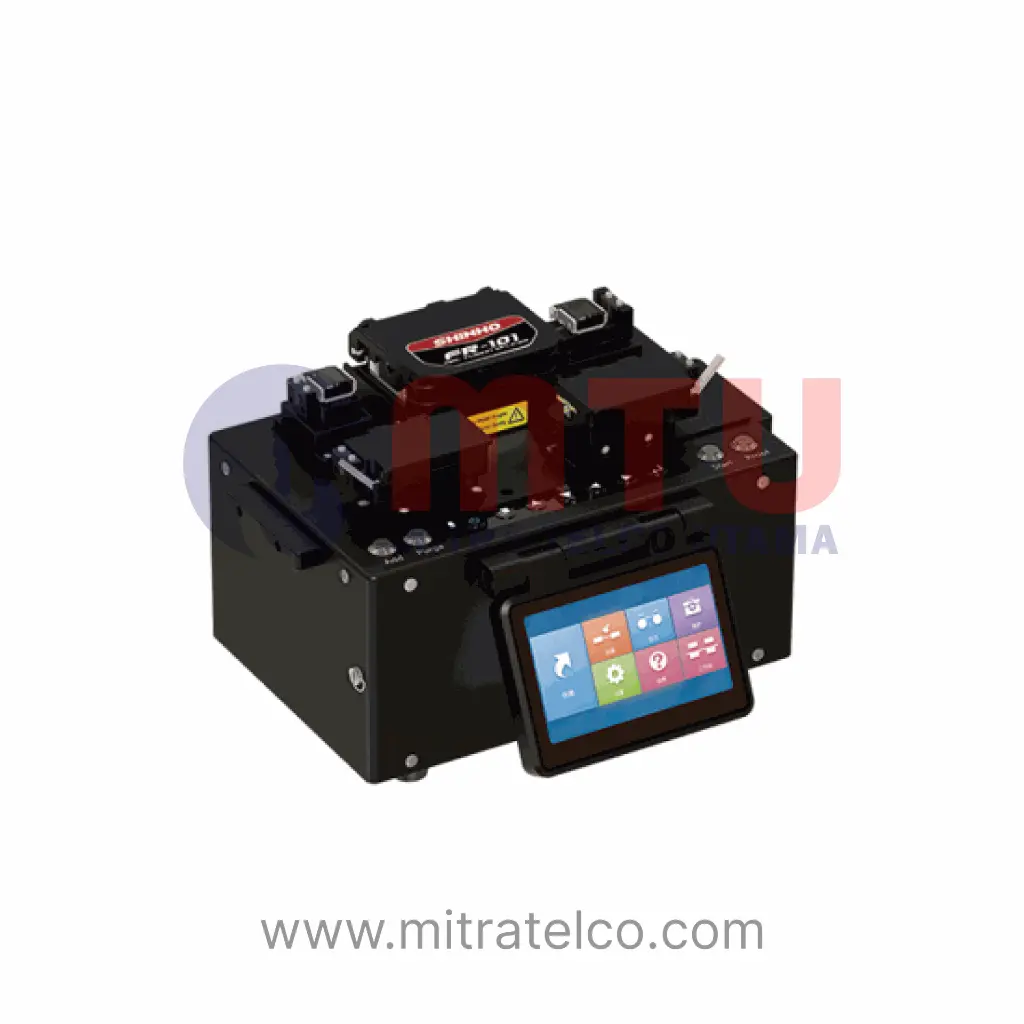

SHINHO FR-100 Optical Fiber Recoater

Specification

• Supports recoating for single fibers with diameters of 195 μm to 1000 μm
• Quartz glass molds with fast exchange capability
• Automatic resin injection for consistent recoat performance
• UV curing LEDs with long lifetime, curing time as fast as 4 s (DSM950-200)
• Recoat length: 4–50 mm, accuracy ±20%
• 50 coating modes and 40 proof-test modes
• Proof-test range: 0.2–2.0 kgf (FR-101 model)
• Data storage: up to 2000 records
• Display/Control: Programmable curing position & time
• Dimensions/Weight:
  – FR-100: 250 × 170 × 176 mm / 4.3 kg
  – FR-101: 250 × 170 × 170 mm / 4.8 kg
• Operating conditions: 10°C to 30°C; up to 5000 m altitude; 0–95% RH (non-condensing)
• Power supply via AC adapter (100–240 V)

Applications:

• Optical fiber recoating for splicing preparation
• Fiber proof testing (with FR-101)
• Telecom, CATV, and specialty fiber production
• Laboratory and R&D environments

Packing List

•  Main unit FR-100/FR-101
• Quartz mold (280 μm standard)
• Resin tube
• AC adapter
• power cord
• USB manual
• toolkit (Hex wrenches),
• protective packaging

Optional Molds:

Available in 195 μm, 255 μm, 280 μm, 320 μm, 450 μm, 600 μm, 670 μm, 850 μm, and 1000 μm diameters.
